YU62L-MDB3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 55084C 55084C 55863D 55863D 9011906258 9011906258
Part # Description Qty Price
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-95400

WU90..RHD..GEN;YU6#,71,81..GEN

W(FOOT VENTILATOR)

 1
55084-95400

WU90..RHD..GEN;YU6#,71,81..GEN

 2
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-95400

WU90..RHD..GEN;YU6#,71,81..GEN

W(FOOT VENTILATOR)

 1
55084-95400

WU90..RHD..GEN;YU6#,71,81..GEN

 2
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

WU90..RHD..GEN;YU6#,71,81..GEN

 2
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

WU90..RHD..GEN;YU6#,71,81..GEN

 2
Common parts
90119-06258

(8708- )LHD

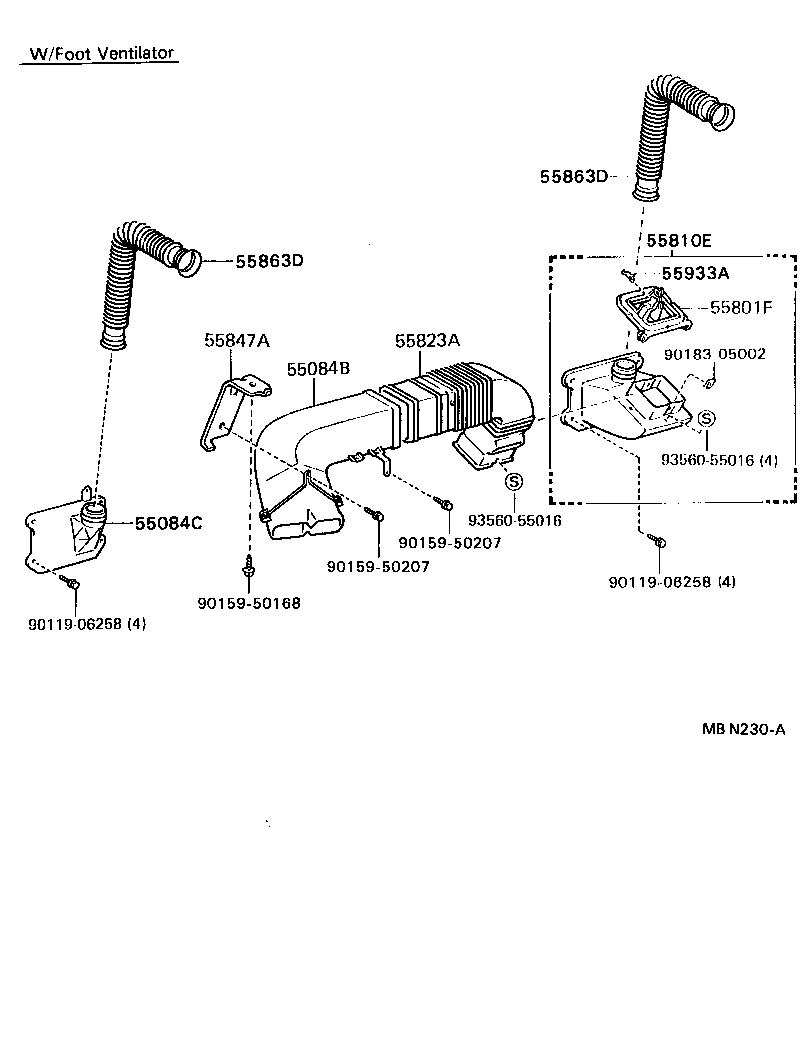

Click highlighted areas on diagram

diagram 55084B 55084C 55801F 55810E 55823A 55847A 55863D 55863D 55933A 9011906258 9011906258 9015950168 9015950207 9015950207 9018305002 9356055016 9356055016
Part # Description Qty Price
55084B - DUCT SUB-ASSY, SIDE VENTILATOR
55084-95402

YU6#,71,81..LHD

 1
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-95400

WU90..RHD..GEN;YU6#,71,81..GEN

W(FOOT VENTILATOR)

 1
55084-95400

WU90..RHD..GEN;YU6#,71,81..GEN

 2
55801F - DUMPER SUB-ASSY, FRONT VENTILATOR
55801-95406

RU85,WU9#,YU6#,71,81..GEN

 1
55810E - VENTILATOR ASSY, FRONT
55810-95403

RU85,WU9#,YU6#,71,81..GEN

 1
55823A - DUCT, FRONT SIDE VENTILATOR
55823-95401

YU6#,71,81..LHD

 1
55847A - BRACKET, SIDE VENTILATOR DUCT
55847-95402

RU85,WU9#,YU6#,71,81..GEN

 1
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

WU90..RHD..GEN;YU6#,71,81..GEN

 2
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

WU90..RHD..GEN;YU6#,71,81..GEN

 2
55933A - CLAMP, HEATER CONTROL CABLE
55933-22020

RU85,WU9#,YU6#,71,81..GEN

 1
Common parts
90119-06258
90159-50168
90159-50207
90183-05002
93560-55016
