YU62L-MDB3 (1987)
Toyota Dyna 200
Production
Aug 1987
-
Aug 1988
Engine
4Y
Transmission
LHD 5F
Displacement
2500cc
Power
168 HP (125 kW)

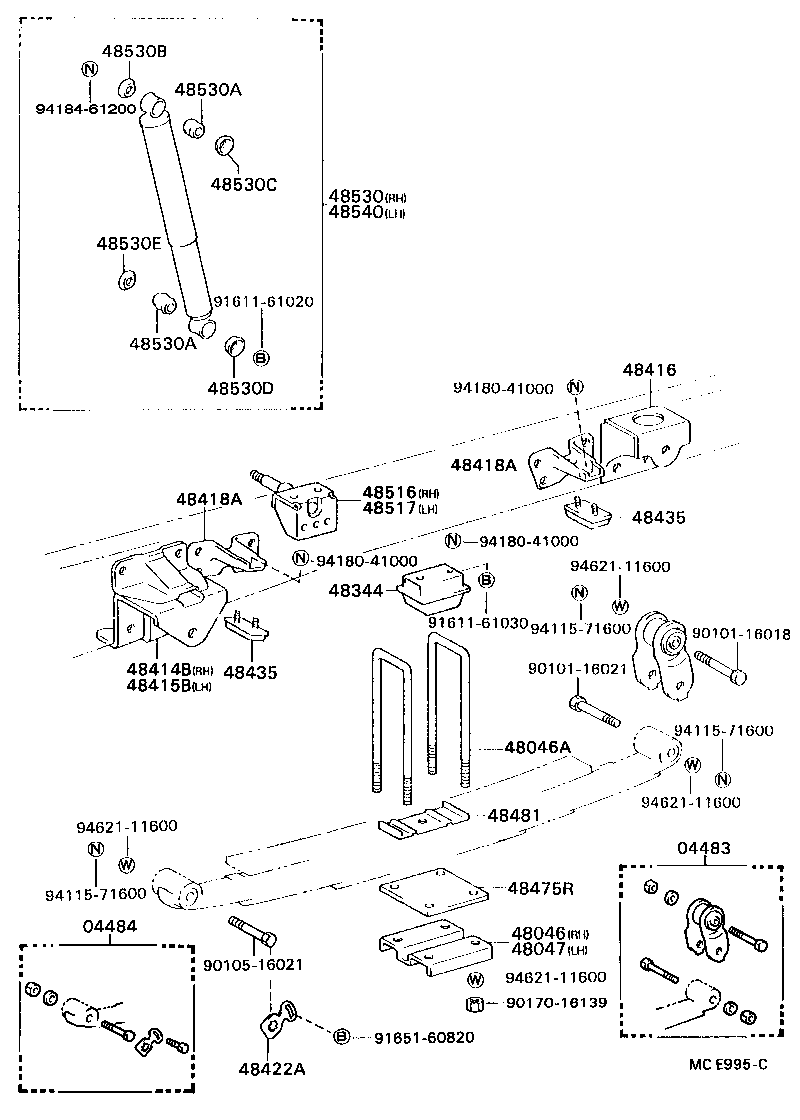

ILLUST NO. 1 OF 2(8708- )ST
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36060 |
YU63;YU62,71..ST |
1 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36040 |
YU63;YU62,71..ST |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36090 |
YU62,71..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16122 |
YU62,71..ST L=215 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-36090 |
YU62,71..ST |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU63;YU62,71..ST |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU63;YU62,71..ST |
4 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48343-36040 |
YU62,71..ST |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36150 |
YU62..ST |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36230 |
YU62,71..ST |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-36070 |
YU62,71..ST |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36270 |
YU62,71..ST |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
YU63;YU62,71..ST |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
YU62,71..ST |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
YU62,71,81 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-36050 |
YU62,71..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48516-36050 |
YU62,71..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39715 |
YU62,71..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
RU85,WU9#,YU6#,71,81 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
RU85,WU9#,YU6#,71,81 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
YU62,71..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
YU62,71..ST |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
YU62..ST;RU85,YU63,71 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39715 |
YU62,71..ST |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-36020 |
YU62,71..ST |
2 | ||
| Common parts | ||||
| 61611-61020 | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90170-16139 | ||||
| 91611-60825 | ||||
| 94115-71600 | ||||
| 94180-40800 | ||||
| 94184-61200 | ||||
| 94184-61600 | ||||
| 94621-11600 | ||||
ILLUST NO. 1 OF 2(8708- )RU85,YU62,81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36060 |
YU63;YU62,71..ST |
1 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36040 |
YU63;YU62,71..ST |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36090 |
YU62,71..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16122 |
YU62,71..ST L=215 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-36090 |
YU62,71..ST |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36150 |
YU62..ST |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36230 |
YU62,71..ST |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-36070 |
YU62,71..ST |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36270 |
YU62,71..ST |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
YU63;YU62,71..ST |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
YU62,71..ST |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
YU62,71,81 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-36050 |
YU62,71..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48516-36050 |
YU62,71..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39715 |
YU62,71..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
RU85,WU9#,YU6#,71,81 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
RU85,WU9#,YU6#,71,81 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
YU62,71..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
YU62,71..ST |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
YU62..ST;RU85,YU63,71 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39715 |
YU62,71..ST |
1 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 91611-61030 | ||||
| 91651-60820 | ||||
| 94115-71600 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94612-11600 | ||||
| 94621-11600 | ||||

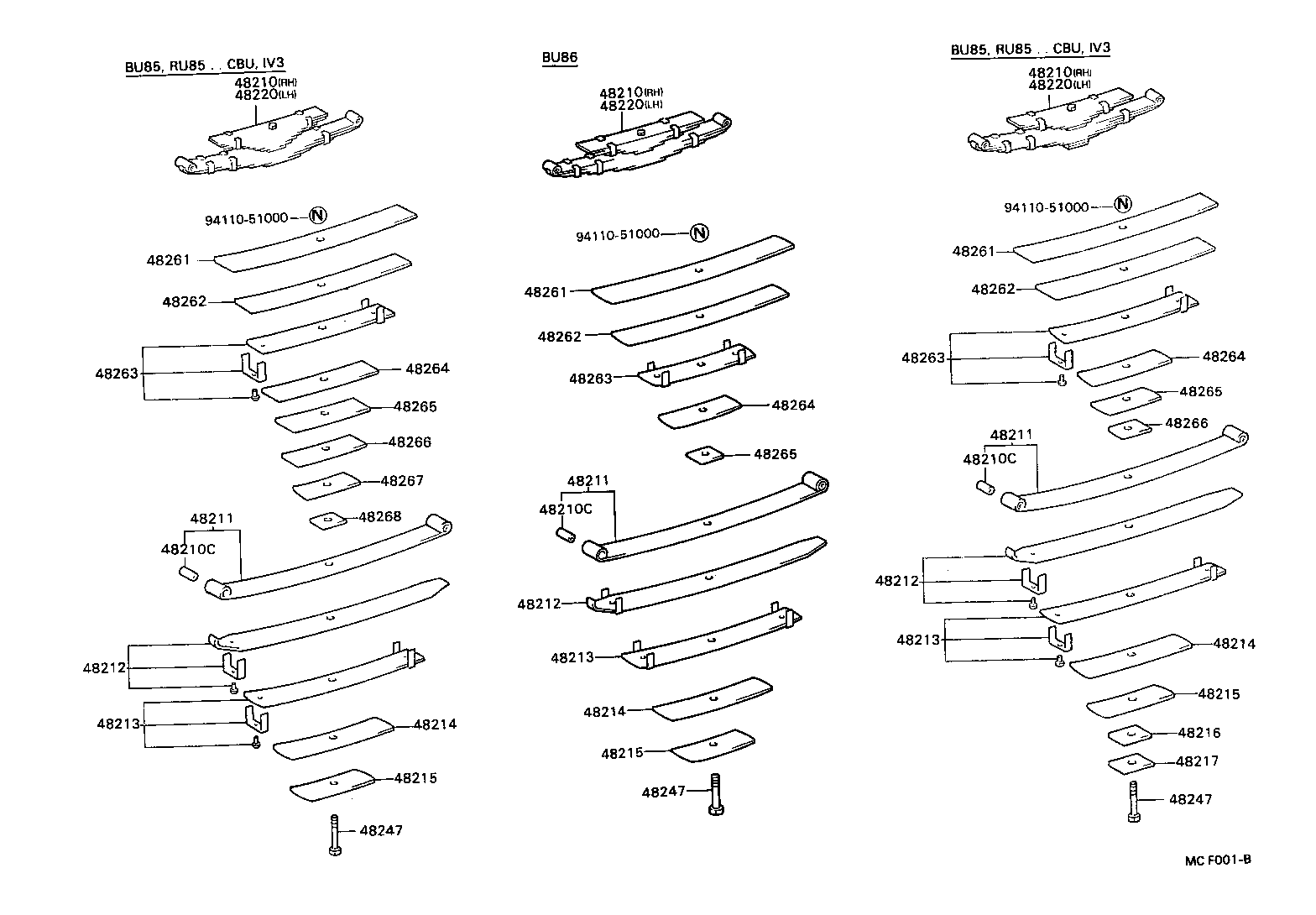

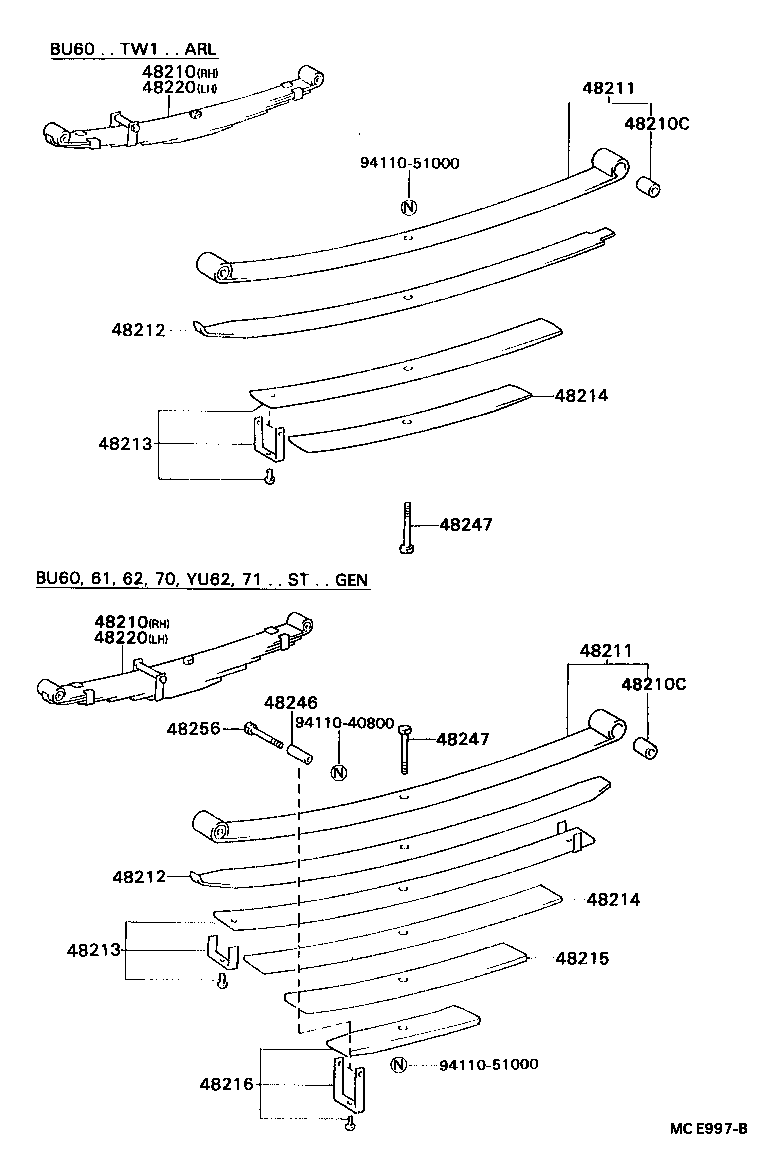

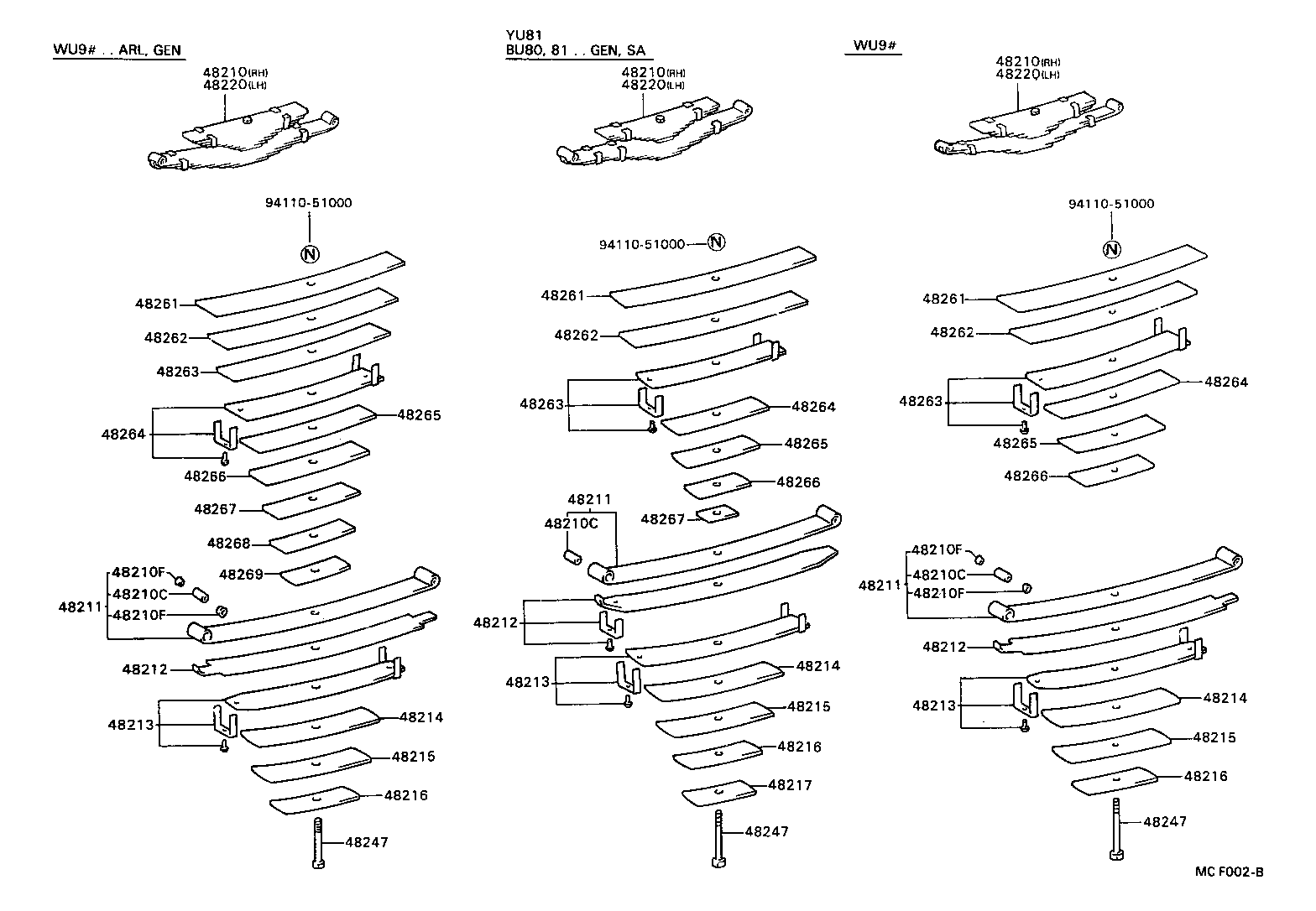

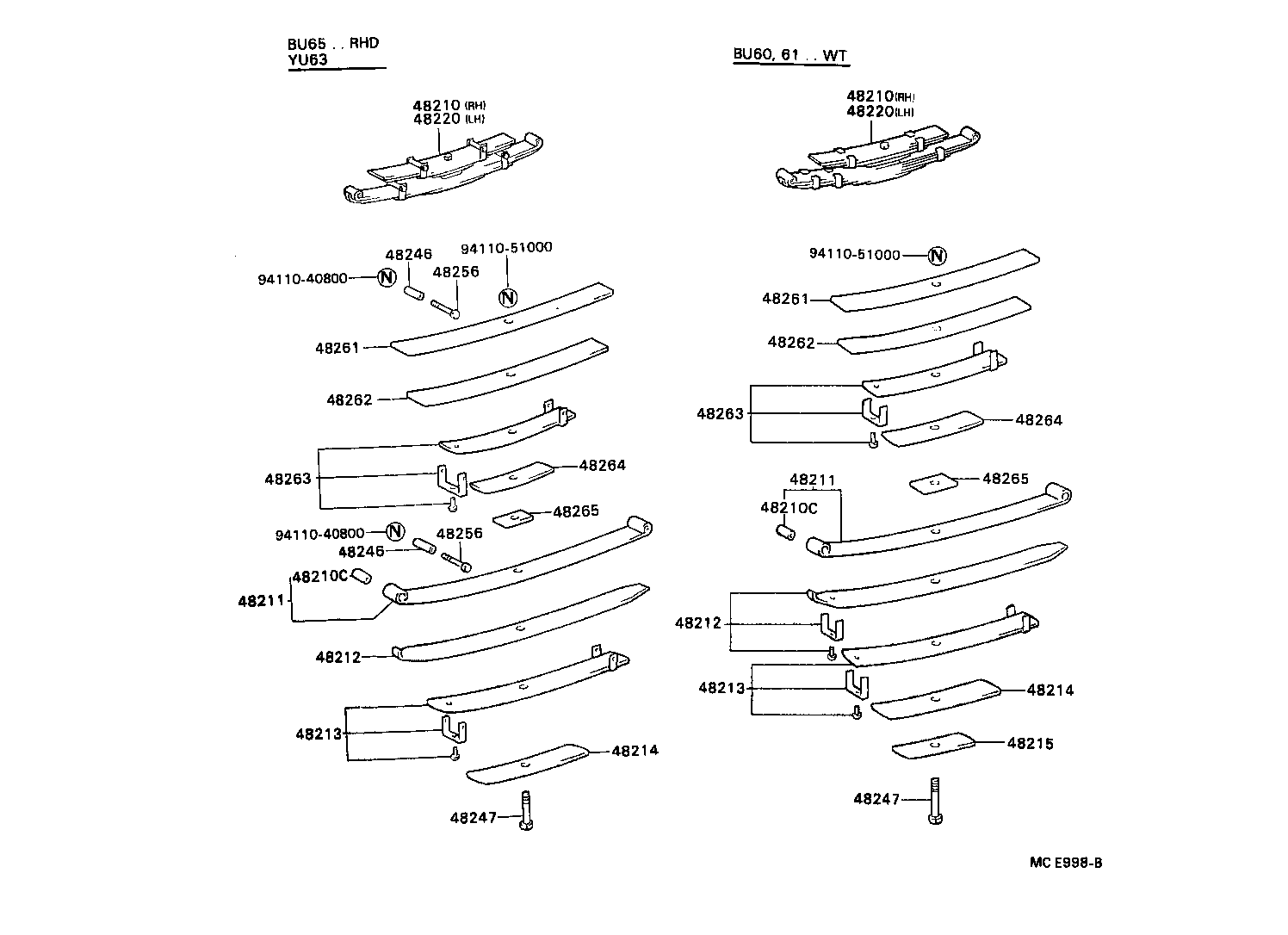

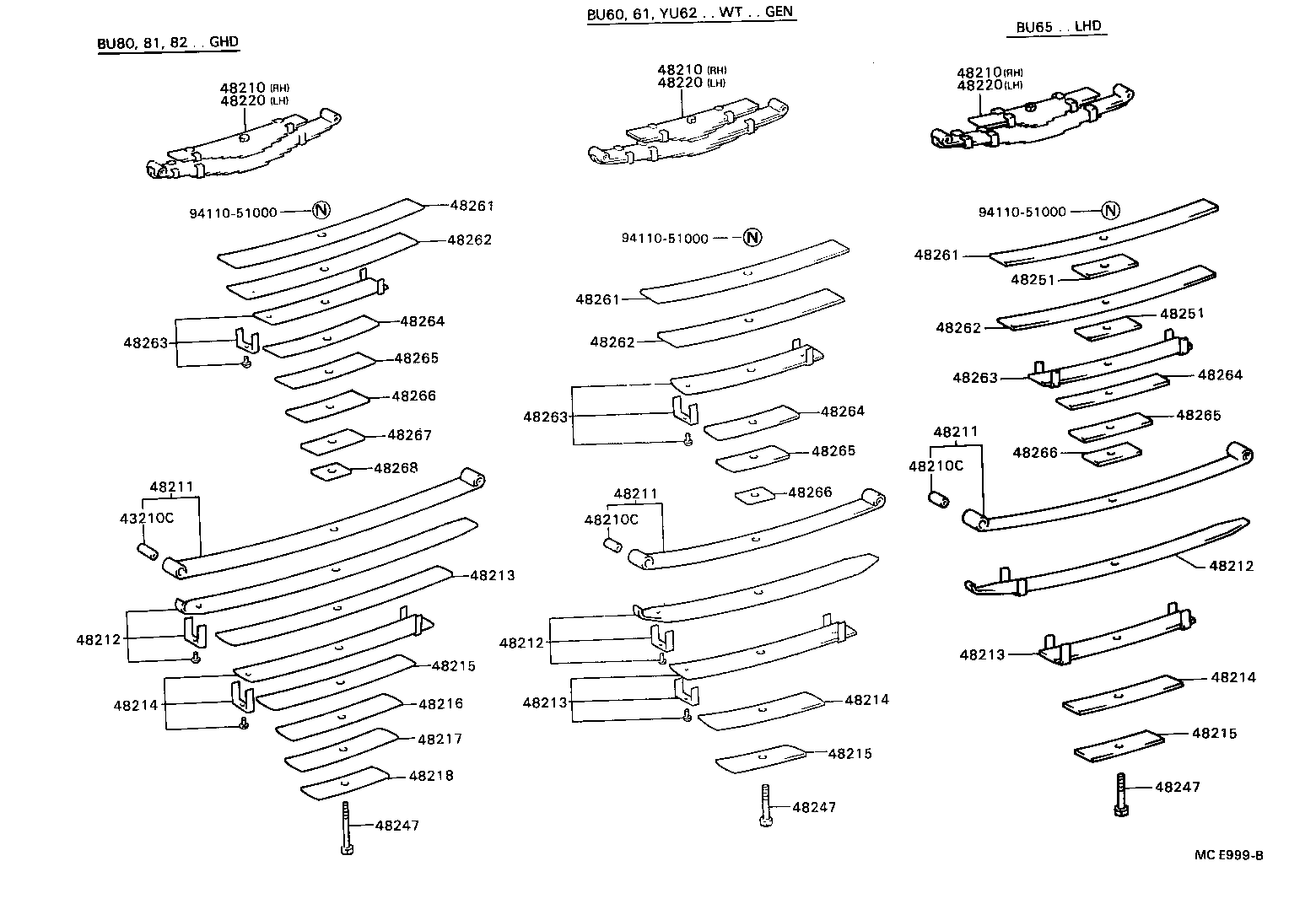

ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B190 |
YU62..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU62,71..ST |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
YU62,71..ST |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU62,71..ST |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU62,71..ST |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B190 |
YU62..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B190 |
YU62..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU63;YU62..ST |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B190 |
YU62..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B190 |
YU62..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B190 |
YU62..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B190 |
YU62..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B190 |
YU62..ST 6-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU62,71..ST |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
