YU62L-MDB3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

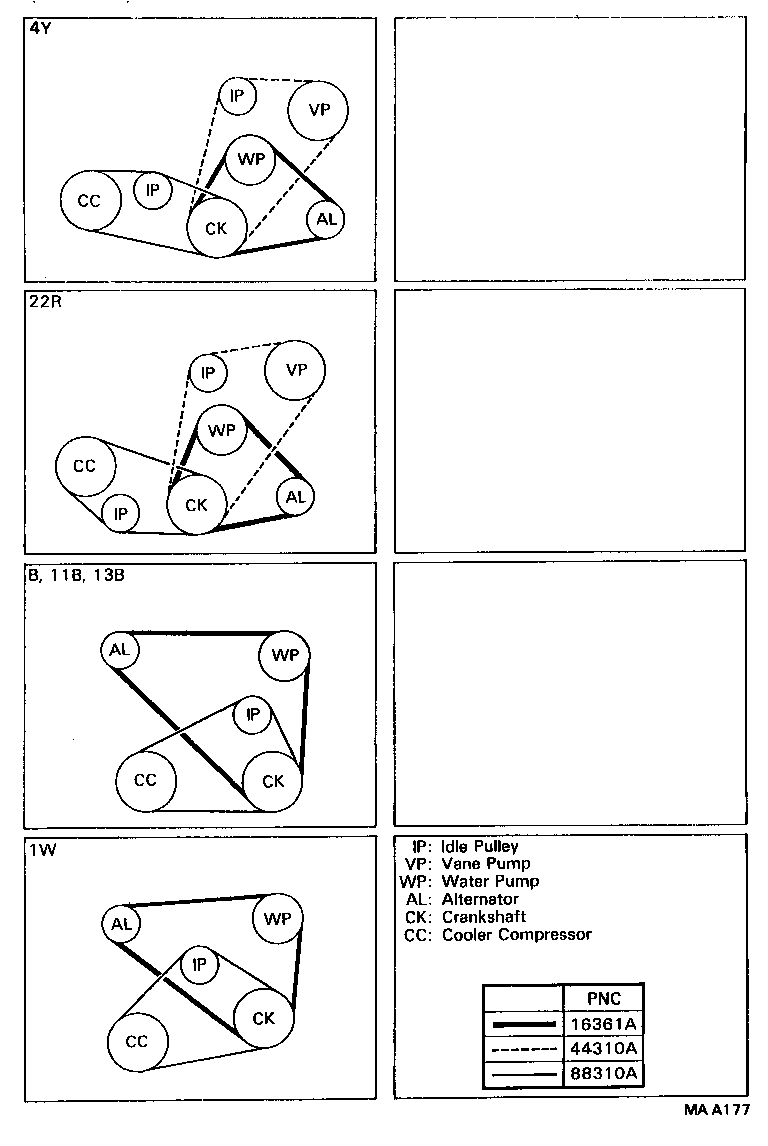

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-50830

4Y..YU6#,71,81

 1
44310A - BELT, V(FOR VANE PUMP)
99342-01115

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00910

YU6#,71,81..GEN

 1
