YU62L-MDB3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

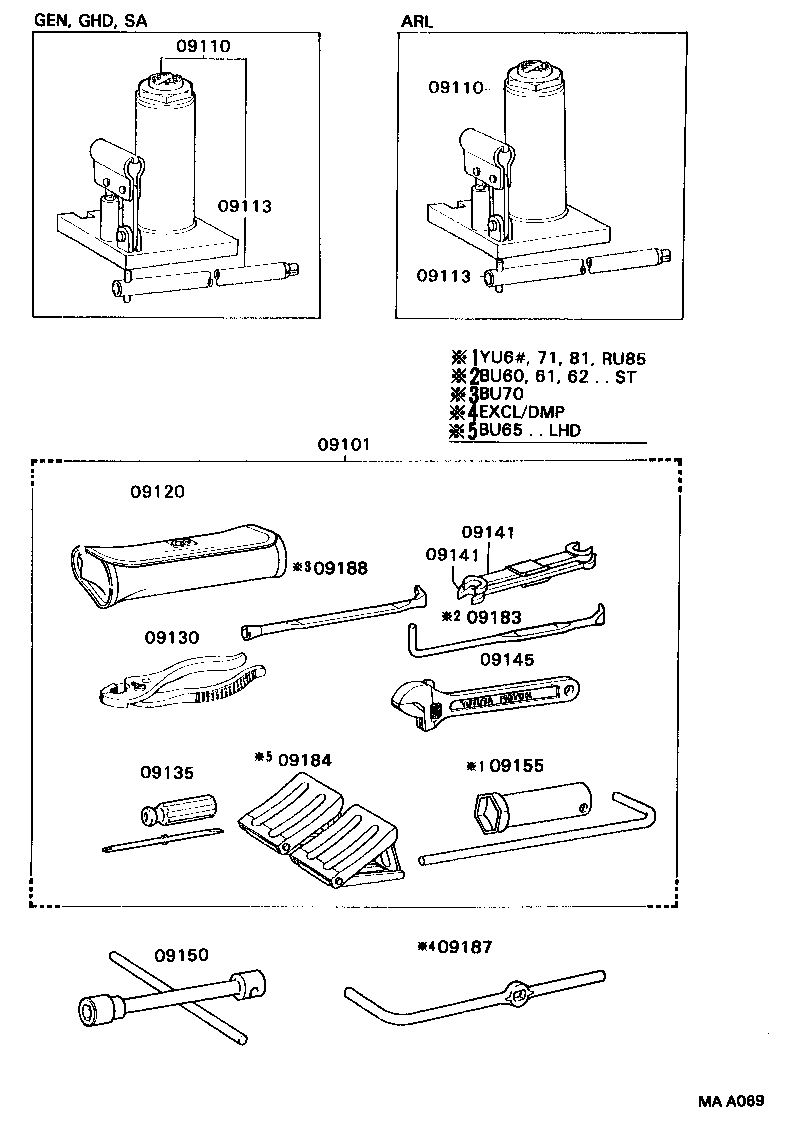

Click highlighted areas on diagram

diagram 09101 09110 09110 09113 09113 09120 09130 09135 09141 09141 09145 09150 09155 09183 09184 09187 09188
Part # Description Qty Price
09110 - JACK ASSY
09110-36160

YU62,71..ST

 1
09110 - JACK ASSY
09110-36160

YU62,71..ST

 1
09113 - HANDLE, JACK
09113-36060

YU62,71

 1
09113 - HANDLE, JACK
09113-36060

YU62,71

 1
09120 - BAG, TOOL
09120-26021

YU6#,71,81

 1
09130 - PLIERS
99913-11500

RU85,WU9#,YU6#,71,81

 1
09135 - DRIVER, SCREW
99915-10700

RU85,WU9#,YU6#,71,81

 1
09141 - SPANNER
99914-11012

RU85,WU9#,YU6#,71,81

10 X 12

 1
99914-11417

RU85,WU9#,YU6#,71,81

14 X 17

 1
09141 - SPANNER
99914-11012

RU85,WU9#,YU6#,71,81

10 X 12

 1
99914-11417

RU85,WU9#,YU6#,71,81

14 X 17

 1
09145 - WRENCH, MONKEY
99911-11200

RU85,WU9#,YU6#,71,81

 1
09150 - WRENCH, HUB NUT BOX
09150-25020

YU62,71..ST

 1
09155 - WRENCH, SPARK PLUG
09155-41010

YU6#,71,81

 1
09187 - HANDLE, SPARE WHEEL CARRIER
09187-36070

RU85,WU9#,YU62,71,81

 1
