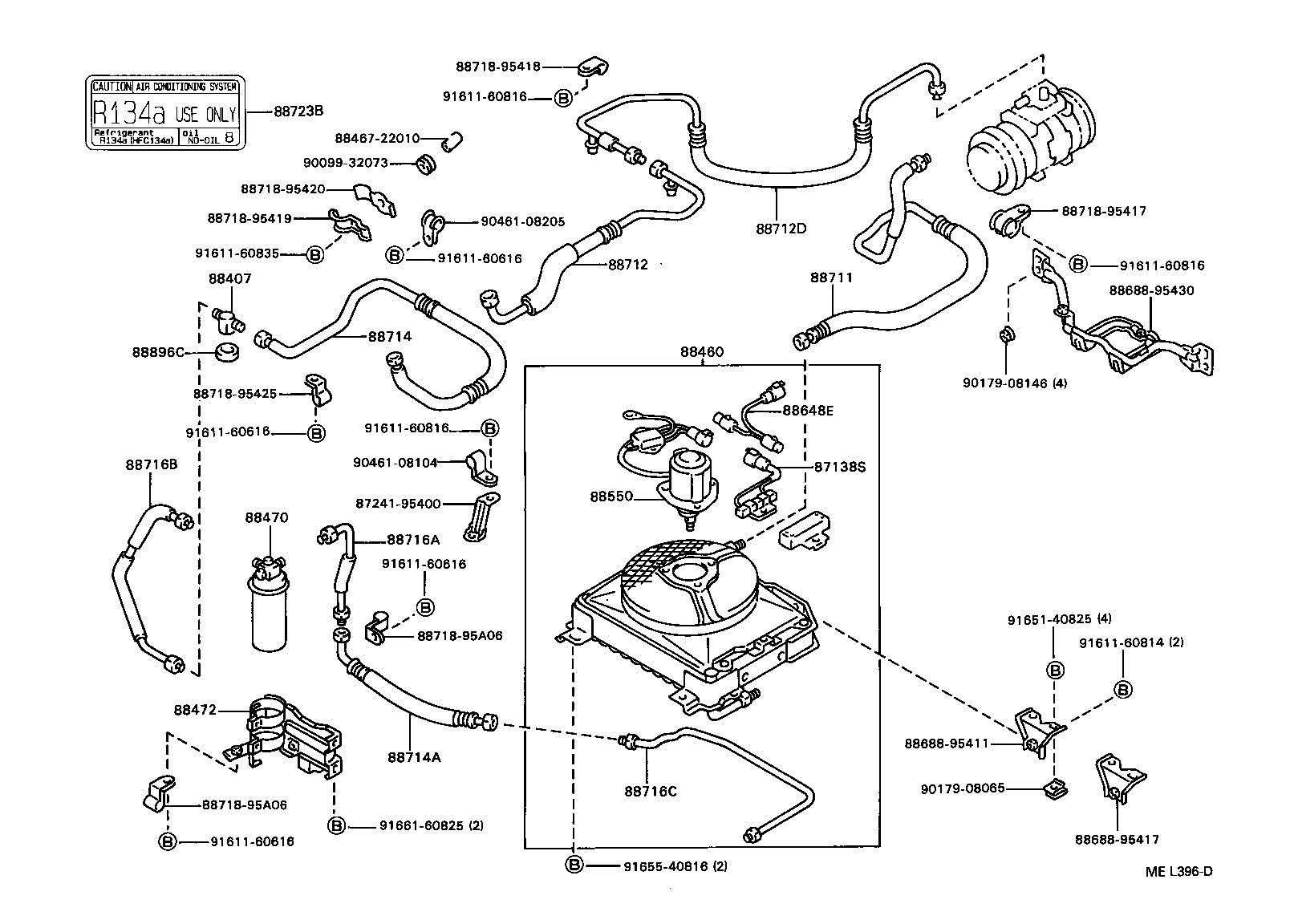

Toyota Dyna 200 YU62 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
87138S - RESISTOR, BLOWER
87138-95410	RU85..SA;YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
87138-95410	YU85;RU85,YU6#,82..GEN	09/1993 - 05/1995	1
88407 - GLASS SUB-ASSY, SIGHT
88407-95701	YU6#,71,82	08/1988 - 11/1988	1
88407-95701	YU82;RU85,YU6#,71..GEN	08/1990 - 09/1991	1
88407-95701	YU82;RU85,YU6#,71..ARL,GEN	11/1988 - 08/1990	1
88407-95701	YU82;RU85,YU6#,71..ARL,GEN	09/1991 - 09/1993	1
88460 - CONDENSER ASSY, COOLER
88460-37020	YU6#,82..LHD	09/1993 - 05/1995	1
88460-95406	YU6#,71,82..LHD	08/1988 - 09/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400	RU85..SA;YU6#,71,82	09/1991 - 09/1993	1
88471-20050	YU85;RU85,YU6#,82..GEN	09/1993 - 05/1995	1
88471-95400	RU85..SA;YU6#,71,82..GEN,SA	08/1990 - 09/1991	1
88471-95400	RU85..SA;YU6#,71,82	08/1988 - 08/1990	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95409	YU6#,71,82..LHD	08/1988 - 09/1993	1
88472-37020	YU6#,82..LHD	09/1993 - 05/1995	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406	YU85;RU85,YU6#,82..GEN	09/1993 - 05/1995	1
87104-95406	RU85..SA;YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88648E - WIRING, COOLER
88648-95419	YU85;RU85,YU62,82..GEN	09/1993 - 05/1995	1
88648-95419	RU85..SA;YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95430	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88711-37010	YU6#,82..GEN	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95428	YU6#,82..LHD	08/1988 - 09/1993	1
88712-95438	YU6#,82..LHD	08/1988 - 09/1993	1
88712D - HOSE, SUCTION
88712-37020	YU6#,82..LHD	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37040	YU6#,82..LHD	09/1993 - 05/1995	1
88721-36110	YU6#,82..LHD	10/1992 - 09/1993	1
88721-95414	YU6#,82..LHD	08/1988 - 10/1992	1
88721-95406	YU6#,82..LHD	08/1988 - 09/1993	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-37020	YU6#,82..LHD	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95414	YU6#,71,82..LHD	08/1988 - 09/1993	1
88716-37040	YU6#,82..LHD	09/1993 - 05/1995	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95415	YU6#,71,82..LHD	08/1988 - 09/1993	1
88716-37050	YU6#,82..LHD	09/1993 - 05/1995	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95409	YU6#,71,82..LHD	08/1988 - 09/1993	1
88716-37010	RU85,YU6#,82..LHD	09/1993 - 05/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	YU85;RU85,YU6#,82..GEN	09/1993 - 05/1995	1
88896C - COVER, COOLER REFRIGERANT PIPE, NO.1
88896-95704	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
Common parts
87241-95400
88467-22010
88688-95411
88688-95417
88688-95430
88718-95417
88718-95418
88718-95419
88718-95420
88718-95425
88718-95A06
90099-32073
90179-08065
90179-08146
90461-08104
90461-08205
91611-60616
91611-60814
91611-60816
91611-60835
91651-40825
91655-40816
91661-60825

YU62L-MDB (1988)

(8808- )YU6#,71,82..LHD
