YU62L-MDB (1988)
Toyota Dyna 200

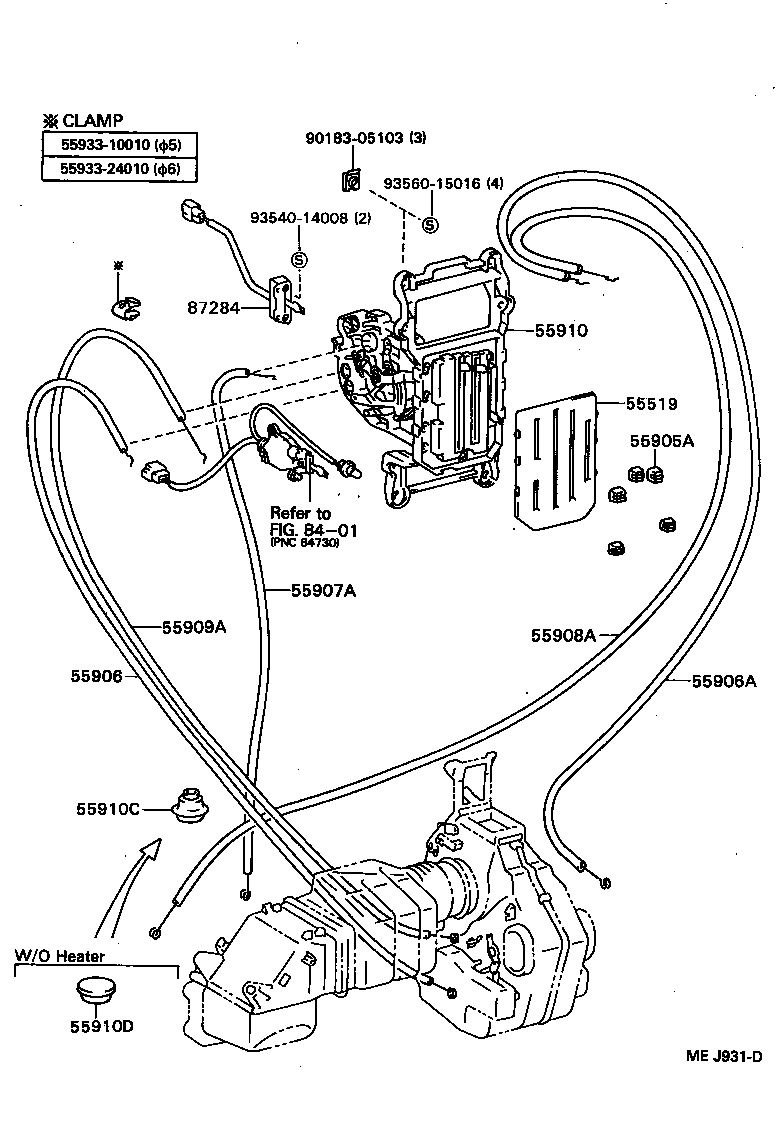

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95404 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55519-95403 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
YU62..T3..ST |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
RU85,YU6#,71,82..GEN |
2 | ||
| 55905-95707 |
YU62..ST;YU82..LHD |
2 | ||
| 55905-95707 |
YU62..ST;YU82..LHD |
1 | ||
| 55905-10110 |
RU85,YU6#,71,82..GEN |
1 | ||
| 55905-10110 |
YU62..ST;YU82..LHD |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95406 |
YU71;YU62..T3..ST |
1 | ||
| 55906-36050 |
YU71;YU62..T3..ST |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95406 |
YU71;YU62..T3..ST |
1 | ||
| 55907-36030 |
YU71;YU62..T3..ST |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95404 |
YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
YU62..T3..ST |
1 | ||
| 55906-36090 |
YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95406 |
YU71;YU62..T3..ST |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-95409 |
YU62..T3..ST |
1 | ||
| 55910-95411 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-36100 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36090 |
YU62..T3..ST |
1 | ||
| 55910-36110 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
YU62..T3..ST;YU82..RHD..GEN |
1 | ||
| 90480-24215 |
YU71;YU62,82..RHD;YU62..T3..ST |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
YU6#,71,82..GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
RU85,YU71;YU62,82..RHD;YU62..T3..ST |
1 | ||
| 88032-95400 |
YU82..RHD;YU62..T3..ST;RU85,WU9#,YU71 |
1 | ||
| 88032-95400 |
YU62,82..RHD;YU62..T3..ST;RU85,WU9#,YU71 |
1 | ||
| 88032-95400 |
RU85,YU71;YU82..RHD;YU62..T3..ST |
1 | ||
| 88032-95400 |
YU62,82..RHD;YU62..T3..ST;RU85,WU9#,YU71 |
1 | ||
| 88032-95400 |
YU85;RU85..GEN;YU62..T3..ST;YU82..RHD..GEN |
1 | ||
| Common parts | ||||
| 55933-10010 | ||||
| 55933-24010 | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95404 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55519-95403 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
YU62..T3..ST |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
RU85,YU6#,71,82..GEN |
2 | ||
| 55905-95707 |
YU62..ST;YU82..LHD |
2 | ||
| 55905-95707 |
YU62..ST;YU82..LHD |
1 | ||
| 55905-10110 |
RU85,YU6#,71,82..GEN |
1 | ||
| 55905-10110 |
YU62..ST;YU82..LHD |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95406 |
YU71;YU62..T3..ST |
1 | ||
| 55906-36050 |
YU71;YU62..T3..ST |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95404 |
YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
YU62..T3..ST |
1 | ||
| 55906-36090 |
YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-95409 |
YU62..T3..ST |
1 | ||
| 55910-95411 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-36100 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36090 |
YU62..T3..ST |
1 | ||
| 55910-36110 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
YU6#,71,82..GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
RU85,YU71;YU62,82..RHD;YU62..T3..ST |
1 | ||
| 88032-95400 |
YU82..RHD;YU62..T3..ST;RU85,WU9#,YU71 |
1 | ||
| 88032-95400 |
YU62,82..RHD;YU62..T3..ST;RU85,WU9#,YU71 |
1 | ||
| 88032-95400 |
RU85,YU71;YU82..RHD;YU62..T3..ST |
1 | ||
| 88032-95400 |
YU62,82..RHD;YU62..T3..ST;RU85,WU9#,YU71 |
1 | ||
| 88032-95400 |
YU85;RU85..GEN;YU62..T3..ST;YU82..RHD..GEN |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95404 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55519-95403 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
YU62..T3..ST |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
RU85,YU6#,71,82..GEN |
2 | ||
| 55905-95707 |
YU62..ST;YU82..LHD |
2 | ||
| 55905-95707 |
YU62..ST;YU82..LHD |
1 | ||
| 55905-10110 |
RU85,YU6#,71,82..GEN |
1 | ||
| 55905-10110 |
YU62..ST;YU82..LHD |
3 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95404 |
YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
YU62..T3..ST |
1 | ||
| 55906-36090 |
YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-95409 |
YU62..T3..ST |
1 | ||
| 55910-95411 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-36100 |
RU85,YU6#,71,82..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36090 |
YU62..T3..ST |
1 | ||
| 55910-36110 |
RU85,YU6#,71,82..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
YU6#,71,82..GEN |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 90183-05103 | ||||
| 93560-15016 | ||||

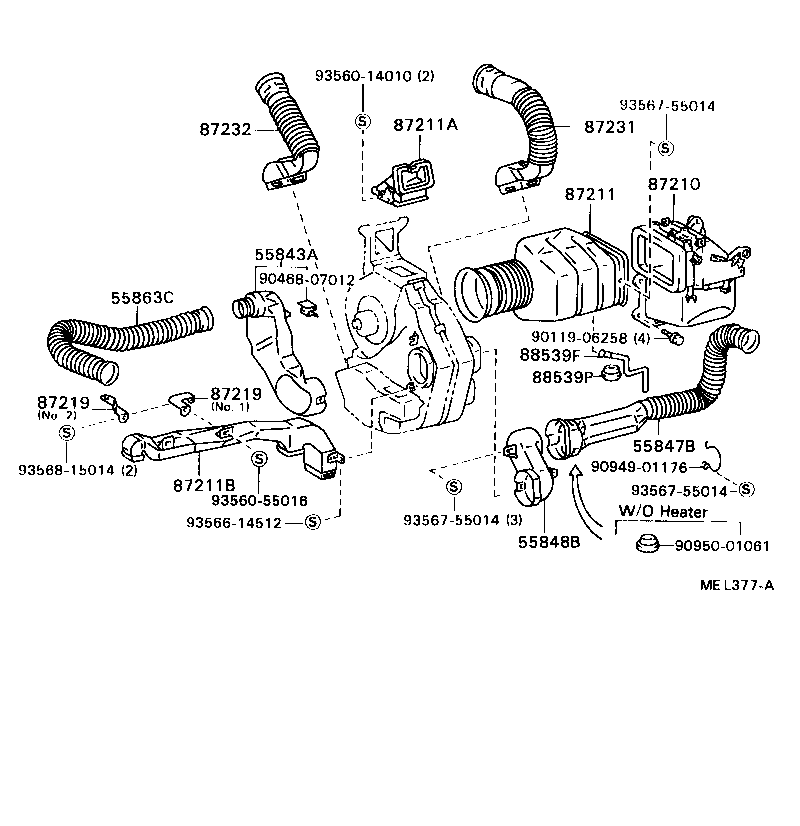

ILLUST NO. 2 OF 2(8808- )YU6#,71,82..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-95406 |
YU6#,71,82..LHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-95400 |
YU6#,71,82 |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-95401 |
RU85,WU9#,YU6#,71,82..LHD |
1 | ||
| 55863C - BOOT, SIDE VENTILATOR DUCT | ||||
| 55863-95405 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95404 |
RU85,YU6#,71,82..LHD |
1 | ||
| 87210-95404 |
RU85,WU9#,YU6#,71,82..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95405 |
YU6#,71,82..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95403 |
YU6#,71,82..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95409 |
YU62,71..ST |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
YU62..ST;RU85,YU71;YU82..RHD NO.1 |
1 | ||
| 87214-95402 |
YU85;YU62..ST;RU85..GEN;YU82..RHD..GEN NO.1 |
1 | ||
| 87214-95402 |
YU62..ST;YU62,82..RHD;RU85,WU9#,YU71 NO.1 |
1 | ||
| 87214-95403 |
YU62..ST;YU62,82..RHD;RU85,WU9#,YU71 NO.2 |
1 | ||
| 87214-95403 |
YU62..ST;RU85,YU71;YU82..RHD NO.2 |
1 | ||
| 87214-95403 |
YU85;YU62..ST;RU85..GEN;YU82..RHD..GEN NO.2 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
YU62..ST;RU85,YU71;YU82..RHD NO.1 |
1 | ||
| 87214-95402 |
YU85;YU62..ST;RU85..GEN;YU82..RHD..GEN NO.1 |
1 | ||
| 87214-95402 |
YU62..ST;YU62,82..RHD;RU85,WU9#,YU71 NO.1 |
1 | ||
| 87214-95403 |
YU62..ST;YU62,82..RHD;RU85,WU9#,YU71 NO.2 |
1 | ||
| 87214-95403 |
YU62..ST;RU85,YU71;YU82..RHD NO.2 |
1 | ||
| 87214-95403 |
YU85;YU62..ST;RU85..GEN;YU82..RHD..GEN NO.2 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95408 |
RU85,WU9#,YU6#,71,82..LHD |
1 | ||
| 87231-95408 |
RU85,YU6#,71,82..LHD |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95407 |
YU6#,71,82..LHD |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95403 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 88539-95403 |
RU85,YU6#,71,82 |
1 | ||
| 88539-95403 |
YU85;RU85,YU6#,82..GEN |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 88897-30580 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 88897-30580 |
RU85,YU6#,71,82 |
1 | ||
| 88897-30580 |
YU85;RU85,YU6#,82..GEN |
1 | ||
| Common parts | ||||
| 90119-06258 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 90950-01061 | ||||
| 93560-14010 | ||||
| 93560-55016 | ||||
| 93566-14512 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||
