YU62L-MDB (1988)
Toyota Dyna 200

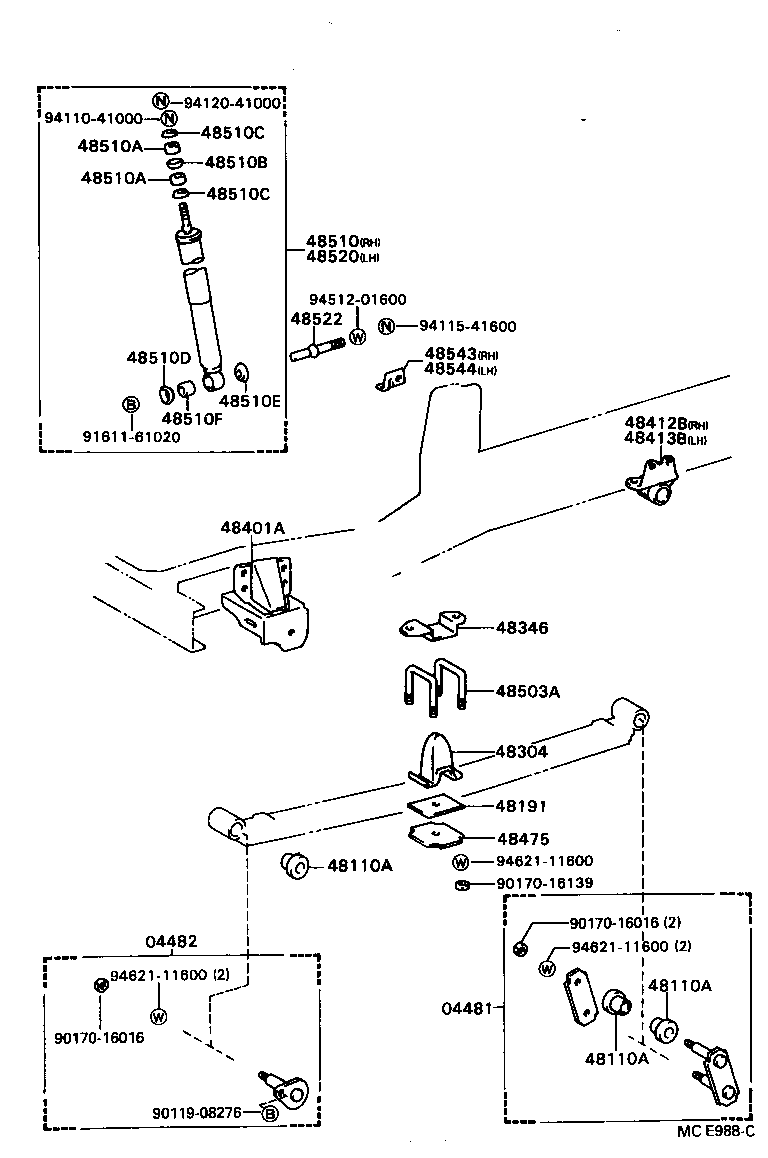

ILLUST NO. 1 OF 2(8808- )YU6#,71,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36070 |
YU6#,71,82 |
2 | ||
| 04481-36070 |
YU6#,82..GEN |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36010 |
YU6#,82..GEN |
2 | ||
| 04482-36010 |
YU6#,71,82 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
YU6#,71,82 |
12 | ||
| 90385-23037 |
YU6#,82..GEN |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
YU6#,71,82 |
12 | ||
| 90385-23037 |
YU6#,82..GEN |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
YU6#,71,82 |
12 | ||
| 90385-23037 |
YU6#,82..GEN |
12 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-25010 |
YU6#,71 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36150 |
YU85;RU85,YU6#,82..GEN |
2 | ||
| 48304-36150 |
RU85,YU6#,71,82 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-36040 |
YU62,71,82 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-36120 |
YU62,71,82 RH |
1 | ||
| 48412-36120 |
YU62,71,82 LH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48413-36050 |
YU62,71,82 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48413-36050 |
YU62,71,82 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 48475-36070 |
YU85;RU85,YU6#,82..GEN |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16093 |
YU6#,71,82 L=105 |
1 | ||
| 90117-16020 |
YU6#,71,82 L=95 |
4 | ||
| 90117-16020 |
YU6#,82..GEN L=95 |
4 | ||
| 90117-16093 |
YU6#,82..GEN L=105 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39505 |
YU6#,71,82 MARK 48511-36150 |
1 | ||
| 48511-39506 |
YU6#,82..GEN MARK 48511-36150 |
1 | ||
| 48511-39506 |
YU6#,71,82 MARK 48511-36150 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
YU85;RU85,YU6#,82..GEN |
4 | ||
| 90948-01003 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
YU85;RU85,YU6#,82..GEN |
4 | ||
| 90948-01003 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
YU85;RU85,YU6#,82..GEN |
2 | ||
| 90948-02007 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
YU85;RU85,YU6#,82..GEN |
4 | ||
| 90948-02002 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
YU85;RU85,YU6#,82..GEN |
4 | ||
| 90948-02002 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 90948-03007 |
YU85;RU85,YU6#,82..GEN |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 90948-03004 |
YU85;RU85,YU6#,82..GEN |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 90385-16011 |
YU85;RU85,YU6#,82..GEN |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39505 |
YU6#,71,82 MARK 48511-36150 |
1 | ||
| 48511-39506 |
YU6#,71,82 MARK 48511-36150 |
1 | ||
| 48511-39506 |
YU6#,82..GEN MARK 48511-36150 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
YU85;RU85,YU6#,82..GEN |
2 | ||
| 48522-25010 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90170-16016 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94120-41000 | ||||
| 94512-01600 | ||||
| 94621-11600 | ||||

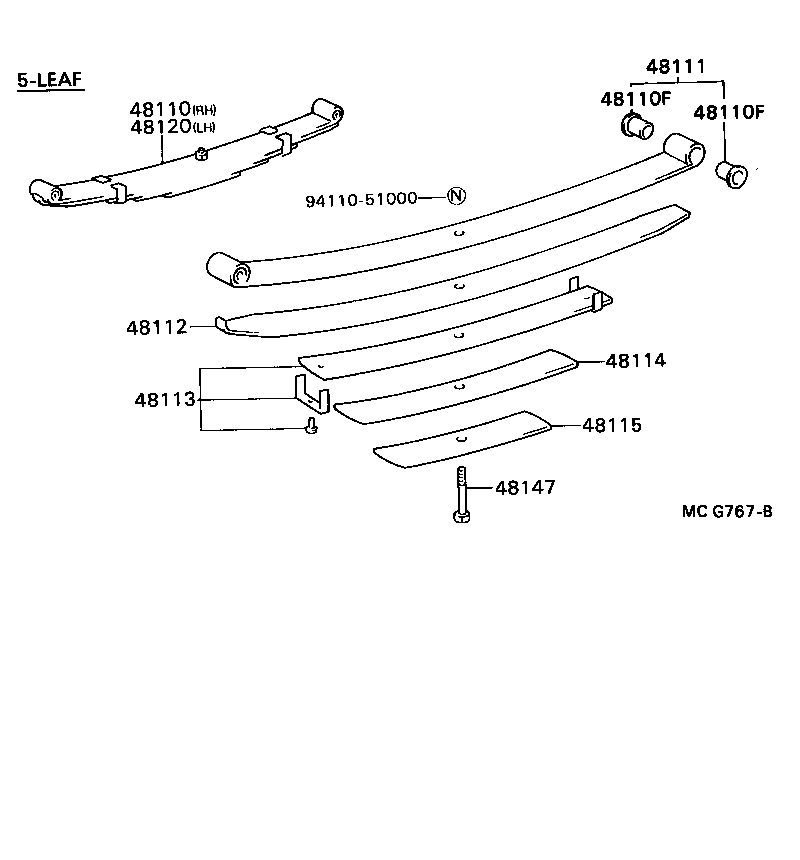

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B220 |
YU62,71..GEN 5-LEAF |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B220 |
YU62,71..GEN 5-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
YU62,71..GEN |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
YU62,71..GEN |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
YU62,71..GEN |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48101-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48101-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48112-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48112-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48102-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48102-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48114-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48114-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48115-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48115-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
YU62,71 5-LEAF |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
YU62,71 5-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
YU62,71 |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
YU62,71 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B220 |
YU62,71..GEN 5-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
YU62,71..GEN |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
YU62,71..GEN |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48101-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48112-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48102-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48114-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B210 |
YU62,71..GEN DRIVER SEAT SIDE |
1 | ||
| 48115-3B220 |
YU62,71..GEN PASSENGER SEAT SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
YU62,71 5-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
YU62,71 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
