YU62L-MDB (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4Y

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8808- )4Y

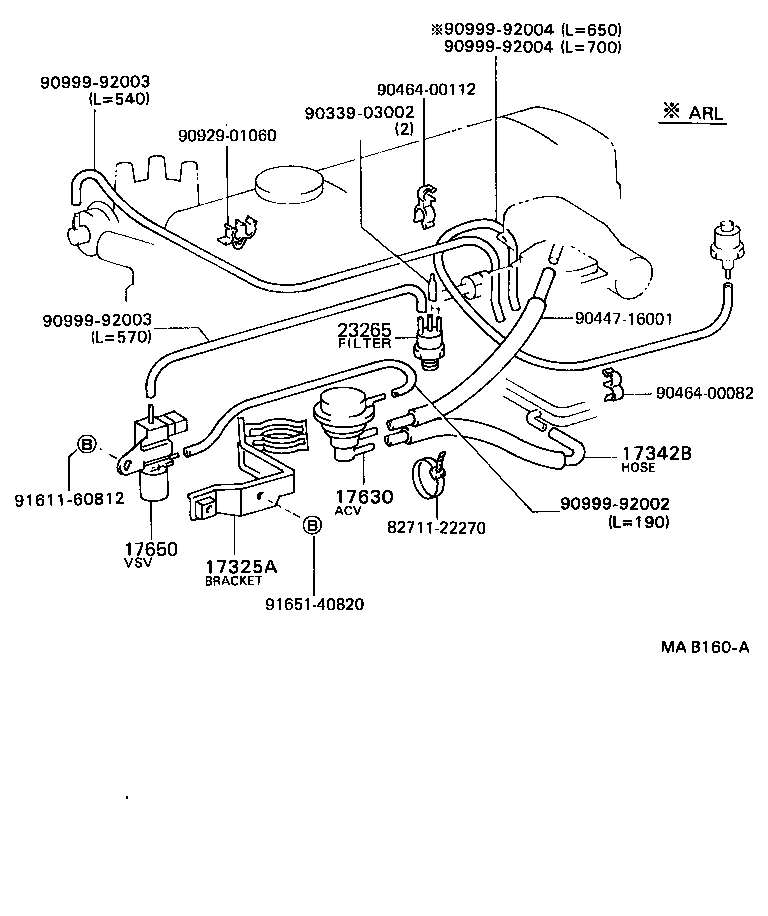

Click highlighted areas on diagram

diagram 17325A 17342B 17630 17650 23265 8271122270 9033903002 9044716001 9046400082 9046400112 9092901060 9099992002 9099992003 9099992003 9099992004 9099992004 9161160812 9165140820
Part # Description Qty Price
17325A - BRACKET, AIR VALVE
17325-73011

4Y..YU6#,71,8#

 1
17325-73010

4Y..YU6#,71,82

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-73021

4Y..YU6#,71,8#

 1
17342-73020

4Y..YU6#,71,82

 1
17630 - VALVE ASSY, AIR CONTROL
17300-73011

4Y..YU6#,71,8#

 1
17300-73010

4Y..YU6#,71,82

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12072

4Y..YU6#,71,8#

 1
23265 - FILTER, GAS, NO.1
90917-11024

4Y..YU6#,71,82

 1
90917-11027

4Y..YU6#,71,8#

 1
Common parts
82711-22270
90339-03002
90447-16001
90464-00082
90464-00112
90929-01060
90999-92002
90999-92003
90999-92004
91611-60812
91651-40820
