YU62L-MDB (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

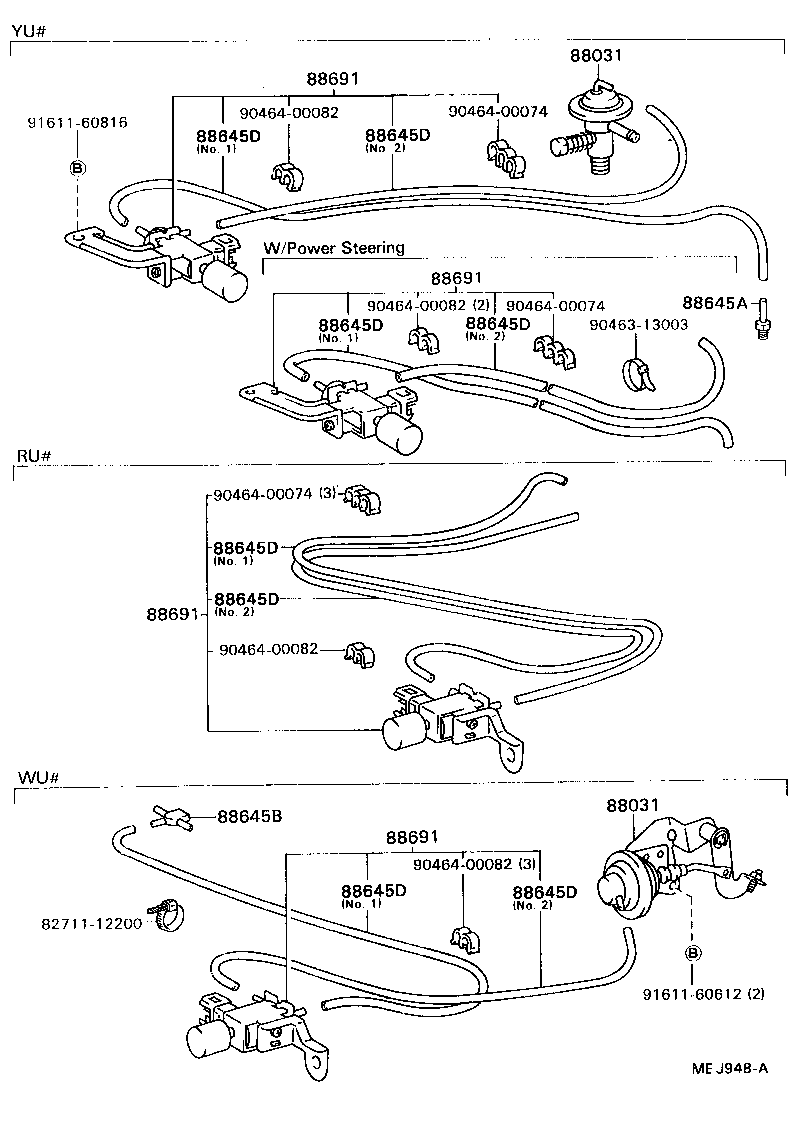

Click highlighted areas on diagram

diagram 8271112200 88031 88031 88645A 88645B 88645D 88645D 88645D 88645D 88645D 88645D 88645D 88645D 88691 88691 88691 88691 9046313003 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9161160612 9161160816
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YU6#,71,81..GEN

 1
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YU6#,71,81..GEN

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95430

YU6#,81..LHD

W(*AIC=MAKER OPTION)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95430

YU6#,81..LHD

W(*AIC=MAKER OPTION)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95430

YU6#,81..LHD

W(*AIC=MAKER OPTION)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95430

YU6#,81..LHD

W(*AIC=MAKER OPTION)

 1
Common parts
82711-12200
90463-13003
90464-00074
90464-00082
91611-60612
91611-60816

(8708- )

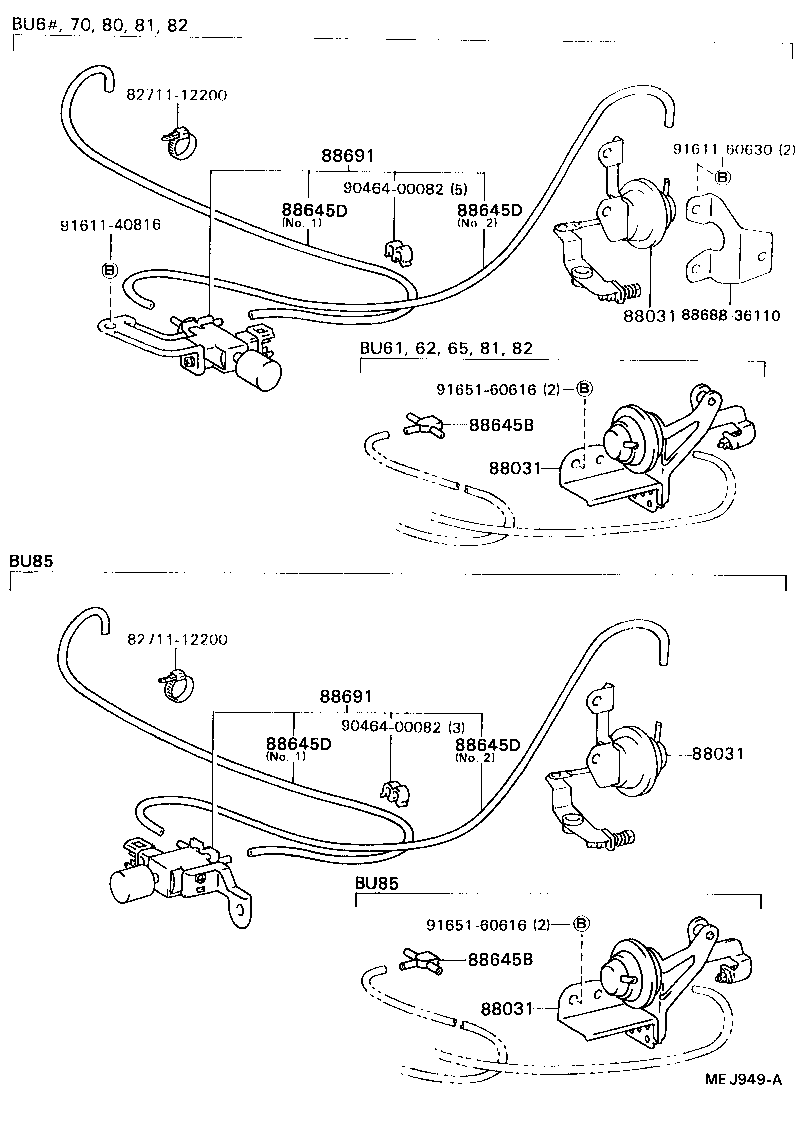

Click highlighted areas on diagram

diagram 8271112200 8271112200 88031 88031 88031 88031 88645B 88645B 88645D 88645D 88645D 88645D 8868836110 88691 88691 9046400082 9046400082 9161140816 9161160630 9165160616 9165160616
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YU6#,71,81..GEN

 1
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YU6#,71,81..GEN

 1
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YU6#,71,81..GEN

 1
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YU6#,71,81..GEN

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19956

YU6#,81..LHD

*H,L=560,MARK=#*,NO.2

 1
95411-10060

YU6#,81..LHD

*H,L=600,MARK=#0,NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95430

YU6#,81..LHD

W(*AIC=MAKER OPTION)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95430

YU6#,81..LHD

W(*AIC=MAKER OPTION)

 1
Common parts
82711-12200
88688-36110
90464-00082
91611-40816
91611-60630
91651-60616
