WU95R-MDDTN3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission RHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )RU85,WU9#,YU6#,81

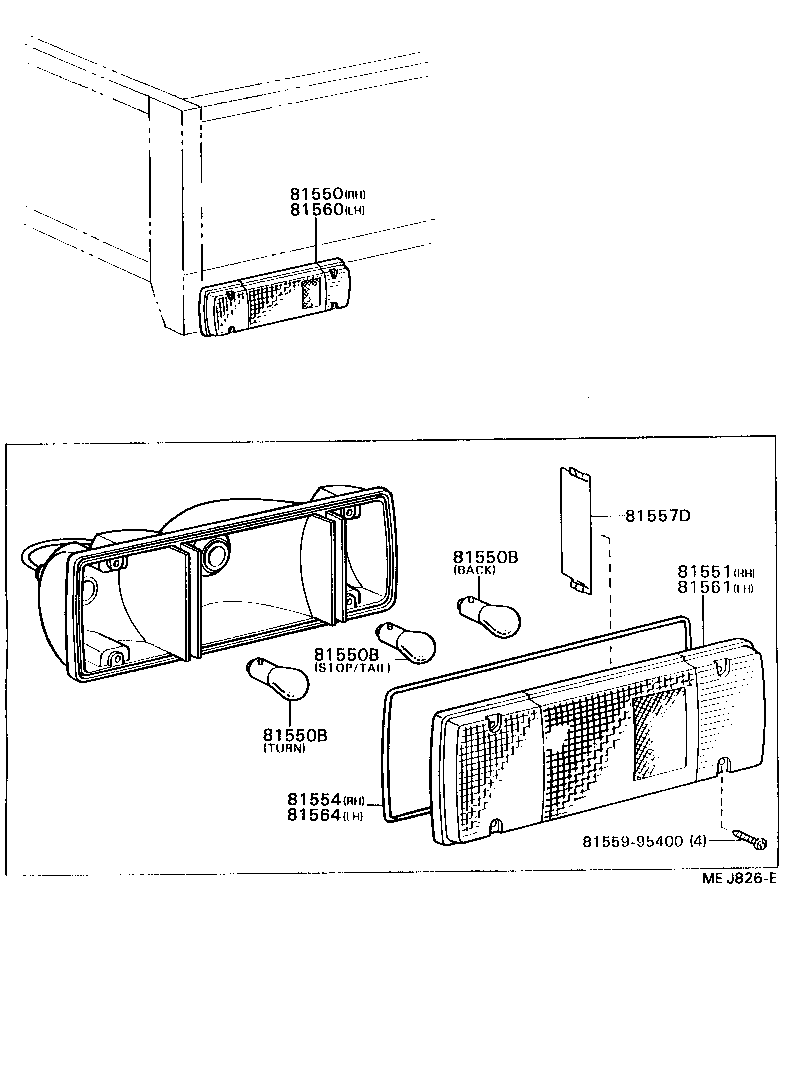

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81557D 8155995400 81560 81561 81564
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95410

RU85,WU9#,YU81..SA

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RU85,WU9#,YU81..SA

12V 21/5W,STOP/TAIL

 1
99132-11210

RU85,WU9#,YU81..SA

12V 21W,TURN OR BACK

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RU85,WU9#,YU81..SA

12V 21/5W,STOP/TAIL

 1
99132-11210

RU85,WU9#,YU81..SA

12V 21W,TURN OR BACK

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RU85,WU9#,YU81..SA

12V 21/5W,STOP/TAIL

 1
99132-11210

RU85,WU9#,YU81..SA

12V 21W,TURN OR BACK

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95403

RU85,WU9#,YU81..SA

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-95400

RU85,WU9#,YU6#,81

 1
81557D - REFLECTOR, REAR COMBINATION LAMP
81557-95403

RU85,WU9#,YU81..SA

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95410

RU85,WU9#,YU81..SA

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95403

RU85,WU9#,YU81..SA

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-95400

RU85,WU9#,YU6#,81

 1
Common parts
81559-95400
