WU95R-MDDTN3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission RHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 67913 67914 9018905055 9356055016
Part # Description Qty Price
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9540306

RU85,WU9#,YU6#,71,81

BROWN,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9540306

RU85,WU9#,YU6#,71,81

BROWN,TRIM4#

 1
Common parts
90189-05055
93560-55016

(8708- )

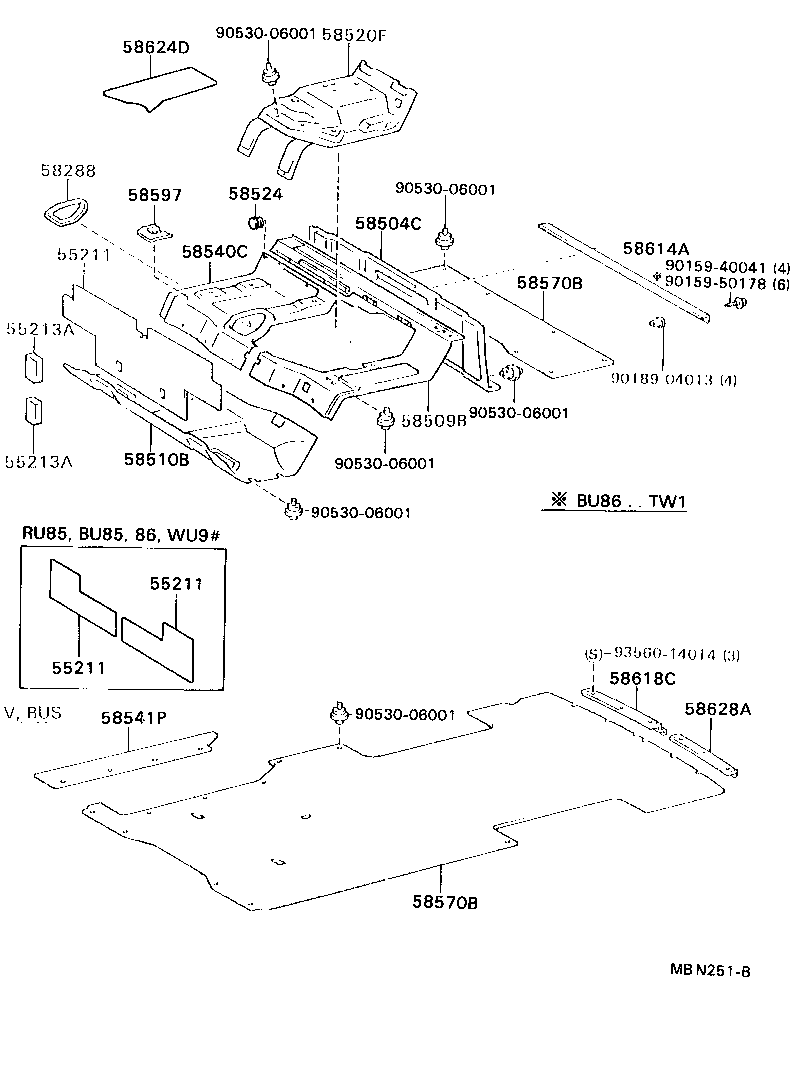

Click highlighted areas on diagram

diagram 55211 55211 55211 55213A 55213A 58288 58504C 58509B 58510B 58520F 58524 58540C 58541P 58570B 58570B 58597 58614A 58618C 58624D 58628A 9015940041 9015950178 9018904013 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9356014014
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95405

RU85,WU9#

 2
55211 - SILENCER, FRONT PANEL
55211-95405

RU85,WU9#

 2
55211 - SILENCER, FRONT PANEL
55211-95405

RU85,WU9#

 2
58288 - SEAL, SHIFT LEVER BOOT
58288-95400

RU85,WU9#,YU62,81..RHD

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-95B3206

RU85,WU9#..RHD..(GEN,SA)

BROWN,TRIM4#

 1
58510-95B3606

RU85,WU9#..RHD..(GEN,SA)

BROWN,TRIM4#

 1
58524 - FASTENER, FLOOR MAT, MALE
90530-04005

RU85,WU9#,YU81..RHD..(GEN,SA)

 2
90530-04005

RU85,WU9#..RHD..(GEN,SA)

 18
58597 - PLATE, SEAT TRACK SET
58597-95400

RU85,WU9#,YU6#,71,81..GEN,SA

 1
58597-95400

RU85,WU9#,YU6#,71,81..GEN,SA

 1
58624D - PAD, CENTER FLOOR SILENCER
58624-9540306

RU85,WU9#,YU81..RHD..(GEN,SA)

BROWN,TRIM4#

 1
Common parts
90159-40041
90159-50178
90189-04013
90530-06001
93560-14014

(8708- )

Click highlighted areas on diagram

diagram 67913 67914 9018905055 9356055016
Part # Description Qty Price
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9540306

RU85,WU9#,YU6#,71,81

BROWN,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9540306

RU85,WU9#,YU6#,71,81

BROWN,TRIM4#

 1
Common parts
90189-05055
93560-55016

(8708- )

Click highlighted areas on diagram

diagram 55211 55211 55211 55213A 55213A 58288 58504C 58509B 58510B 58520F 58524 58540C 58541P 58570B 58570B 58597 58614A 58618C 58624D 58628A 9015940041 9015950178 9018904013 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9356014014
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95405

RU85,WU9#

 2
55211 - SILENCER, FRONT PANEL
55211-95405

RU85,WU9#

 2
55211 - SILENCER, FRONT PANEL
55211-95405

RU85,WU9#

 2
58288 - SEAL, SHIFT LEVER BOOT
58288-95400

RU85,WU9#,YU62,81..RHD

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-95B3206

RU85,WU9#..RHD..(GEN,SA)

BROWN,TRIM4#

 1
58510-95B3606

RU85,WU9#..RHD..(GEN,SA)

BROWN,TRIM4#

 1
58524 - FASTENER, FLOOR MAT, MALE
90530-04005

RU85,WU9#,YU81..RHD..(GEN,SA)

 2
90530-04005

RU85,WU9#..RHD..(GEN,SA)

 18
58597 - PLATE, SEAT TRACK SET
58597-95400

RU85,WU9#,YU6#,71,81..GEN,SA

 1
58597-95400

RU85,WU9#,YU6#,71,81..GEN,SA

 1
58624D - PAD, CENTER FLOOR SILENCER
58624-9540306

RU85,WU9#,YU81..RHD..(GEN,SA)

BROWN,TRIM4#

 1
Common parts
90159-40041
90159-50178
90189-04013
90530-06001
93560-14014
