WU95L-MDDT3 (1988)
Toyota Dyna 200
Production
Aug 1988
-
May 1993
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

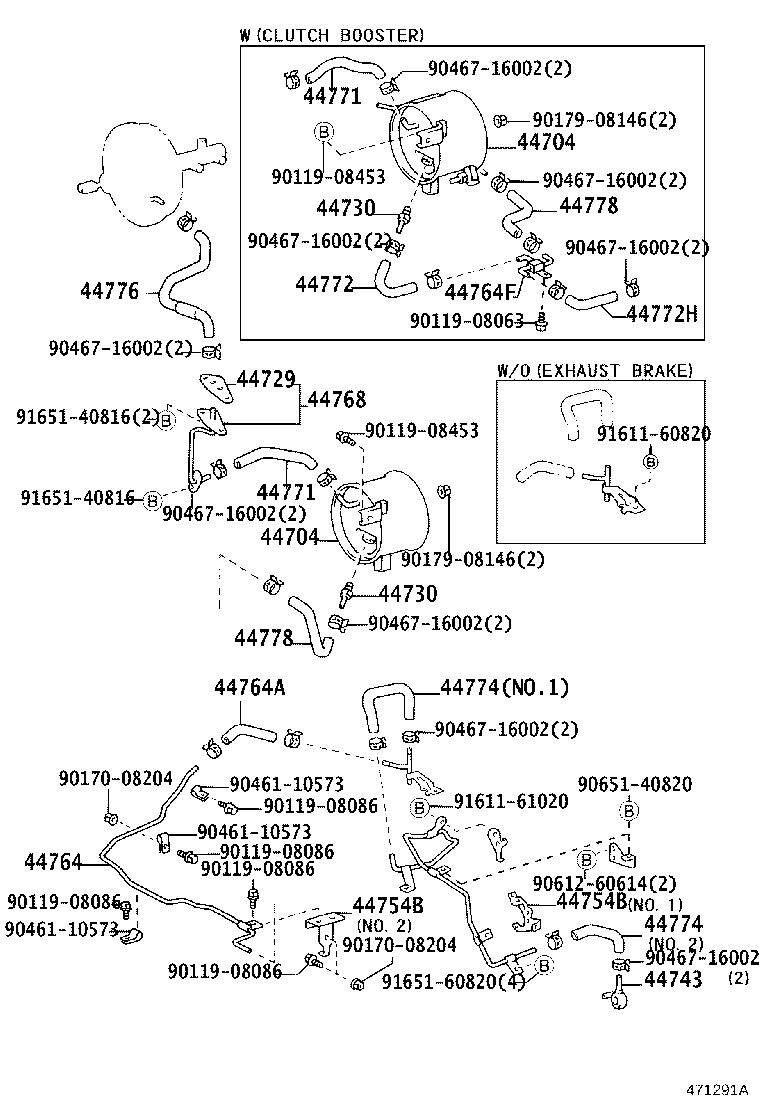

Click highlighted areas on diagram
AISIN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08038 | ||||
(8808- )
Click highlighted areas on diagram
JKC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08038 | ||||
| 90179-08146 | ||||
(8808- )WU9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36170 |
WU9# |
1 | ||
| 44704-36231 |
WU9# |
1 | ||
| 44704-36230 |
WU9# |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36170 |
WU9# |
1 | ||
| 44704-36231 |
WU9# |
1 | ||
| 44704-36230 |
WU9# |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
WU9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
WU9# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09103 |
WU9# |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-36060 |
RU85,WU9#..GEN |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-36060 |
RU85,WU9#..GEN |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-36340 |
RU85,WU9#..GEN |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 95446-09200 |
WU9# |
1 | ||
| 95441-09300 |
WU9# |
1 | ||
| 44764F - WAY(FOR BOOSTER VACUUM TUBE) | ||||
| 90413-09036 |
WU9# |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-36030 |
RU85,WU9#,YU6#,71,82..LHD |
1 | ||
| 44768-36100 |
WU9# |
1 | ||
| 44768-36080 |
WU9# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36070 |
WU9# |
1 | ||
| 44771-36160 |
WU9# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36070 |
WU9# |
1 | ||
| 44771-36160 |
WU9# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-14032 |
WU9# |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-36070 |
WU9# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36110 |
WU9# NO.1 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36110 |
WU9# NO.1 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36061 |
RU85,WU9#..GEN |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36020 |
WU9# |
1 | ||
| 44778-36040 |
WU9# |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36020 |
WU9# |
1 | ||
| 44778-36040 |
WU9# |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08086 | ||||
| 90119-08453 | ||||
| 90170-08204 | ||||
| 90179-08146 | ||||
| 90461-10573 | ||||
| 90467-16002 | ||||
| 90612-60614 | ||||
| 90651-40820 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
(8808- )
Click highlighted areas on diagram
AISIN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36091 |
WU9# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36332 |
WU9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
WU9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8808- )
Click highlighted areas on diagram
JKC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36091 |
WU9# |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-36220 |
RU85,WU9#,YU85 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-25150 |
RU85,WU9#,YU85 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36332 |
WU9# |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
RU85,WU9#,YU85 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-25150 |
RU85,WU9#,YU85 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-36220 |
RU85,WU9#,YU85 |
1 | ||
| 44647A - ROD, BOOSTER PISTON | ||||
| 44647-25150 |
RU85,WU9#,YU85 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-36321 |
WU9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
WU9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90179-08146 | ||||
