WU95L-MDDT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1993
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9305)1W

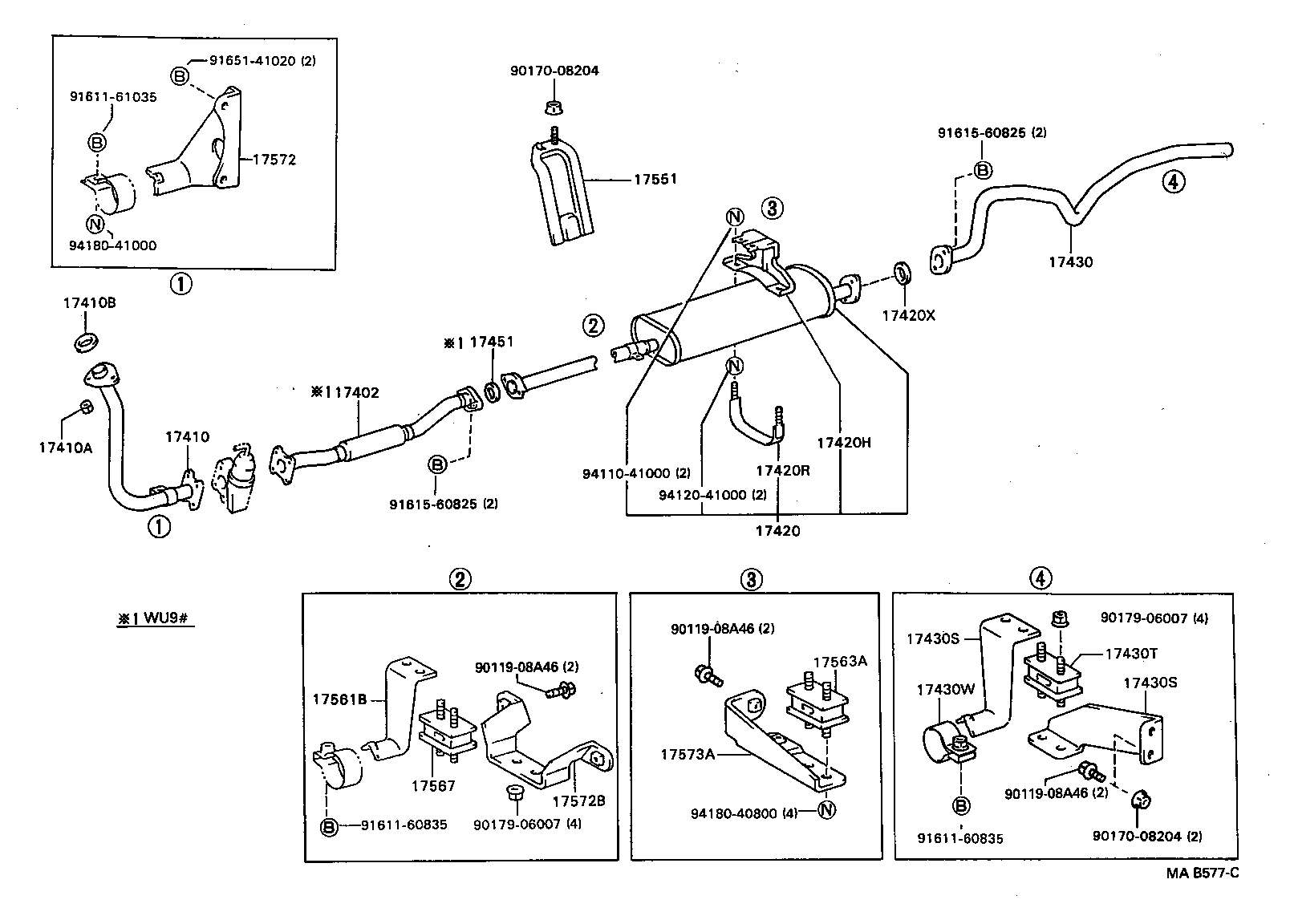

Click highlighted areas on diagram

diagram 17402 17410 17410A 17410B 17420 17420H 17420R 17420X 17430 17430S 17430S 17430T 17430W 17451 17551 17561B 17563A 17567 17572 17572B 17573A 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017906007 9017906007 9161160835 9161160835 9161161035 9161560825 9161560825 9165141020 9411041000 9412041000 9418040800 9418041000
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-56040

1W..WU9#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78021

1W..WU9#

 1
17401-78030

1W..WU9#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22R,1W,4Y..RU85,WU9#,YU6#,71,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06005

1W..WU9#

 1
90917-06042

1W..WU9#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-56310

1W..WU95

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

22R,1W,4Y..RU85,WU9#,YU85

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

22R,1W,4Y..RU85,WU9#,YU85

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

22R,1W,4Y..RU85,WU9#,YU6#,71,82

 1
90917-06047

22R,1W,4Y..RU85,WU9#,YU6#,71,82

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58210

22R,1W,4Y..RU85,WU9#,YU85

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

22R,1W,4Y..RU85,WU9#,YU62,8#..WT

BODY SIDE

 1
17561-47010

22R,1W,4Y..RU85,WU9#,YU85

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

22R,1W,4Y..RU85,WU9#,YU62,8#..WT

BODY SIDE

 1
17561-47010

22R,1W,4Y..RU85,WU9#,YU85

PIPE SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

22R,1W,4Y..RU85,WU9#,YU6#,71,8#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

22R,1W,4Y..RU85,WU9#,YU85

 1
17451 - GASKET, EXHAUST PIPE
90917-06008

1W,4Y..WU9#,YU6#,71,82

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-47010

22R,1W,4Y..RU85,WU9#,YU85

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-58010

22R,1W,4Y..RU85,WU9#,YU85

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-61030

22R,1W,4Y..RU85,WU9#,YU8#

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58080

1W..WU9#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-58030

22R,1W,4Y..RU85,WU9#,YU85

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58060

22R,1W..RU85,WU9#

 1
Common parts
90119-08A46
90170-08204
90179-06007
91611-60835
91611-61035
91615-60825
91651-41020
94110-41000
94120-41000
94180-40800
94180-41000
