WU90R-MDDT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission RHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )WU9#..RHD

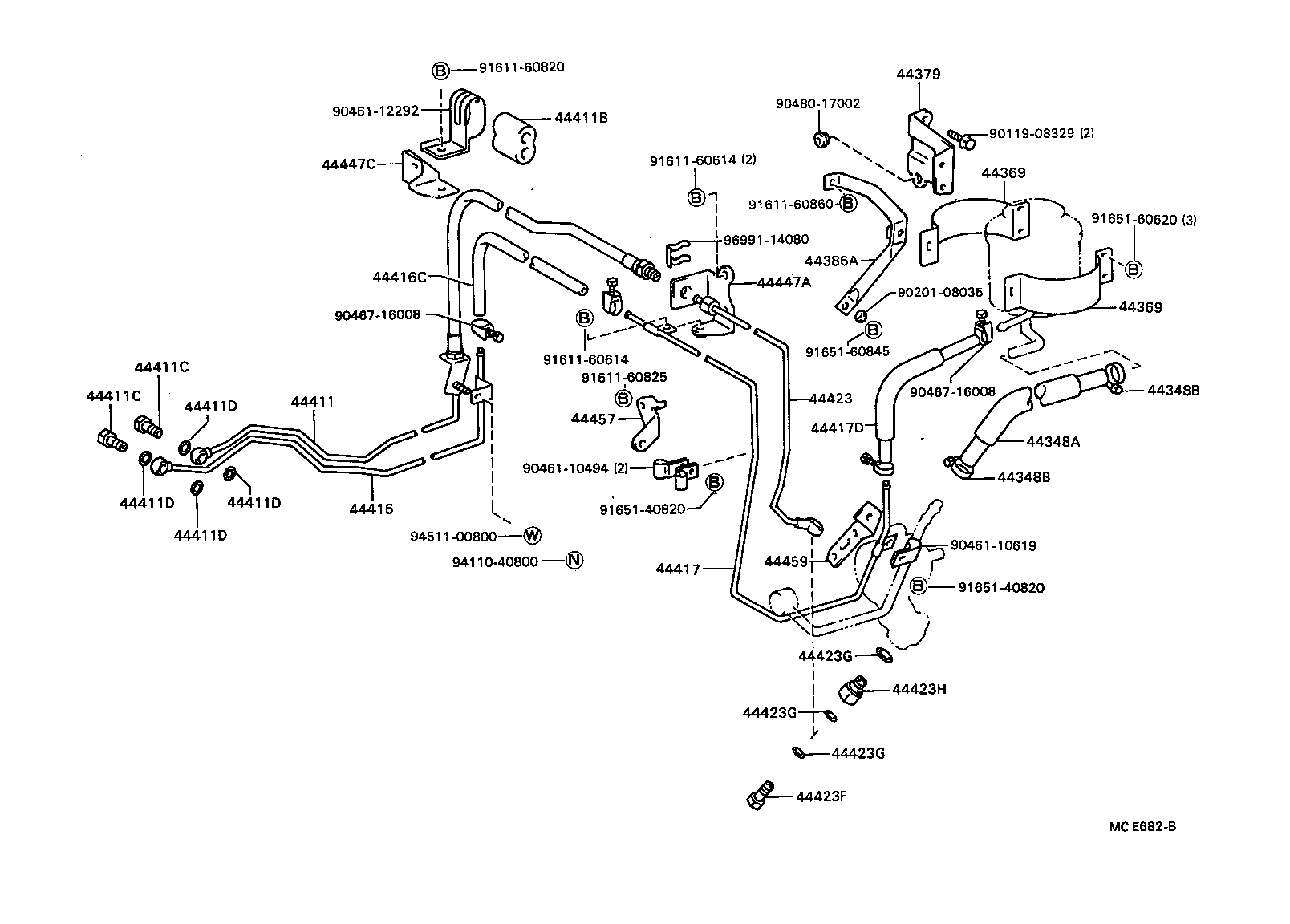

Click highlighted areas on diagram

diagram 44348A 44348B 44348B 44369 44369 44379 44386A 44411 44411B 44411C 44411C 44411D 44411D 44411D 44411D 44416 44416C 44417 44417D 44423 44423F 44423G 44423G 44423G 44423H 44447A 44447C 44457 44459 9011908329 9020108035 9046110494 9046110619 9046112292 9046716008 9046716008 9048017002 9161160614 9161160614 9161160820 9161160825 9161160860 9165140820 9165140820 9165160620 9165160845 9411040800 9451100800 9699114080
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36080

WU9#..GEN

 1
44348-36081

WU9#..GEN

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

RU85,WU9#..GEN

 2
90467-21005

RU85,WU9#..GEN

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

RU85,WU9#..GEN

 2
90467-21005

RU85,WU9#..GEN

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

WU9#..GEN

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

WU9#..GEN

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36100

WU9#..GEN

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36070

WU9#..GEN

 1
44411 - HOSE, PRESSURE FEED
44411-36280

WU90..RHD..GEN

 1
44411B - CUSHION(FOR PRESSURE FEED HOSE)
90540-18002

WU9#..GEN

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-14003

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 2
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-14003

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36180

WU90..RHD..GEN

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18129

WU9#..GEN

 1
44417 - TUBE, RETURN, NO.2
44417-36070

WU9#..GEN

 1
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18131

WU9#..GEN

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36150

WU9#..GEN

 1
44423F - BOLT, UNION
90401-14003

WU9#..GEN

 1
44423G - GASKET, UNION BOLT
90430-14235

WU9#..GEN

T=1.0,OD=20

 2
90430-16168

WU9#..GEN

T=1.6,OD=22

 1
44423G - GASKET, UNION BOLT
90430-14235

WU9#..GEN

T=1.0,OD=20

 2
90430-16168

WU9#..GEN

T=1.6,OD=22

 1
44423G - GASKET, UNION BOLT
90430-14235

WU9#..GEN

T=1.0,OD=20

 2
90430-16168

WU9#..GEN

T=1.6,OD=22

 1
44423H - NUT, UNION
90402-16005

WU9#..GEN

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36110

WU9#..GEN

 1
44447C - BRACKET, HOSE SUPPORT NO.2
44447-36090

WU9#..GEN

 1
44457 - BRACKET, TUBE SUPPORT, NO.1
44457-36050

WU9#..GEN

 1
44459 - BRACKET, TUBE SUPPORT, NO.3
44459-36060

WU9#..GEN

 1
Common parts
90119-08329
90201-08035
90461-10494
90461-10619
90461-12292
90467-16008
90480-17002
91611-60614
91611-60820
91611-60825
91611-60860
91651-40820
91651-60620
91651-60845
94110-40800
94511-00800
96991-14080
