WU90R-MDDT3 (1987)
Toyota Dyna 200

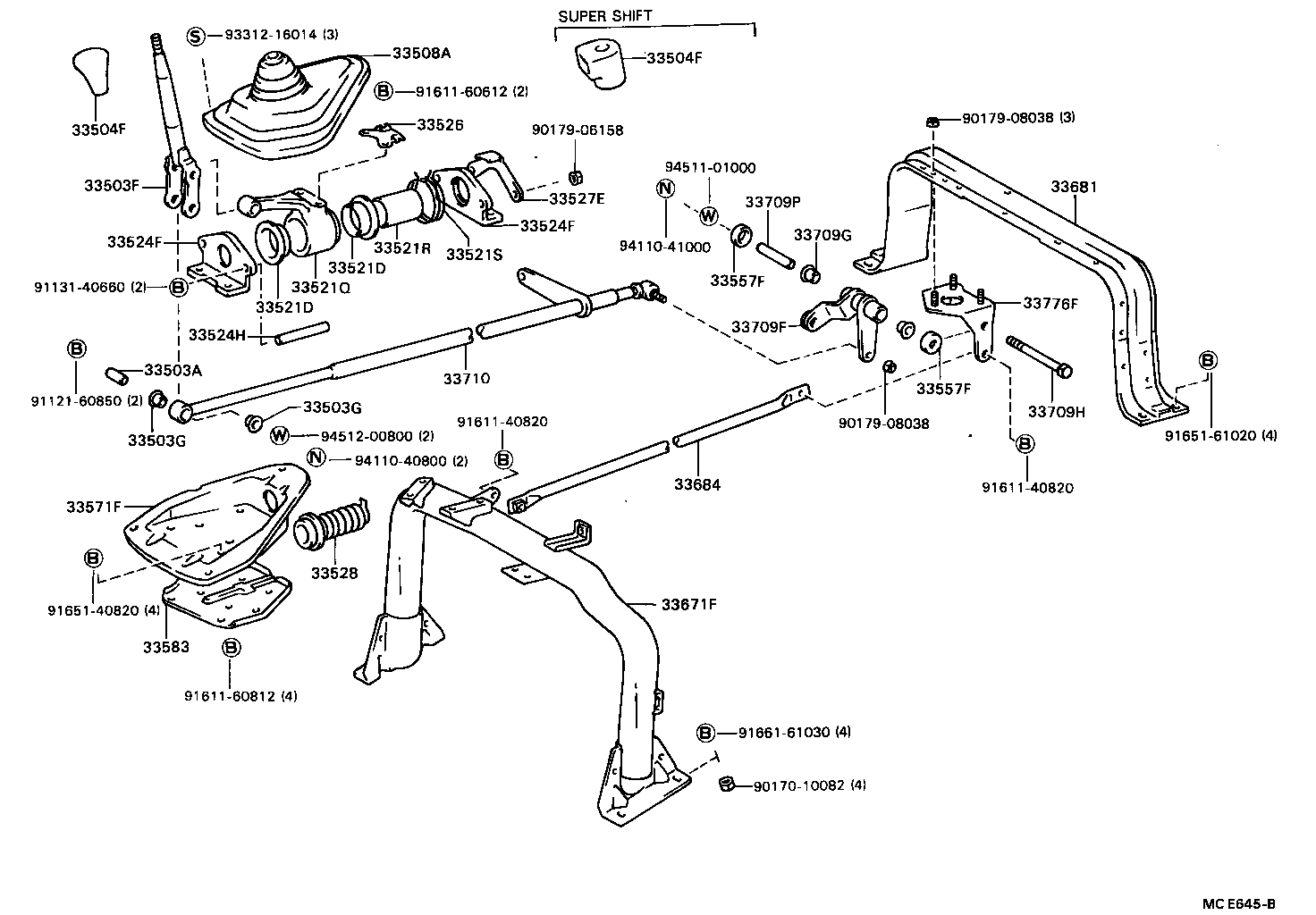

ILLUST NO. 1 OF 2(8708- )RU85,WU9#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08009 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36060 |
YU62;RU85,WU9#,YU63,71,81..GEN,SA |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
RU85,WU9#,YU6#,71,81 |
4 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
RU85,WU9#,YU6#,71,81 |
4 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-3605006 |
WU9#..GEN;RU85,YU6#,71,81 BROWN,TRIM4# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-3605006 |
WU9#..GEN;RU85,YU6#,71,81 BROWN,TRIM4# |
1 | ||
| 33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT) | ||||
| 33508-36010 |
WU90..RHD..(GEN,SA);RU85,WU95,YU62,81..RHD |
1 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-36050 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 33521R - COLLAR (FOR SHIFT LEVER HOUSING) | ||||
| 90387-34001 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 33521S - SPRING (FOR SHIFT LEVER HOUSING) | ||||
| 90508-26067 |
RU85,WU9#..RHD |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 33524H - COLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET) | ||||
| 90387-06026 |
RU85,WU9#,YU6#,71,81 |
2 | ||
| 33526 - PLATE, SHIFT LEVER SUPPORT, NO.1 | ||||
| 33526-36030 |
RU85,WU9# |
1 | ||
| 33527E - PLATE, SHIFT LEVER SUPPORT, NO.2 | ||||
| 33527-36130 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 33528 - COVER, CONTROL SHAFT | ||||
| 33528-36020 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-36020 |
RU85,WU9#,YU62,81..RHD |
2 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-36020 |
RU85,WU9#,YU62,81..RHD |
2 | ||
| 33571F - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33571-36090 |
WU90..RHD..(GEN,SA);RU85,WU95,YU62,81..RHD |
1 | ||
| 33583 - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33583-36050 |
RU85,WU9#,YU62,81..RHD |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33607-36080 |
RU85,WU9#..RHD |
1 | ||
| 33681 - MEMBER, CONTROL ROD, REAR | ||||
| 33681-36011 |
RU85,WU9#,YU62,71,81 |
1 | ||
| 33684 - ROD, CONTROL MEMBER BRACE | ||||
| 33684-36030 |
RU85,WU9# |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-36310 |
RU85,WU9#..RHD |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
RU85,WU9#,YU62,81..RHD |
2 | ||
| 33709H - BOLT, HEXAGON (FOR CROSS SHAFT) | ||||
| 90101-10117 |
RU85,WU9#..RHD |
1 | ||
| 33709P - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-10064 |
RU85,WU9#..RHD |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-36210 |
RU85,WU9#..RHD |
1 | ||
| 33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33776-36190 |
RU85,WU9#..RHD |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 91121-60850 | ||||
| 91131-40660 | ||||
| 91611-40820 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91651-40820 | ||||
| 91651-61020 | ||||
| 91661-61030 | ||||
| 93312-16014 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||

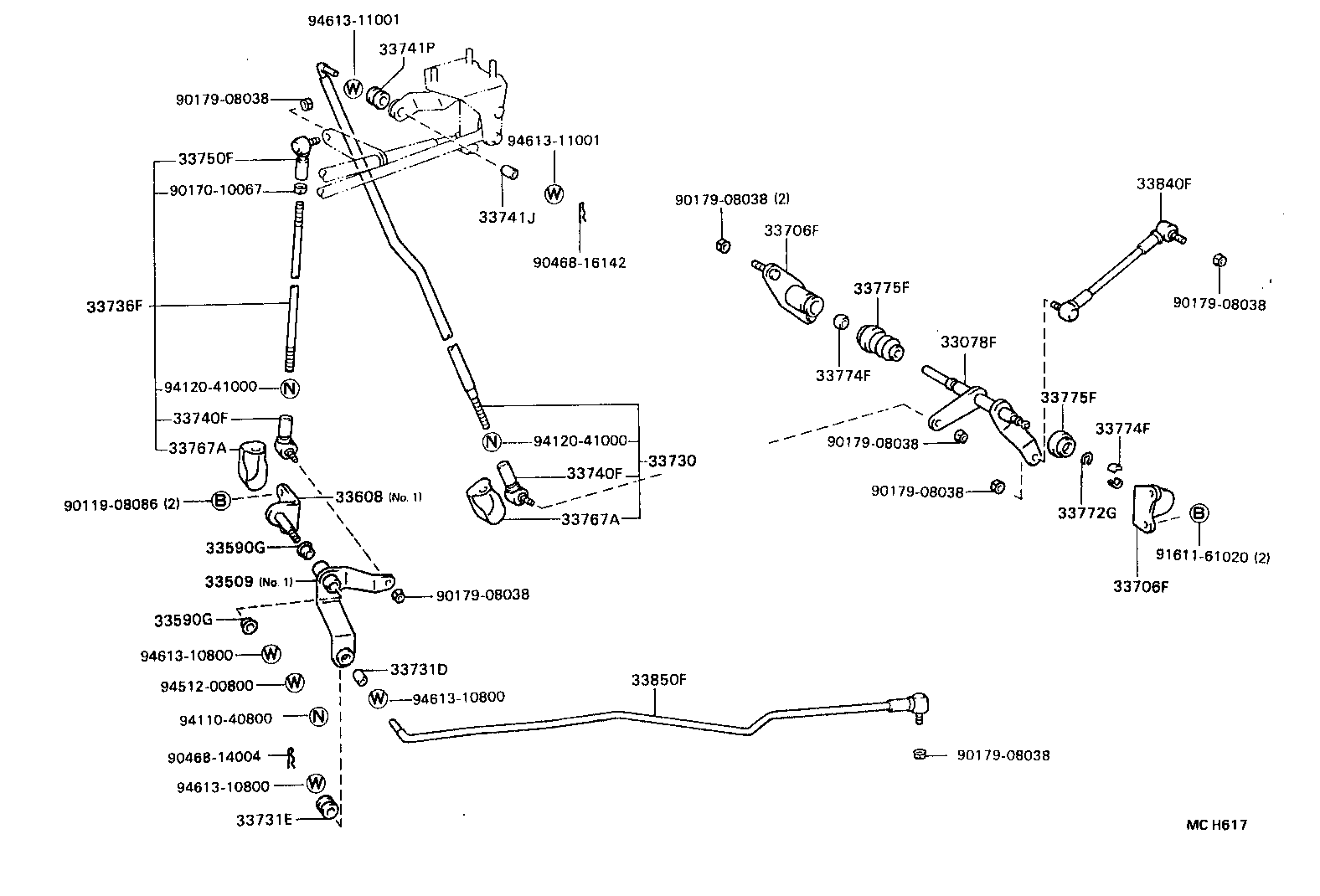

ILLUST NO. 2 OF 2(8708- )RU85,WU9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33078F - SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT) | ||||
| 33078-36240 |
RU85;WU9#..ARL,GEN |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-36010 |
RU85,WU9# |
1 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
YU62,81..LHD;RU85,WU9#,YU63,71 |
2 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
YU62,81..LHD;RU85,WU9#,YU63,71 |
2 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-36010 |
RU85,WU9# |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36040 |
WU9# TRANSMISSION SIDE |
1 | ||
| 33706-36030 |
RU85,WU9# FRAME SIDE |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36040 |
WU9# TRANSMISSION SIDE |
1 | ||
| 33706-36030 |
RU85,WU9# FRAME SIDE |
1 | ||
| 33730 - ROD ASSY, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT) | ||||
| 33730-36250 |
WU9# |
1 | ||
| 33731D - BUSH (FOR GEAR SELECTING ROD) | ||||
| 90389-08005 |
RU85,WU9# |
1 | ||
| 33731E - GROMMET (FOR GEAR SELECTING ROD) | ||||
| 90480-17014 |
RU85,WU9# |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-36430 |
RU85,WU9# |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
RU85,WU9#,YU6#,71,81 SHIFTING |
1 | ||
| 33740-36060 |
WU9# SELECTING |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
RU85,WU9#,YU6#,71,81 SHIFTING |
1 | ||
| 33740-36060 |
WU9# SELECTING |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90387-10063 |
RU85,WU9# |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17254 |
RU85,WU9# |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36030 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-36010 |
WU9# |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-36010 |
WU9# |
1 | ||
| 33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) | ||||
| 96151-01600 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
RU85,WU9#,YU6#,71,81 LH |
2 | ||
| 33772-35011 |
RU85,WU9# RH |
1 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
RU85,WU9#,YU6#,71,81 LH |
2 | ||
| 33772-35011 |
RU85,WU9# RH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
RU85,WU9#,YU6#,71,81 CROSS SHAFT NO.2,LH |
1 | ||
| 33775-35010 |
RU85,WU9# CROSS SHAFT NO.2,RH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
RU85,WU9#,YU6#,71,81 CROSS SHAFT NO.2,LH |
1 | ||
| 33775-35010 |
RU85,WU9# CROSS SHAFT NO.2,RH |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-36330 |
RU85;WU9#..GEN |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-36210 |
WU9#..GEN |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90170-10067 | ||||
| 90179-08038 | ||||
| 90468-14004 | ||||
| 90468-16142 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94613-11001 | ||||
