WU90R-MDDT3 (1987)
Toyota Dyna 200
Production
Aug 1987
-
Aug 1988
Engine
1W
Transmission
RHD 5F
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )
Click highlighted areas on diagram
12V 2.5KW,24V 4.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-01436 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90099-56081 | ||||
| 91112-41465 | ||||
| 93319-15008 | ||||
| 94115-41400 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 95411-00600 | ||||

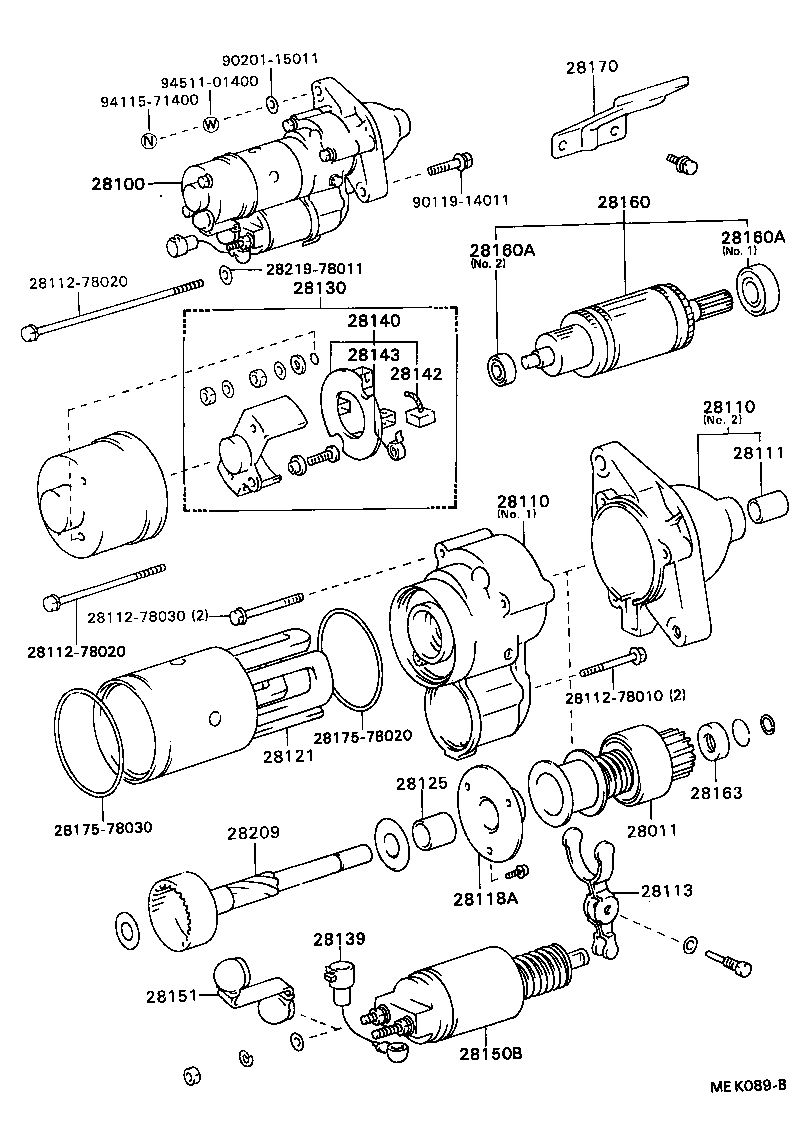

ILLUST NO. 1 OF 2(8708- )1W
Click highlighted areas on diagram
24V 4.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
1W..WU9# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-78020 |
1W..WU9# 12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-78010 |
1W..WU9# |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-78010 |
1W..WU9# |
1 | ||
| 28118A - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
1W..WU9# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-78010 |
1W..WU9# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1W..WU9# |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-78010 |
1W..WU9# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-47040 |
1W..WU9# |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
1W..WU9# NO.1 |
1 | ||
| 90099-10107 |
1W..WU9# NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
1W..WU9# NO.1 |
1 | ||
| 90099-10107 |
1W..WU9# NO.2 |
1 | ||
| 28170 - COVER ASSY, STARTER | ||||
| 28170-78010 |
1W..WU9# |
1 | ||
| Common parts | ||||
| 28112-78010 | ||||
| 28112-78020 | ||||
| 28112-78030 | ||||
| 28175-78020 | ||||
| 28175-78030 | ||||
| 28219-78011 | ||||
| 90119-14011 | ||||
| 90201-15011 | ||||
| 94115-71400 | ||||
| 94511-01400 | ||||

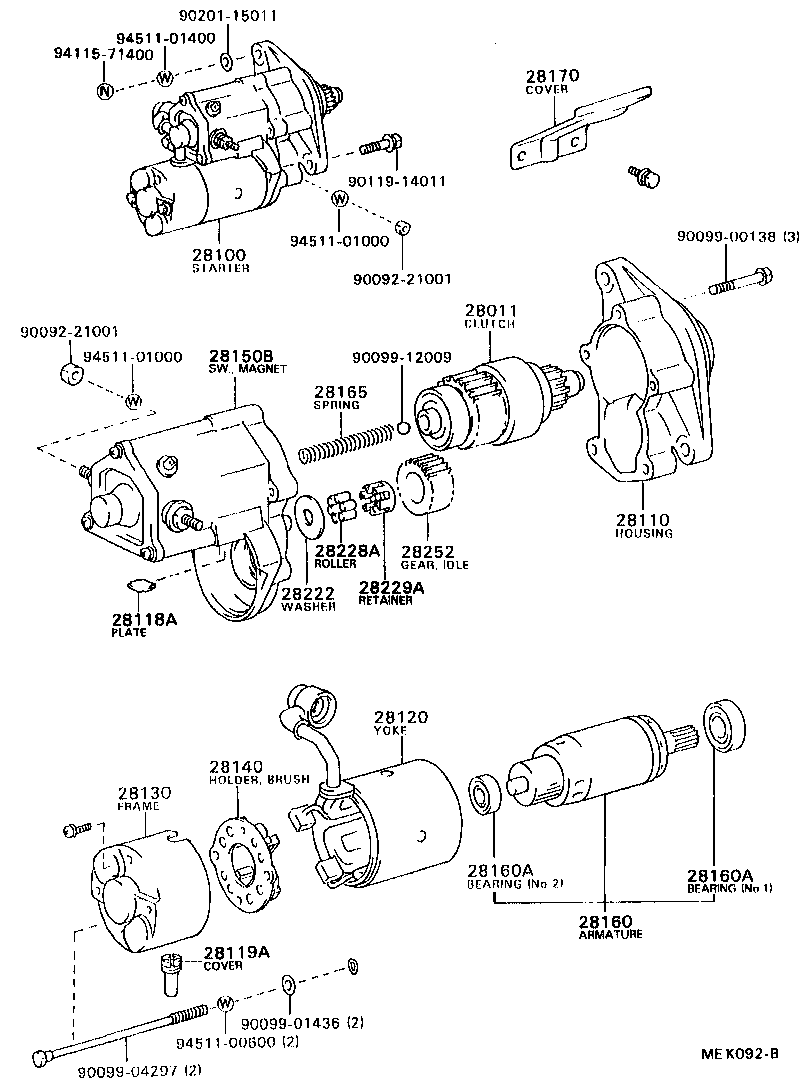

(8708- )1W
Click highlighted areas on diagram
12V 2.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
1W..WU9# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-78020 |
1W..WU9# 12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-78010 |
1W..WU9# |
1 | ||
| 28118A - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
1W..WU9# |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-77090 |
1W..WU9# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
1W..WU9# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-78010 |
1W..WU9# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1W..WU9# |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-78010 |
1W..WU9# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-47040 |
1W..WU9# |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
1W..WU9# NO.1 |
1 | ||
| 90099-10107 |
1W..WU9# NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
1W..WU9# NO.1 |
1 | ||
| 90099-10107 |
1W..WU9# NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
1W..WU9# |
1 | ||
| 28170 - COVER ASSY, STARTER | ||||
| 28170-78010 |
1W..WU9# |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
1W..WU9# |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
1W..WU9# |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
1W..WU9# |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
1W..WU9# |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-14011 | ||||
| 90201-15011 | ||||
| 94115-71400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
ILLUST NO. 2 OF 2(8708- )1W
Click highlighted areas on diagram
24V 4.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

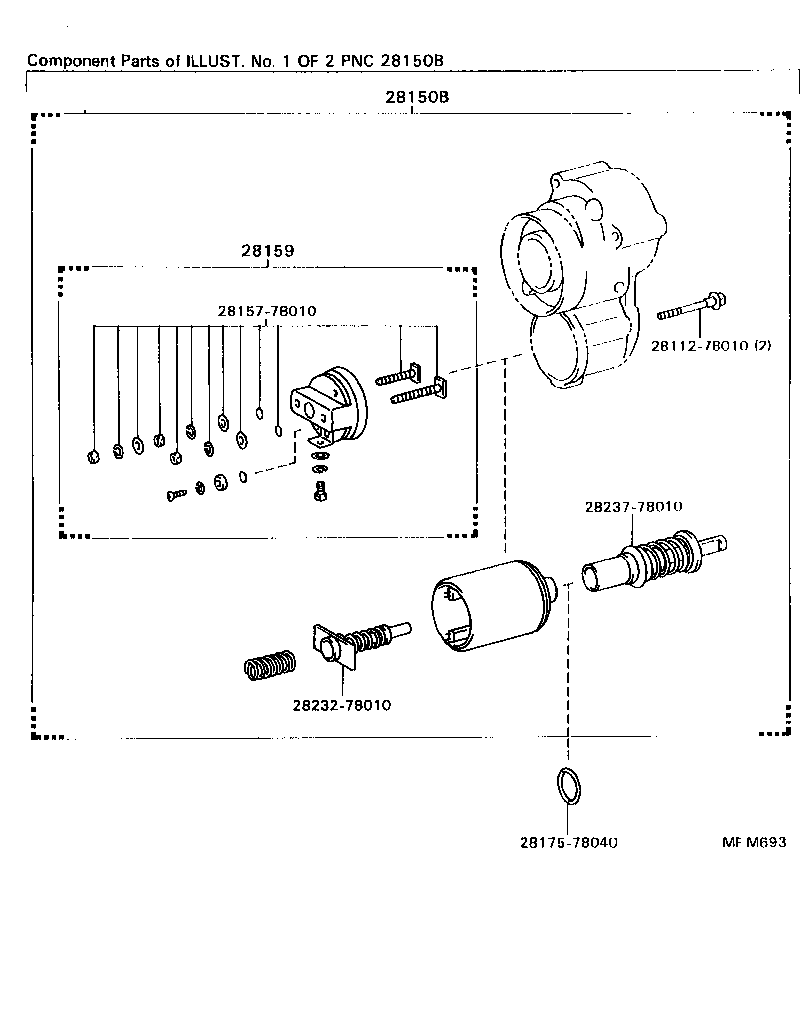

| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-78010 |
1W..WU9# |
1 | ||
| Common parts | ||||
| 28112-78010 | ||||
| 28157-78010 | ||||
| 28175-78040 | ||||
| 28232-78010 | ||||
| 28237-78010 | ||||

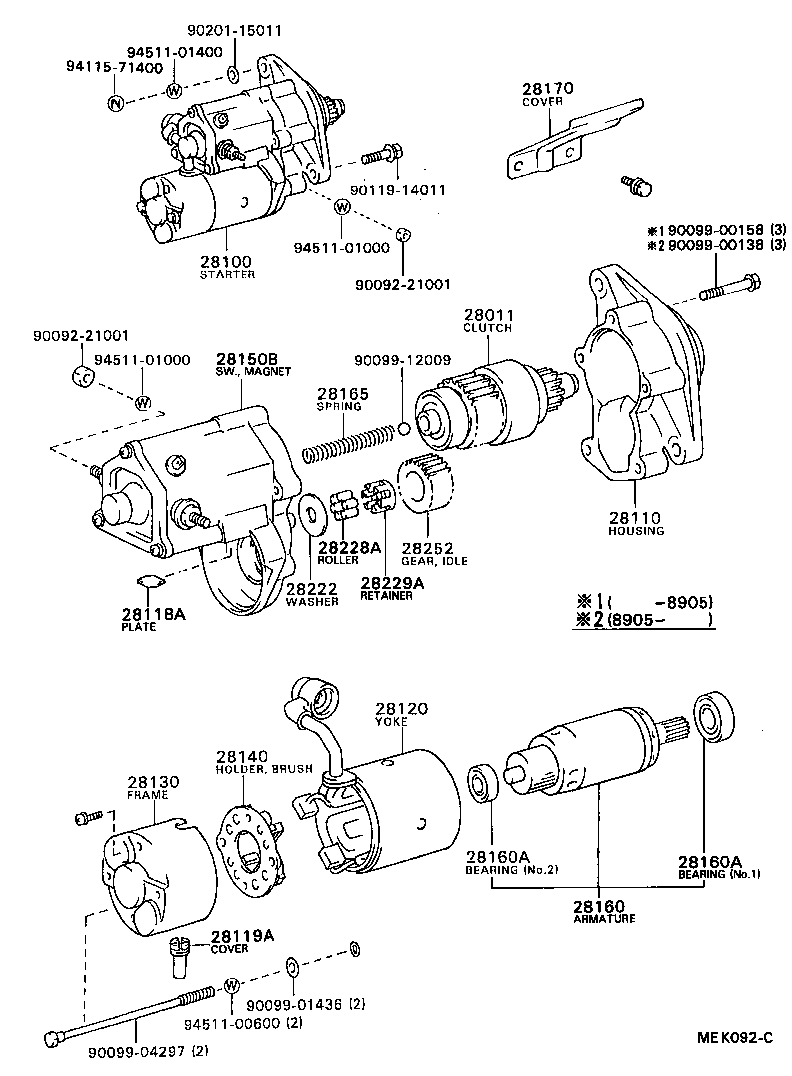

(8808-9305)1W
Click highlighted areas on diagram
12V 2.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-00158 | ||||
| 90099-01436 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-14011 | ||||
| 90201-15011 | ||||
| 94115-71400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
