WU90R-MDDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission RHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )B

Click highlighted areas on diagram

diagram 1708 22100 22100A 22100A 22811 22821 22840 23701 23702 23703 23704 23741 23741 9004179064 9017908060 9161160625 9161161016 9165160612
Part # Description Qty Price
Common parts
90041-79064
90179-08060
91611-60625
91611-61016
91651-60612
Linked diagrams
1708

(8708- )1W

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100A 22811 22812 22812A 22812A 22812B 23701 23702 23703 23704 23741 23742 23742 23742 23743 23743 23743 23743 2384978010 9001906253 9009401001 9009901468 9009905174 9011610086 9011906223 9011908228 9011908399 9011908510 9011910299 9020108035 9020122006 9046108662 9411070600 9411070600 9411071000 9451100600 9451100600 9451101000
Part # Description Qty Price

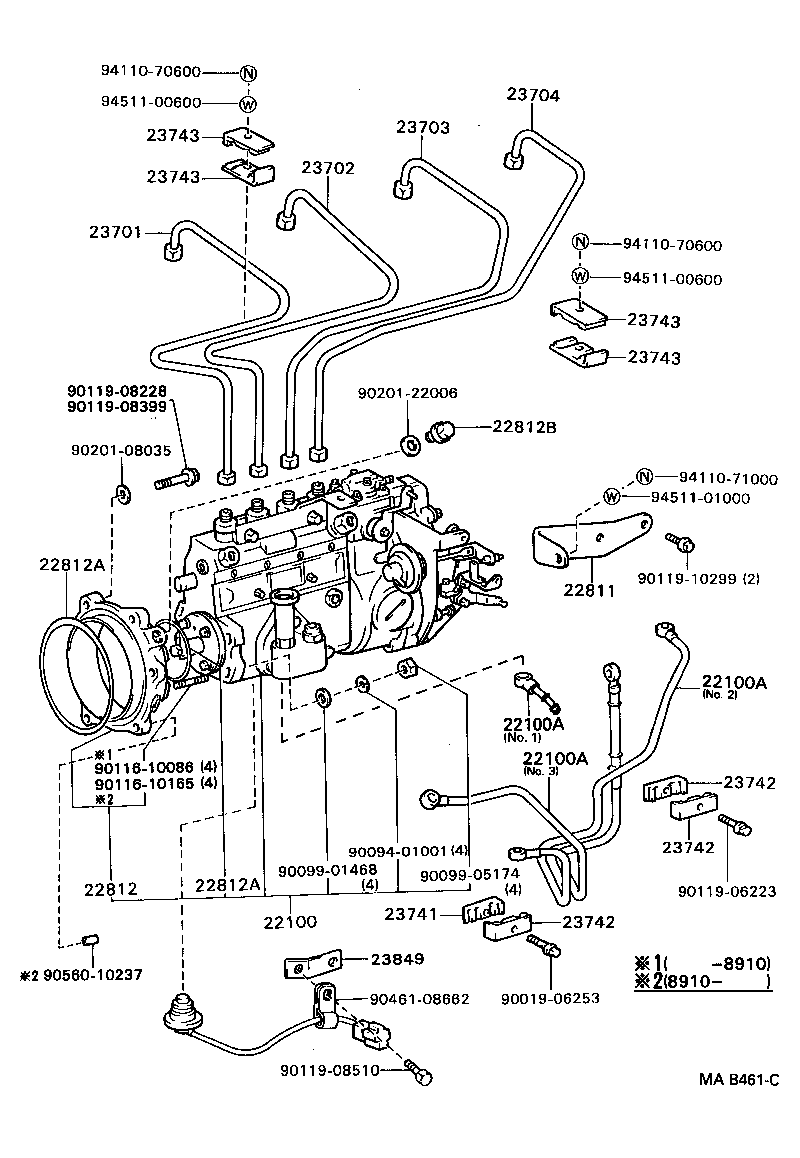

22100 - PUMP ASSY, INJECTION OR SUPPLY
22010-78120

1W..WU9#..GEN

W(HAC) & W(POWER STEERING)

 1
22010-78100

1W..WU9#..GEN

W(POWER STEERING)

 1
22010-78071

1W..WU9#..GEN

W(HAC)

 1
22010-78130

1W..WU9#..GEN

W(POWER STEERING)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23814-78011

1W..WU9#

NO.2

 1
23826-78010

1W..WU9#

NO.1

 1
23815-78010

1W..WU9#

NO.2

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23814-78011

1W..WU9#

NO.2

 1
23826-78010

1W..WU9#

NO.1

 1
23815-78010

1W..WU9#

NO.2

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23814-78011

1W..WU9#

NO.2

 1
23826-78010

1W..WU9#

NO.1

 1
23815-78010

1W..WU9#

NO.2

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-78010

1W..WU90..GEN

 1
22812 - RETAINER, INJECTION PUMP
22802-78010

1W..WU90..GEN

 1
22812A - RING, O
90301-99019

1W..WU90..GEN

CASE SIDE

 1
90301-99019

1W..WU9#..GEN

 1
90099-14072

1W..WU90..GEN

INJECTION PUMP SIDE

 1
90301-99019

1W..WU90..GEN

W(HAC OR POWER STEERING),CASE SIDE

 1
90099-14072

1W..WU90..GEN

INJECTION PUMP SIDE,W(HAC OR POWER STEERING)

 1
22812A - RING, O
90301-99019

1W..WU90..GEN

CASE SIDE

 1
90301-99019

1W..WU9#..GEN

 1
90099-14072

1W..WU90..GEN

INJECTION PUMP SIDE

 1
90301-99019

1W..WU90..GEN

W(HAC OR POWER STEERING),CASE SIDE

 1
90099-14072

1W..WU90..GEN

INJECTION PUMP SIDE,W(HAC OR POWER STEERING)

 1
22812B - PLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER
90341-22002

1W..WU90..GEN

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-78010

1W..WU9#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-78010

1W..WU9#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-78010

1W..WU9#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-78010

1W..WU9#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
90929-01058

1W..WU9#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
90929-01057

1W..WU9#

 3
23742 - CLAMP, INJECTION PIPE, NO.2
90929-01057

1W..WU9#

 3
23742 - CLAMP, INJECTION PIPE, NO.2
90929-01057

1W..WU9#

 3
23743 - CLAMP, INJECTION PIPE, NO.3
90929-01056

1W..WU9#

 4
23743 - CLAMP, INJECTION PIPE, NO.3
90929-01056

1W..WU9#

 4
23743 - CLAMP, INJECTION PIPE, NO.3
90929-01056

1W..WU9#

 4
23743 - CLAMP, INJECTION PIPE, NO.3
90929-01056

1W..WU9#

 4
Common parts
23849-78010
90019-06253
90094-01001
90099-01468
90099-05174
90116-10086
90119-06223
90119-08228
90119-08399
90119-08510
90119-10299
90201-08035
90201-22006
90461-08662
94110-70600
94110-71000
94511-00600
94511-01000

(8808-9305)1W
