WU90L-MDDT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1993
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU6#,8#,9#

Click highlighted areas on diagram

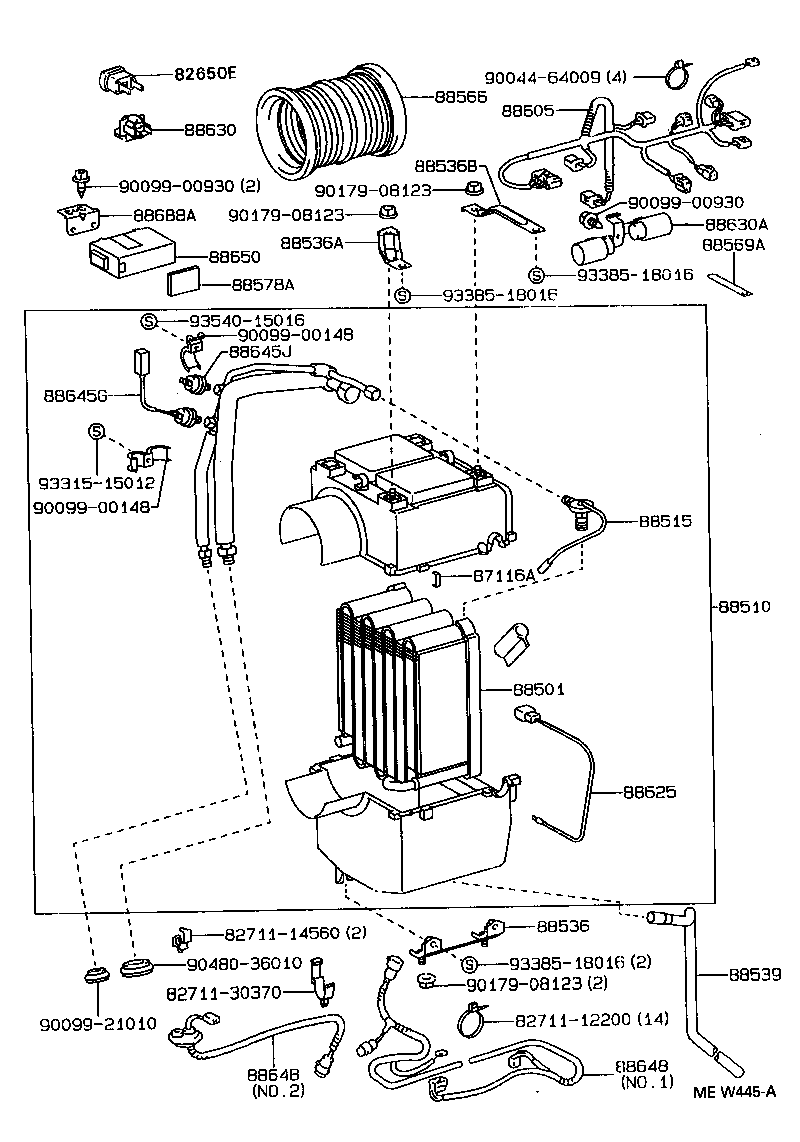

diagram 8271114110 8271114560 8271130370 87116A 88501 88510 88515 88536 88536A 88536B 88539 88566 88578A 88605 88625 88630 88630A 88645G 88645J 88648 88648 88650 88688A 88723A 9009900148 9009921010 9009932098 9017908123 9046320473 9048036003 9098602001 9161160816 9161160816 9165140825 9331515012 9354015016 9356615512 9356615512 9356615512
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

WU9#

 4
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95403

YU62..ARL;RU85,WU9#..GEN

 1
88501-95403

YU62..ARL;RU85,WU9#..GEN

 1
88501-95403

RU85,WU9#..GEN

 1
88510 - UNIT ASSY, COOLER
88510-95402

WU9#

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

WU9#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95402

WU9#

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95407

WU9#

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95408

WU9#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95412

WU9#

 1
88566 - DUCT, COOLER AIR, NO.1
88566-95408

WU9#;RU85..SA

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-95400

WU9#;YU62..ARL

 1
88578-95400

WU9#

 1
88578-95400

WU9#;YU62..ARL

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95406

WU9#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-95A00

RU85,WU9#..GEN

 1
88625-95A00

YU62..ARL;RU85,WU9#..GEN

 1
88625-95A00

YU62..ARL;RU85,WU9#..GEN

 1
88630 - RELAY ASSY, COOLER
88630-60020

RU85..SA;WU9#,YU6#,71,82

 1
88630-60020

RU85..SA;WU9#,YU6#,71,82..GEN,SA

 1
88630-60020

RU85..SA;WU9#,YU6#,71,82

 1
88630A - RELAY ASSY, COOLER
88630-95403

WU9#,YU6#,71,82..LHD

 1
88645G - SWITCH, PRESSURE
88645-17010

YU62..ARL;RU85,WU9#..GEN

 1
88645-17010

RU85,WU9#..GEN

 1
88645-17010

YU62..ARL;RU85,WU9#..GEN

 1
88645J - SWITCH, PRESSURE, NO.2
88645-95J00

WU9#

 1
88648 - WIRING, COOLER, NO.1
88648-95406

WU9#

 1
88648-95411

WU9#

 1
88648 - WIRING, COOLER, NO.1
88648-95406

WU9#

 1
88648-95411

WU9#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14030

WU9#

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-95425

RU85..SA;WU9#,YU6#,71,82

 1
88688-95425

RU85..SA;WU9#,YU6#,71,82..GEN,SA

 1
88688-95425

RU85..SA;WU9#,YU6#,71,82

 1
Common parts
82711-14110
82711-14560
82711-30370
90099-00148
90099-21010
90099-32098
90179-08123
90463-20473
90480-36003
90986-02001
91611-60816
91651-40825
93315-15012
93540-15016
93566-15512

(8808- )

Click highlighted areas on diagram

diagram 88568B
Part # Description Qty Price
88568B - FILTER, AIR
88568-95400

RU85..SA;WU9#,YU6#,71,82

 1
88568-95400

RU85..SA;WU9#,YU6#,71,82..GEN,SA

 1
88568-95400

RU85..SA;WU9#,YU6#,71,82

 1

(8808- )BU88,9#

Click highlighted areas on diagram

diagram 82650E 8271112200 8271114560 8271130370 87116A 88501 88510 88515 88536 88536A 88536B 88539 88566 88569A 88578A 88605 88625 88630 88630A 88645G 88645J 88648 88648 88650 88688A 9004464009 9009900148 9009900148 9009900930 9009900930 9009921010 9017908123 9017908123 9017908123 9048036010 9331515012 9338518016 9338518016 9338518016 9354015016
Part # Description Qty Price
Common parts
82711-12200
82711-14560
82711-30370
90044-64009
90099-00148
90099-00930
90099-21010
90179-08123
90480-36010
93315-15012
93385-18016
93540-15016

(8808- )

Click highlighted areas on diagram

diagram 88568B
Part # Description Qty Price
88568B - FILTER, AIR
88568-95400

RU85..SA;WU9#,YU6#,71,82

 1
88568-95400

RU85..SA;WU9#,YU6#,71,82..GEN,SA

 1
88568-95400

RU85..SA;WU9#,YU6#,71,82

 1

(9004-9301)WU9#

Click highlighted areas on diagram

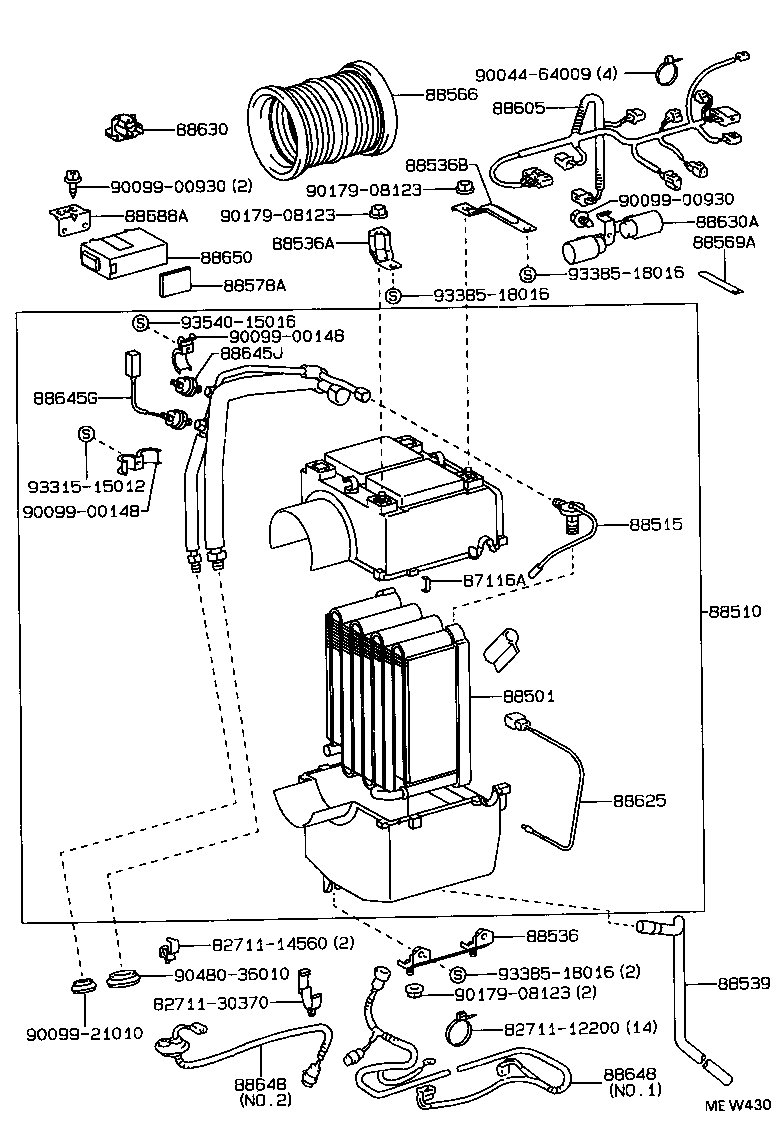

diagram 8271112200 8271114560 8271130370 87116A 88501 88510 88515 88536 88536A 88536B 88539 88566 88569A 88578A 88605 88625 88630 88630A 88645G 88645J 88648 88648 88650 88688A 9004464009 9009900148 9009900148 9009900930 9009900930 9009921010 9017908123 9017908123 9017908123 9048036010 9331515012 9338518016 9338518016 9338518016 9354015016
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

WU9#

 4
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95403

YU62..ARL;RU85,WU9#..GEN

 1
88501-95403

YU62..ARL;RU85,WU9#..GEN

 1
88501-95403

RU85,WU9#..GEN

 1
88510 - UNIT ASSY, COOLER
88510-95402

WU9#

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

WU9#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95402

WU9#

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95407

WU9#

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95408

WU9#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95412

WU9#

 1
88566 - DUCT, COOLER AIR, NO.1
88566-95408

WU9#;RU85..SA

 1
88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS)
88569-12030

WU9#

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-95400

WU9#;YU62..ARL

 1
88578-95400

WU9#

 1
88578-95400

WU9#;YU62..ARL

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95406

WU9#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-95A00

RU85,WU9#..GEN

 1
88625-95A00

YU62..ARL;RU85,WU9#..GEN

 1
88625-95A00

YU62..ARL;RU85,WU9#..GEN

 1
88630 - RELAY ASSY, COOLER
88630-60020

RU85..SA;WU9#,YU6#,71,82

 1
88630-60020

RU85..SA;WU9#,YU6#,71,82..GEN,SA

 1
88630-60020

RU85..SA;WU9#,YU6#,71,82

 1
88630A - RELAY ASSY, COOLER
88630-95403

WU9#,YU6#,71,82..LHD

 1
88645G - SWITCH, PRESSURE
88645-17010

YU62..ARL;RU85,WU9#..GEN

 1
88645-17010

RU85,WU9#..GEN

 1
88645-17010

YU62..ARL;RU85,WU9#..GEN

 1
88645J - SWITCH, PRESSURE, NO.2
88645-95J00

WU9#

 1
88648 - WIRING, COOLER, NO.1
88648-95406

WU9#

 1
88648-95411

WU9#

 1
88648 - WIRING, COOLER, NO.1
88648-95406

WU9#

 1
88648-95411

WU9#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14030

WU9#

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-95425

RU85..SA;WU9#,YU6#,71,82

 1
88688-95425

RU85..SA;WU9#,YU6#,71,82..GEN,SA

 1
88688-95425

RU85..SA;WU9#,YU6#,71,82

 1
Common parts
82711-12200
82711-14560
82711-30370
90044-64009
90099-00148
90099-00930
90099-21010
90179-08123
90480-36010
93315-15012
93385-18016
93540-15016
