WU90L-MDDT3 (1988)
Toyota Dyna 200
ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-89101 |
WU9# |
1 | ||
| 83180-89103 |
WU9# |
1 | ||
| 83180-36010 |
WU9# |
1 | ||
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-89101 |
WU9# |
1 | ||
| 83180-89103 |
WU9# |
1 | ||
| 83180-36010 |
WU9# |
1 | ||
| Common parts | ||||
| 23849-78010 | ||||
| 90119-08510 | ||||
| 90461-08662 | ||||

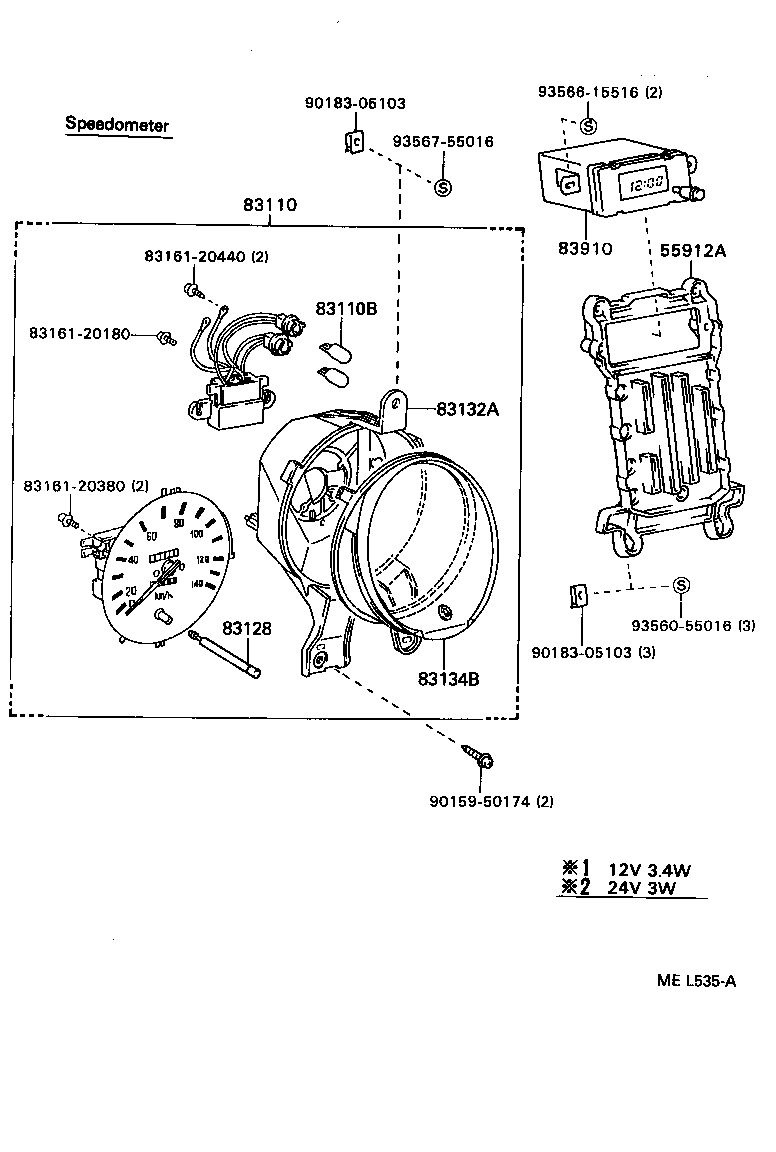

ILLUST NO. 1 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95453 |
RU85,WU9#,YU6#,71,82..GEN,SA |
1 | ||
| 83110B - BULB, SPEEDOMETER | ||||
| 99132-12034 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89300 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-95404 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-95408 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
WU9# TAIWAN SPEC |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| 93566-15516 | ||||
| 93567-55016 | ||||

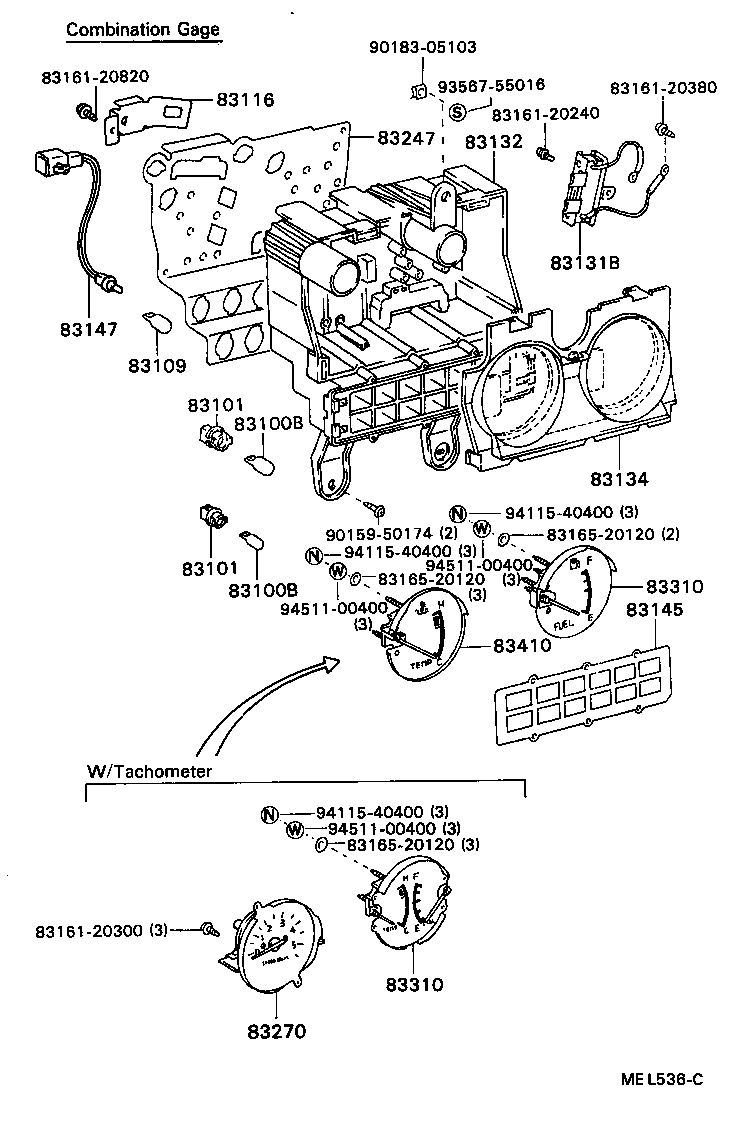

ILLUST NO. 2 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
WU9#;YU62..ARL 12V 1.2W W/O SOCKET |
2 | ||
| 99132-12034 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 90981-11018 |
WU9# 12V 1.2W W/O SOCKET |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
WU9#;YU62..ARL 12V 1.2W W/O SOCKET |
2 | ||
| 99132-12034 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 90981-11018 |
WU9# 12V 1.2W W/O SOCKET |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 83101-14040 |
WU9# 12V 1.4W |
2 | ||
| 83101-14040 |
WU9# |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 83101-14040 |
WU9# 12V 1.4W |
2 | ||
| 83101-14040 |
WU9# |
2 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-37020 |
WU9# 12V 1.7W |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-95M00 |
RU85..SA;WU9#,YU6#,71,82 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95B00 |
WU9#;YU62..ARL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95B00 |
WU9#;YU62..ARL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95B25 |
WU9# |
1 | ||
| 83145-95M26 |
WU9# |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-95M02 |
RU85..SA;WU9#,YU6#,71,82 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-95422 |
WU9# |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-37080 |
WU9# |
1 | ||
| 83242-95B03 |
WU9# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95M01 |
WU9# |
1 | ||
| 83243-95B03 |
WU9# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95M01 |
WU9# |
1 | ||
| 83243-95B03 |
WU9# |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20820 | ||||
| 83165-20120 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

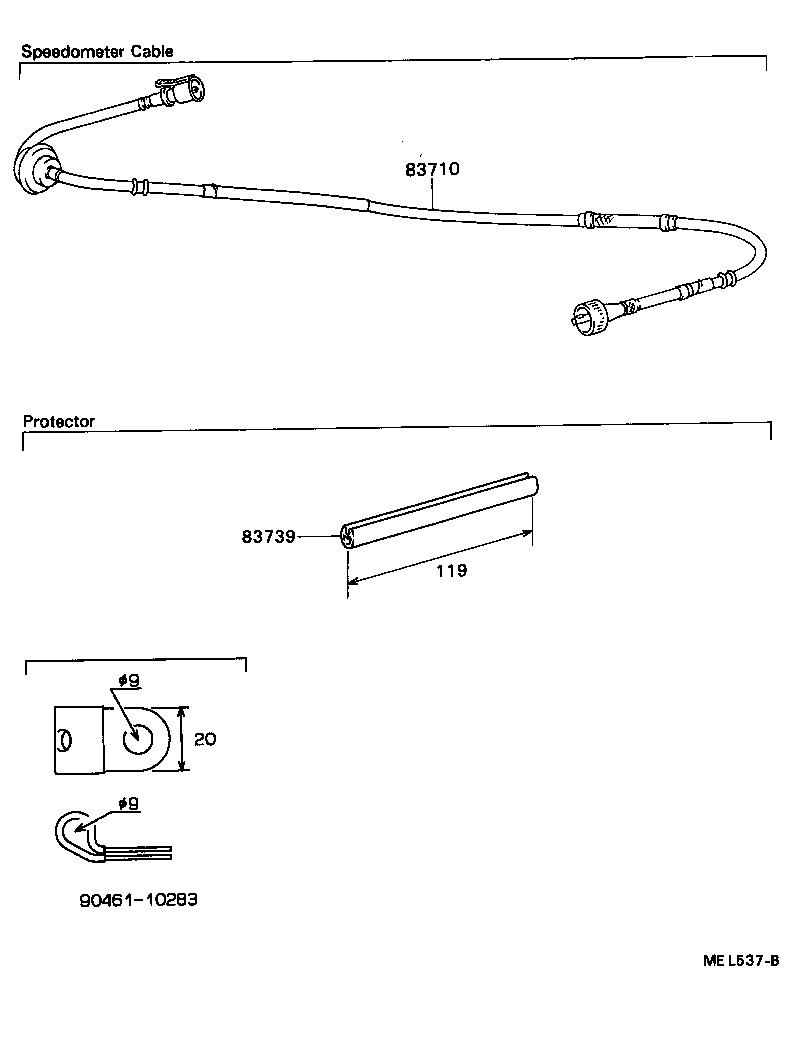

ILLUST NO. 3 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95466 |
RU85,WU9#..GEN |
1 | ||
| 83739 - PROTECTOR, SPEED CONTROL CABLE | ||||
| 83739-95400 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| Common parts | ||||
| 90461-10283 | ||||
ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-89101 |
WU9# |
1 | ||
| 83180-89103 |
WU9# |
1 | ||
| 83180-36010 |
WU9# |
1 | ||
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-89101 |
WU9# |
1 | ||
| 83180-89103 |
WU9# |
1 | ||
| 83180-36010 |
WU9# |
1 | ||
| Common parts | ||||
| 23849-78010 | ||||
| 90119-08510 | ||||
| 90461-08662 | ||||
ILLUST NO. 1 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95453 |
RU85,WU9#,YU6#,71,82..GEN,SA |
1 | ||
| 83110B - BULB, SPEEDOMETER | ||||
| 99132-12034 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89300 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-95404 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-95408 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
WU9# TAIWAN SPEC |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| 93566-15516 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
WU9#;YU62..ARL 12V 1.2W W/O SOCKET |
2 | ||
| 99132-12034 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 90981-11018 |
WU9# 12V 1.2W W/O SOCKET |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
WU9#;YU62..ARL 12V 1.2W W/O SOCKET |
2 | ||
| 99132-12034 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 90981-11018 |
WU9# 12V 1.2W W/O SOCKET |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 83101-14040 |
WU9# 12V 1.4W |
2 | ||
| 83101-14040 |
WU9# |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RU85,WU9#,YU6#,71,82..GEN 12V 3.4W |
9 | ||
| 83101-14040 |
WU9# 12V 1.4W |
2 | ||
| 83101-14040 |
WU9# |
2 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-37020 |
WU9# 12V 1.7W |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-95M00 |
RU85..SA;WU9#,YU6#,71,82 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95B00 |
WU9#;YU62..ARL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95B00 |
WU9#;YU62..ARL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95B25 |
WU9# |
1 | ||
| 83145-95M26 |
WU9# |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-95M02 |
RU85..SA;WU9#,YU6#,71,82 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-95422 |
WU9# |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-37080 |
WU9# |
1 | ||
| 83242-95B03 |
WU9# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95M01 |
WU9# |
1 | ||
| 83243-95B03 |
WU9# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95M01 |
WU9# |
1 | ||
| 83243-95B03 |
WU9# |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20820 | ||||
| 83165-20120 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
ILLUST NO. 3 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95466 |
RU85,WU9#..GEN |
1 | ||
| 83739 - PROTECTOR, SPEED CONTROL CABLE | ||||
| 83739-95400 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| Common parts | ||||
| 90461-10283 | ||||
