WU90L-MDDT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1993
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

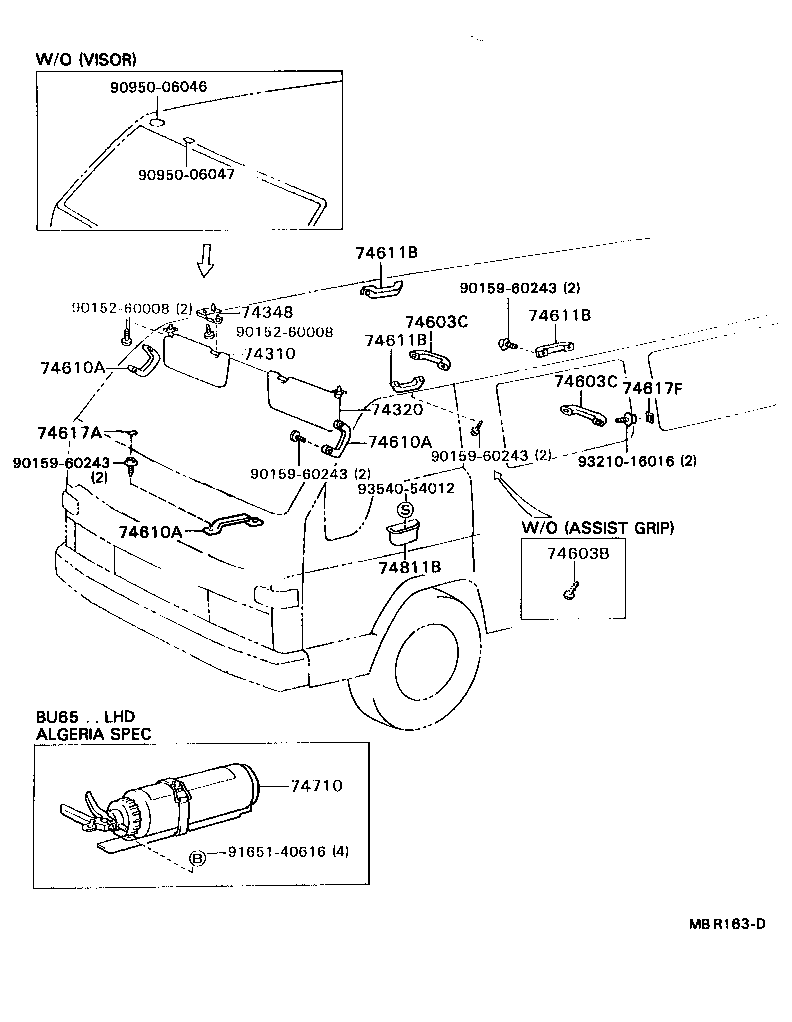

Click highlighted areas on diagram

diagram 74310 74320 74348 74603B 74603C 74603C 74610A 74610A 74610A 74611B 74611B 74611B 74617A 74617F 74710 74811B 9015260008 9015260008 9015960243 9015960243 9015960243 9015960243 9095006046 9095006047 9165140616 9321016016 9354054012
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-9544106

WU9#;RU85..SA

BROWN,TRIM4#

 1
74310-9544303

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-9542706

RU85,WU9#..GEN

BROWN,TRIM4#

 1
74320-9542903

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-1201025

WU9#;YU62..ARL

BEIGE,TRIM4#

 2
74348-1201023

WU9#;YU62..ARL

GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
74611B - GRIP, ASSIST
74611-9260106

RU85,WU9#,YU6#,82..L2,T3

BROWN,TRIM4#

 1
74610-20030B0

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74611B - GRIP, ASSIST
74611-9260106

RU85,WU9#,YU6#,82..L2,T3

BROWN,TRIM4#

 1
74610-20030B0

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74611B - GRIP, ASSIST
74611-9260106

RU85,WU9#,YU6#,82..L2,T3

BROWN,TRIM4#

 1
74610-20030B0

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74617A - PLUG, ASSIST GRIP
74617-1401050

WU9#

TAIWAN PACKAGE,BLUISH GRAY,TRIM1#

 2
74811B - HANDLE, DOOR PULL
74811-8700116

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
Common parts
90152-60008
90159-60243
90950-06046
90950-06047
91651-40616
93210-16016
93540-54012

(8808- )

Click highlighted areas on diagram

diagram 74310 74320 74348 74603B 74603C 74603C 74610A 74610A 74610A 74611B 74611B 74611B 74617A 74617F 74710 74811B 9015260008 9015260008 9015960243 9015960243 9015960243 9015960243 9095006046 9095006047 9165140616 9321016016 9354054012
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-9544106

WU9#;RU85..SA

BROWN,TRIM4#

 1
74310-9544303

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-9542706

RU85,WU9#..GEN

BROWN,TRIM4#

 1
74320-9542903

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-1201025

WU9#;YU62..ARL

BEIGE,TRIM4#

 2
74348-1201023

WU9#;YU62..ARL

GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
74611B - GRIP, ASSIST
74611-9260106

RU85,WU9#,YU6#,82..L2,T3

BROWN,TRIM4#

 1
74610-20030B0

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74611B - GRIP, ASSIST
74611-9260106

RU85,WU9#,YU6#,82..L2,T3

BROWN,TRIM4#

 1
74610-20030B0

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74611B - GRIP, ASSIST
74611-9260106

RU85,WU9#,YU6#,82..L2,T3

BROWN,TRIM4#

 1
74610-20030B0

WU9#

TAIWAN PACKAGE,GRAY,TRIM1#

 1
74617A - PLUG, ASSIST GRIP
74617-1401050

WU9#

TAIWAN PACKAGE,BLUISH GRAY,TRIM1#

 2
74811B - HANDLE, DOOR PULL
74811-8700116

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 2
Common parts
90152-60008
90159-60243
90950-06046
90950-06047
91651-40616
93210-16016
93540-54012
