WU90L-MDDT3 (1988)
Toyota Dyna 200

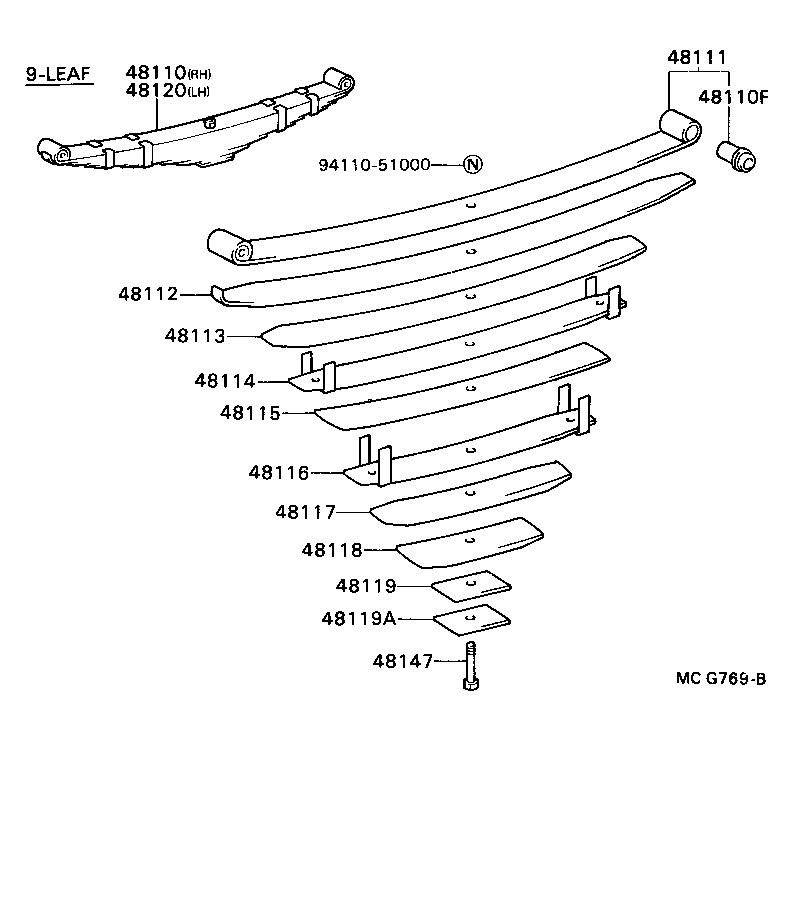

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
WU9# 8-LEAF |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
WU9# 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48101-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48101-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48113-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48113-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48102-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48102-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48115-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48115-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48103-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48103-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48117-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48118-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
WU9# 8-LEAF |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
WU9# 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B390 |
WU9# |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B390 |
WU9# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
WU9# 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48101-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48113-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48102-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48115-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
WU9# 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B390 |
WU9# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||

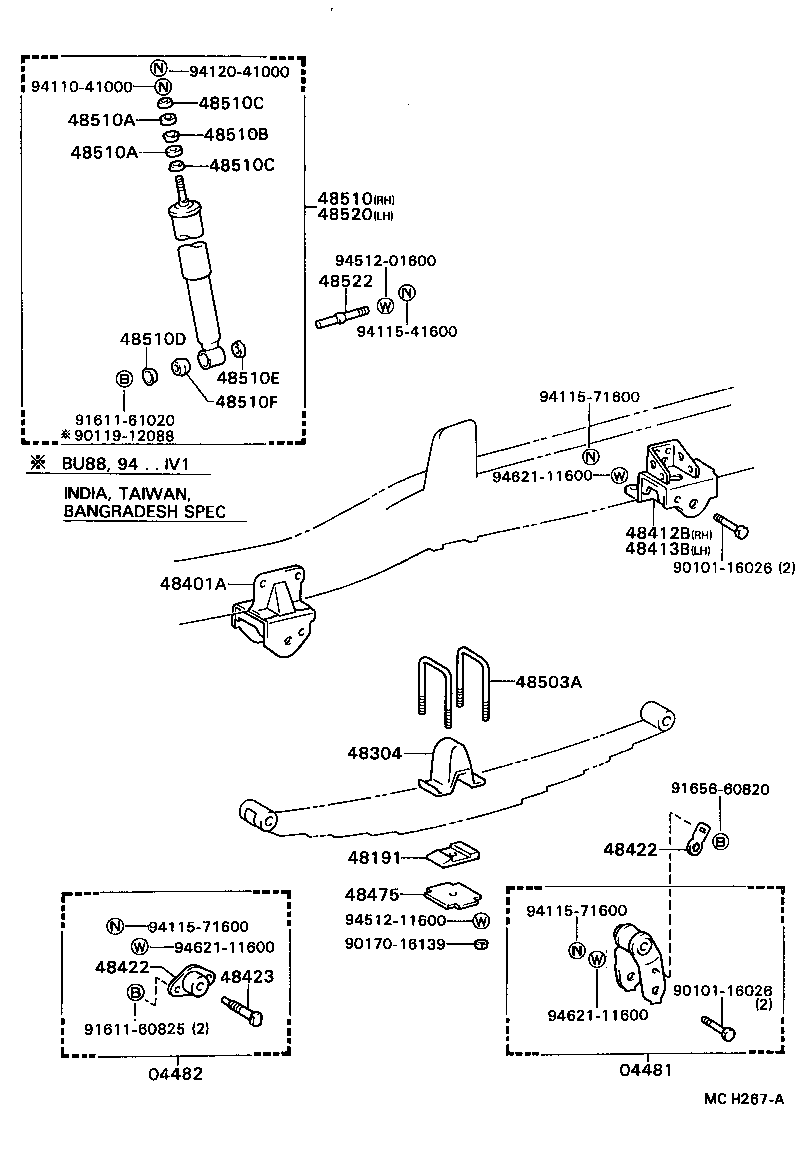

ILLUST NO. 1 OF 2(8808- )BU88,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36080 |
RU85,WU9# |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36020 |
RU85,WU9# |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
RU85,WU9# |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36110 |
WU9# |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48412-36140 |
WU9# LH |
1 | ||
| 48411-36140 |
WU9# RH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-36060 |
RU85,WU9#,YU85 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48434-36060 |
RU85,WU9#,YU85 |
1 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
WU9# RR |
4 | ||
| 48422-36050 |
WU9# FR |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
WU9# RR |
4 | ||
| 48422-36050 |
WU9# FR |
2 | ||
| 48423 - PIN, FRONT SPRING BRACKET | ||||
| 48423-36020 |
RU85,WU9# |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16015 |
WU9# L=135 |
1 | ||
| 90117-16017 |
RU85,WU9# L=130 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39525 |
WU9# MARK 48511-36140 |
1 | ||
| 48511-39526 |
WU9# MARK 48511-36140 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39526 |
WU9# MARK 48511-36140 |
1 | ||
| 48511-39525 |
WU9# MARK 48511-36140 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-12088 | ||||
| 90170-16139 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91656-60820 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94115-71600 | ||||
| 94120-41000 | ||||
| 94512-01600 | ||||
| 94512-11600 | ||||
| 94621-11600 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
WU9# 8-LEAF |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
WU9# 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48101-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48101-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48113-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48113-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48102-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48102-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48115-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48115-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48103-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48103-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48117-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48118-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
WU9# 8-LEAF |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
WU9# 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B390 |
WU9# |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B390 |
WU9# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
WU9# 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
RU85,WU9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48101-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||

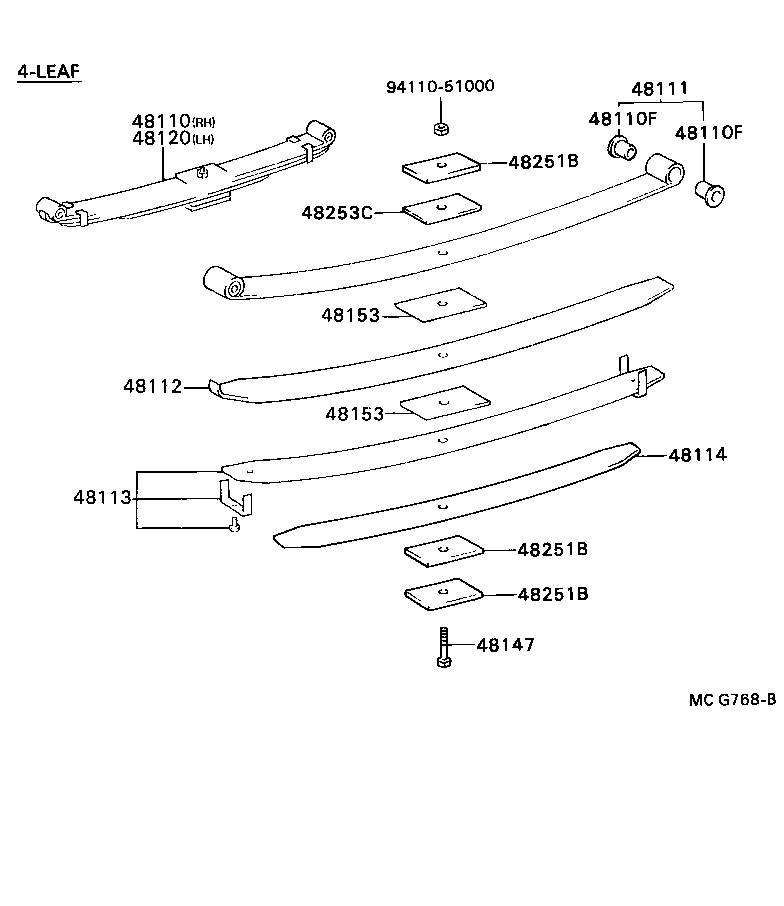

| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48112-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48113-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48102-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
WU9# DRIVER SEAT SIDE |
1 | ||
| 48115-3B400 |
WU9# PASSENGER SEAT SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
WU9# 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B390 |
WU9# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 1 OF 2(8808- )RU85,WU9#,YU85
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36080 |
RU85,WU9# |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36020 |
RU85,WU9# |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
RU85,WU9# |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36110 |
WU9# |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48412-36140 |
WU9# LH |
1 | ||
| 48411-36140 |
WU9# RH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-36060 |
RU85,WU9#,YU85 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48434-36060 |
RU85,WU9#,YU85 |
1 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
WU9# RR |
4 | ||
| 48422-36050 |
WU9# FR |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
WU9# RR |
4 | ||
| 48422-36050 |
WU9# FR |
2 | ||
| 48423 - PIN, FRONT SPRING BRACKET | ||||
| 48423-36020 |
RU85,WU9# |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16015 |
WU9# L=135 |
1 | ||
| 90117-16017 |
RU85,WU9# L=130 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39525 |
WU9# MARK 48511-36140 |
1 | ||
| 48511-39526 |
WU9# MARK 48511-36140 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
RU85,WU9#,YU6#,71,82 |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39526 |
WU9# MARK 48511-36140 |
1 | ||
| 48511-39525 |
WU9# MARK 48511-36140 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
RU85,WU9#,YU6#,71,82 |
2 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-12088 | ||||
| 90170-16139 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91656-60820 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94115-71600 | ||||
| 94120-41000 | ||||
| 94512-01600 | ||||
| 94512-11600 | ||||
| 94621-11600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
