WU90L-MDDT3 (1987)
Toyota Dyna 200
ILLUST NO. 1 OF 2(8708- )L1,L2,T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-36181 |
RU85,WU9#,YU6#,81..L1,L2,T3 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
RU85,WU9#,YU6#,81..(L1,L2,T3)..(GEN,SA) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
RU85,WU9#,YU6#,81..(L1,L2,T3)..(GEN,SA) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
RU85,WU9#,YU6#,81..L1,L2,T3 *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
RU85,WU9#,YU6#,81..L1,L2,T3 *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
RU85,WU9#,YU6#,81..L1,L2,T3 *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
RU85,WU9#,YU6#,81..L1,L2,T3 *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
RU85,WU9#,YU6#,81..L1,L2,T3 *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B100 |
RU85,WU9#,YU62,81..WT..(GEN,SA) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
YU62;RU85,WU9#,YU63,71,81..GEN,SA |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-55080 |
WU9# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-27010 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36140 |
RU85,WU9#,YU62,81..T3..(GEN,SA) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
RU85,WU9#,YU6#,81..L1,L2,T3 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36090 |
RU85,WU9#,YU62,81..T3..(GEN,SA) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36100 |
RU85,WU9#,YU62,81..T3 |
2 | ||
| Common parts | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 91611-41025 | ||||
| 91612-40616 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||

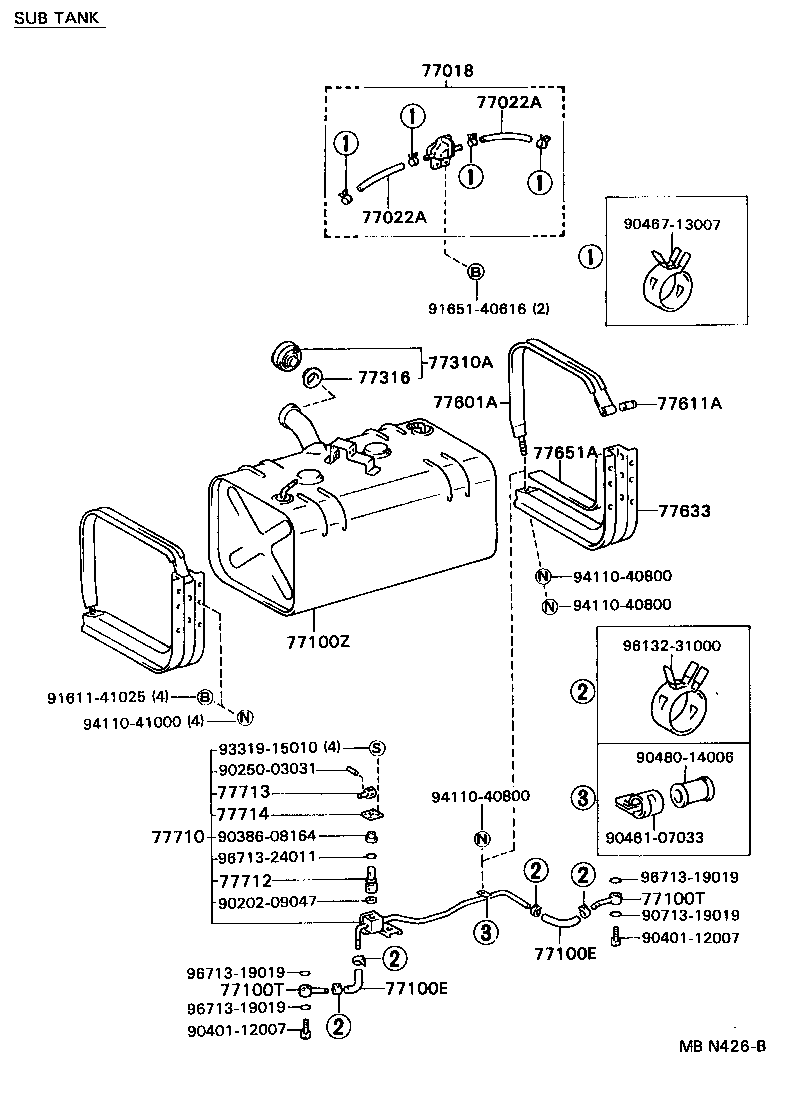

(8708- )YU81 ; (8708- )RU85,WU9#..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
RU85,WU9#,YU6#,81..(L1,L2,T3)..(GEN,SA) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
RU85,WU9#,YU6#,81..L1,L2,T3 *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
RU85,WU9#,YU6#,81..L1,L2,T3 *H,L=300 |
2 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 95332-10014 |
YU81;RU85,WU9#..GEN *H,L=140 |
2 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 95332-10014 |
YU81;RU85,WU9#..GEN *H,L=140 |
2 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-10008 |
YU81;RU85,WU9#..GEN |
2 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-10008 |
YU81;RU85,WU9#..GEN |
2 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-3B130 |
YU81;RU85,WU9#..GEN |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-55080 |
WU9# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-27010 |
RU85,WU9#,YU6#,71,81 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36140 |
RU85,WU9#,YU62,81..T3..(GEN,SA) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
RU85,WU9#,YU6#,81..L1,L2,T3 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36090 |
RU85,WU9#,YU62,81..T3..(GEN,SA) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36100 |
RU85,WU9#,YU62,81..T3 |
2 | ||
| 77710 - COCK ASSY, FUEL CHANGE | ||||
| 77710-36030 |
YU81;RU85,WU9#..GEN |
1 | ||
| 77712 - VALVE, FUEL CHANGE COCK | ||||
| 77712-36011 |
YU81;RU85,WU9#..GEN |
1 | ||
| 77713 - LEVER, FUEL CHANGE COCK | ||||
| 77713-36010 |
YU81;RU85,WU9#..GEN |
1 | ||
| 77714 - CAP, FUEL CHANGE COCK | ||||
| 77714-36010 |
YU81;RU85,WU9#..GEN |
1 | ||
| Common parts | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90461-07033 | ||||
| 90467-13007 | ||||
| 90480-14006 | ||||
| 90713-19019 | ||||
| 91611-41025 | ||||
| 91651-40616 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-31000 | ||||
| 96713-19019 | ||||
| 96713-24011 | ||||

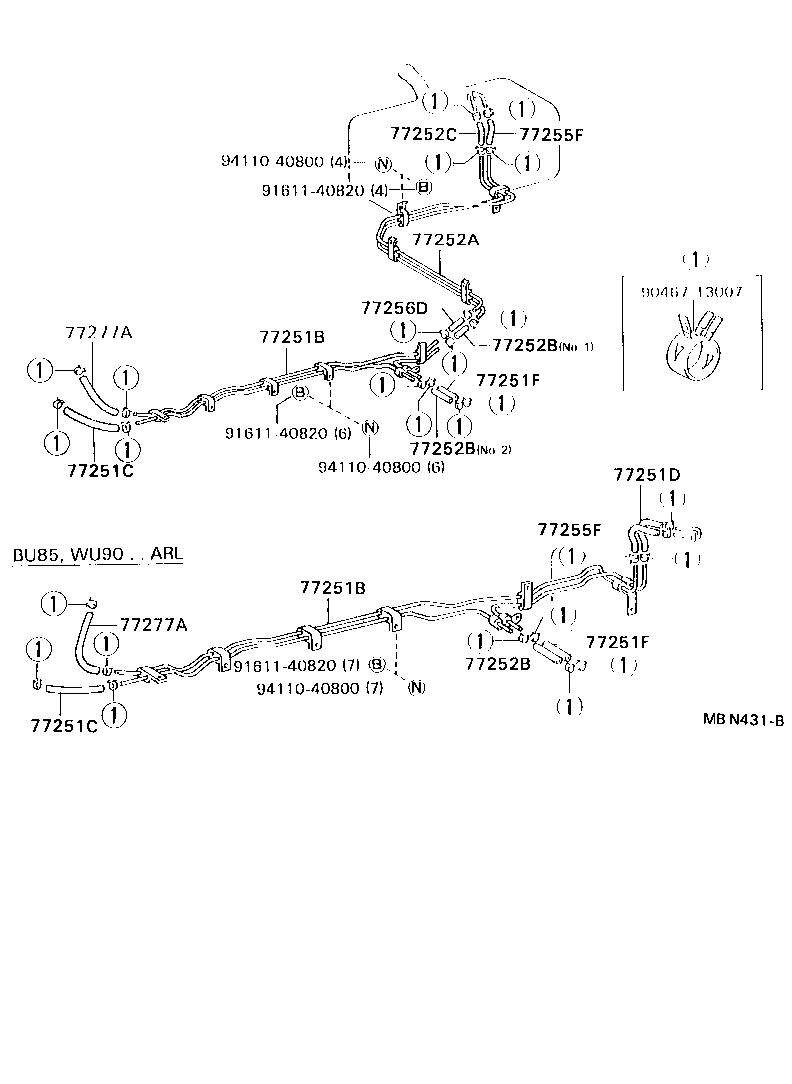

ILLUST NO. 2 OF 2(8708- )WU9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77206-36171 |
WU9#..GEN |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77206-36171 |
WU9#..GEN |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 23271-56050 |
WU9#..ARL,GEN *H,L=180 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 23271-56050 |
WU9#..ARL,GEN *H,L=180 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36040 |
WU9#..GEN |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36040 |
WU9#..GEN |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77205-36220 |
WU90..GEN |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08020 |
WU90,YU71..GEN L=200,ID=8 |
1 | ||
| 77259-36030 |
WU9#..GEN NO.2 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08020 |
WU90,YU71..GEN L=200,ID=8 |
1 | ||
| 77259-36030 |
WU9#..GEN NO.2 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08020 |
WU90,YU71..GEN L=200,ID=8 |
1 | ||
| 77259-36030 |
WU9#..GEN NO.2 |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08030 |
WU9#..GEN |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-08030 |
WU9#..GEN *H,L=300 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-08030 |
WU9#..GEN *H,L=300 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-08020 |
WU90,YU71..GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
WU9#..ARL,GEN *H,L=180 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
WU9#..ARL,GEN *H,L=180 |
1 | ||
| Common parts | ||||
| 90467-13007 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
