WU90L-MDDT3 (1987)
Toyota Dyna 200
(8708- )B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22618-77020 | ||||
| 90099-00894 | ||||
| 90099-00928 | ||||
| 90099-01451 | ||||
| 90099-18010 | ||||
| 90401-10006 | ||||
| 91611-40814 | ||||
| 94712-77121 | ||||
| Linked diagrams | ||||
| 2206 | ||||

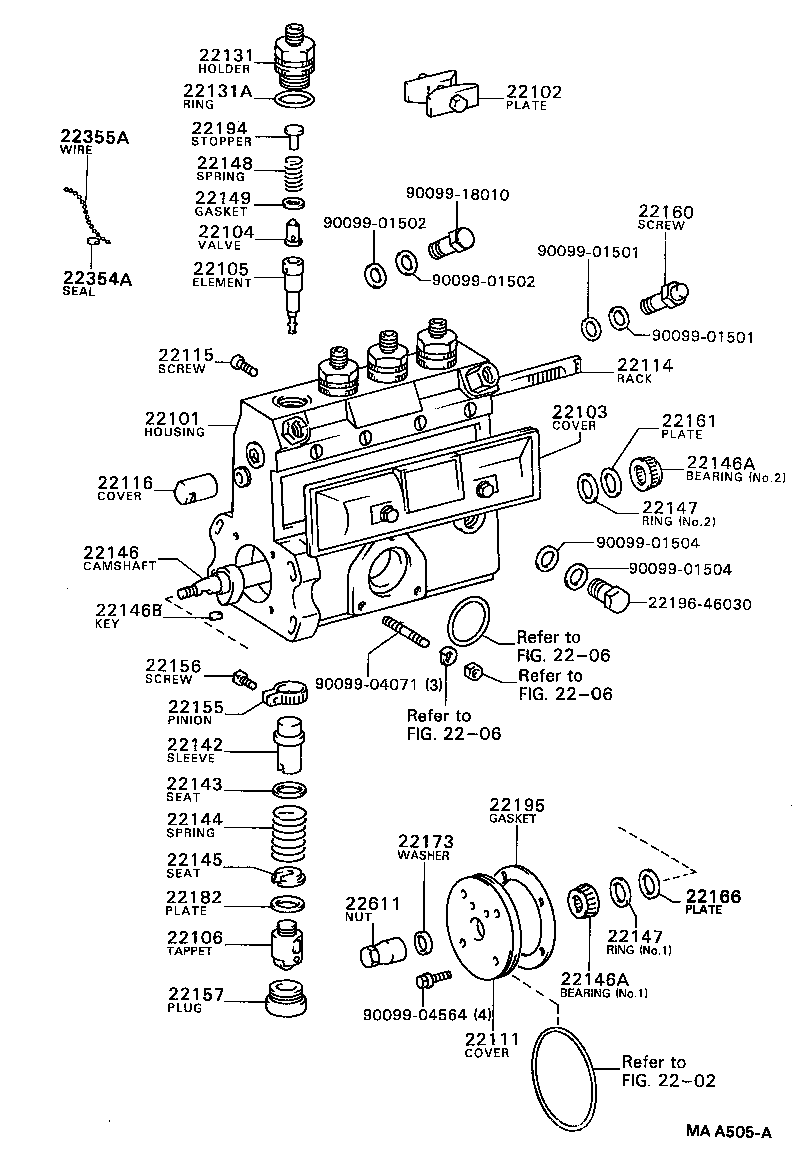

ILLUST NO. 1 OF 2(8808-9505)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22395-54010 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||

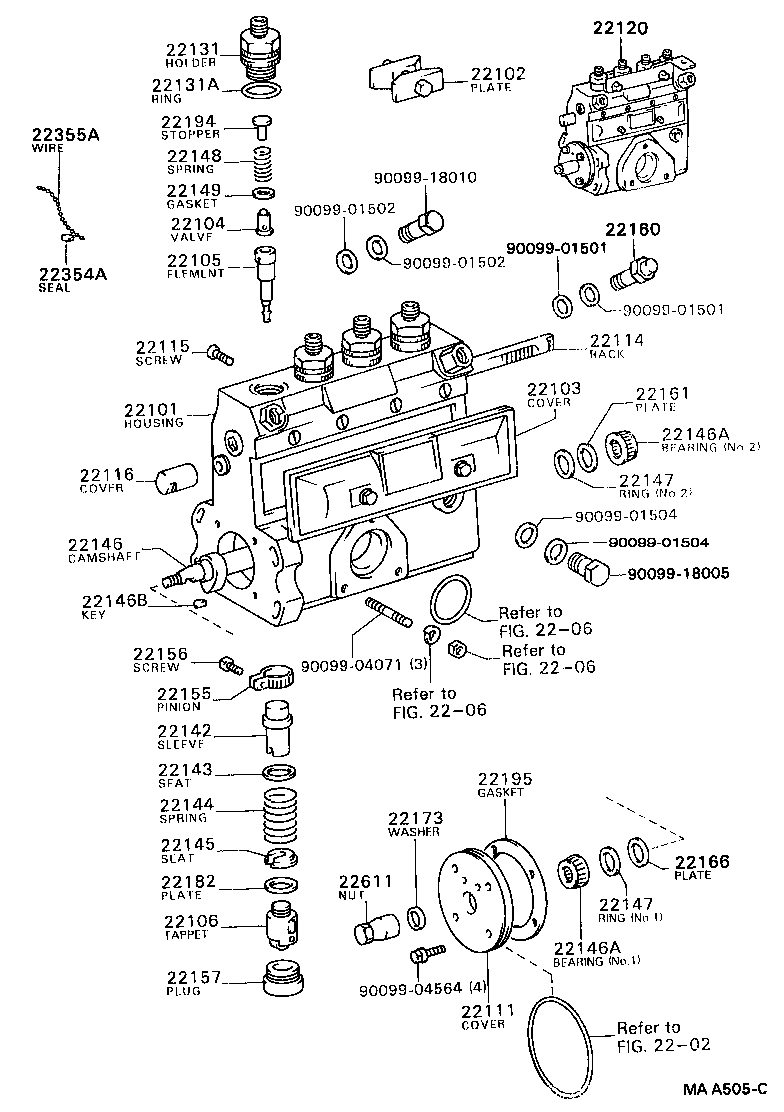

(8708- )1W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22190-78030 |
1W..WU90..GEN |
1 | ||
| 22190-78030 |
1W..WU90..GEN |
1 | ||
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-58230 |
1W..WU90..GEN |
2 | ||
| 22102-58230 |
1W..WU90..GEN |
2 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-78030 |
1W..WU90..GEN |
1 | ||
| 22103-78030 |
1W..WU90..GEN |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-78030 |
1W..WU90..GEN |
4 | ||
| 22104-78030 |
1W..WU90..GEN |
4 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-78030 |
1W..WU90..GEN |
4 | ||
| 22105-78030 |
1W..WU90..GEN |
4 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
1W..WU90..GEN |
4 | ||
| 22106-46010 |
1W..WU90..GEN |
4 | ||
| 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING | ||||
| 22111-78030 |
1W..WU90..GEN |
1 | ||
| 22111-78030 |
1W..WU90..GEN |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-36010 |
1W..WU90..GEN |
1 | ||
| 22114-36010 |
1W..WU90..GEN |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| 22115-77020 |
1W..WU9#..GEN W(HAC) OR W(HAC) & W(POWER STEERING) |
2 | ||
| 22115-77020 |
1W..WU90..GEN W(POWER STEERING) |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-56230 |
1W..WU90..GEN |
1 | ||
| 22116-56230 |
1W..WU90..GEN |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-78030 |
1W..WU90..GEN |
4 | ||
| 22131-78030 |
1W..WU90..GEN |
4 | ||
| 22131A - RING, O(FOR DELIVERY VALVE HOLDER) | ||||
| 90099-14070 |
1W..WU90..GEN |
4 | ||
| 90099-14070 |
1W..WU90..GEN |
4 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-77020 |
1W..WU90..GEN |
4 | ||
| 22142-77020 |
1W..WU90..GEN |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-78030 |
1W..WU90..GEN |
4 | ||
| 22143-78030 |
1W..WU90..GEN |
4 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
1W..WU90..GEN |
4 | ||
| 22144-46010 |
1W..WU90..GEN |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-78030 |
1W..WU90..GEN |
4 | ||
| 22145-78030 |
1W..WU90..GEN |
4 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-78040 |
1W..WU90..GEN |
1 | ||
| 22146-78040 |
1W..WU90..GEN |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10151 |
1W..WU90..GEN NO.1,W(HAC OR POWER STEERING) |
1 | ||
| 90099-10087 |
1W..WU90..GEN NO.2,W(HAC OR POWER STEERING) |
1 | ||
| 90099-10151 |
1W..WU90..GEN NO.1 |
1 | ||
| 90099-10087 |
1W..WU90..GEN NO.2 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10151 |
1W..WU90..GEN NO.1,W(HAC OR POWER STEERING) |
1 | ||
| 90099-10087 |
1W..WU90..GEN NO.2,W(HAC OR POWER STEERING) |
1 | ||
| 90099-10151 |
1W..WU90..GEN NO.1 |
1 | ||
| 90099-10087 |
1W..WU90..GEN NO.2 |
1 | ||
| 22146B - KEY(FOR INJECTION PUMP CAMSHAFT) | ||||
| 95161-20413 |
1W..WU90..GEN |
1 | ||
| 95161-20413 |
1W..WU90..GEN |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
1W..WU90..GEN NO.2,W(HAC OR POWER STEERING) |
1 | ||
| 22147-78030 |
1W..WU90..GEN NO.1 |
1 | ||
| 22147-78030 |
1W..WU90..GEN NO.1,W(HAC OR POWER STEERING) |
1 | ||
| 22147-77020 |
1W..WU90..GEN NO.2 |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
1W..WU90..GEN NO.2,W(HAC OR POWER STEERING) |
1 | ||
| 22147-78030 |
1W..WU90..GEN NO.1 |
1 | ||
| 22147-78030 |
1W..WU90..GEN NO.1,W(HAC OR POWER STEERING) |
1 | ||
| 22147-77020 |
1W..WU90..GEN NO.2 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-78030 |
1W..WU90..GEN |
4 | ||
| 22148-78030 |
1W..WU90..GEN |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-78030 |
1W..WU90..GEN |
4 | ||
| 22149-78030 |
1W..WU90..GEN |
4 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-76010 |
1W..WU90..GEN |
4 | ||
| 22155-76010 |
1W..WU90..GEN |
4 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
1W..WU90..GEN |
4 | ||
| 22156-76010 |
1W..WU90..GEN |
4 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48023 |
1W..WU90..GEN |
4 | ||
| 22157-48023 |
1W..WU90..GEN |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-78030 |
1W..WU90..GEN |
1 | ||
| 22160-78030 |
1W..WU90..GEN |
1 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
1W..WU90..GEN T=0.10 |
3 | ||
| 22163-76010 |
1W..WU90..GEN T=0.14 |
3 | ||
| 22166-78031 |
1W..WU90..GEN T=1.50 |
3 | ||
| 22166-76010 |
1W..WU90..GEN T=0.50 |
3 | ||
| 22162-76010 |
1W..WU90..GEN T=0.12 |
3 | ||
| 22166-78030 |
1W..WU90..GEN T=1.00 |
3 | ||
| 22165-76010 |
1W..WU90..GEN T=0.18 |
3 | ||
| 22164-76010 |
1W..WU90..GEN T=0.16 |
3 | ||
| 22162-76010 |
1W..WU90..GEN T=0.12 |
3 | ||
| 22161-76010 |
1W..WU90..GEN T=0.10 |
3 | ||
| 22165-76010 |
1W..WU90..GEN T=0.18 |
3 | ||
| 22164-76010 |
1W..WU90..GEN T=0.16 |
3 | ||
| 22166-76010 |
1W..WU90..GEN T=0.50 |
3 | ||
| 22166-78030 |
1W..WU90..GEN T=1.00 |
3 | ||
| 22163-76010 |
1W..WU90..GEN T=0.14 |
3 | ||
| 22166-78031 |
1W..WU90..GEN T=1.50 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| 22166-78032 |
1W..WU90..GEN T=0.10 |
3 | ||
| 22166-78036 |
1W..WU90..GEN T=1.00 |
3 | ||
| 22166-78033 |
1W..WU90..GEN T=0.15 |
3 | ||
| 22166-78035 |
1W..WU90..GEN T=0.50 |
3 | ||
| 22166-78034 |
1W..WU90..GEN T=0.30 |
3 | ||
| 22166-78037 |
1W..WU90..GEN T=1.50 |
3 | ||
| 22166-78034 |
1W..WU90..GEN T=0.30 |
3 | ||
| 22166-78032 |
1W..WU90..GEN T=0.10 |
3 | ||
| 22166-78036 |
1W..WU90..GEN T=1.00 |
3 | ||
| 22166-78037 |
1W..WU90..GEN T=1.50 |
3 | ||
| 22166-78035 |
1W..WU90..GEN T=0.50 |
3 | ||
| 22166-78033 |
1W..WU90..GEN T=0.15 |
3 | ||
| 22173 - WASHER, SPRING | ||||
| 90099-01500 |
1W..WU90..GEN |
1 | ||
| 90099-01500 |
1W..WU90..GEN |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-46010 |
1W..WU90..GEN T=0.30 |
1 | ||
| 22186-46010 |
1W..WU90..GEN T=0.50 |
1 | ||
| 22185-48010 |
1W..WU90..GEN T=0.15 |
1 | ||
| 22187-46010 |
1W..WU90..GEN T=0.60 |
1 | ||
| 22186-78030 |
1W..WU90..GEN T=0.13 |
1 | ||
| 22188-46010 |
1W..WU90..GEN T=0.70 |
1 | ||
| 22185-46010 |
1W..WU90..GEN T=0.40 |
1 | ||
| 22189-48035 |
1W..WU90..GEN T=1.30 |
1 | ||
| 22189-48031 |
1W..WU90..GEN T=0.90 |
1 | ||
| 22189-48032 |
1W..WU90..GEN T=1.00 |
1 | ||
| 22189-48033 |
1W..WU90..GEN T=1.10 |
1 | ||
| 22189-48034 |
1W..WU90..GEN T=1.20 |
1 | ||
| 22189-48036 |
1W..WU90..GEN T=1.40 |
1 | ||
| 22189-46010 |
1W..WU90..GEN T=0.80 |
1 | ||
| 22185-46010 |
1W..WU90..GEN T=0.40 |
1 | ||
| 22183-46010 |
1W..WU90..GEN T=0.20 |
1 | ||
| 22184-46010 |
1W..WU90..GEN T=0.30 |
1 | ||
| 22182-46010 |
1W..WU90..GEN T=0.10 |
1 | ||
| 22188-46010 |
1W..WU90..GEN T=0.70 |
1 | ||
| 22187-46010 |
1W..WU90..GEN T=0.60 |
1 | ||
| 22189-48036 |
1W..WU90..GEN T=1.40 |
1 | ||
| 22186-46010 |
1W..WU90..GEN T=0.50 |
1 | ||
| 22185-48010 |
1W..WU90..GEN T=0.15 |
1 | ||
| 22189-46010 |
1W..WU90..GEN T=0.80 |
1 | ||
| 22189-48034 |
1W..WU90..GEN T=1.20 |
1 | ||
| 22189-48033 |
1W..WU90..GEN T=1.10 |
1 | ||
| 22189-48032 |
1W..WU90..GEN T=1.00 |
1 | ||
| 22189-48031 |
1W..WU90..GEN T=0.90 |
1 | ||
| 22189-48035 |
1W..WU90..GEN T=1.30 |
1 | ||
| 22186-78030 |
1W..WU90..GEN T=0.13 |
1 | ||
| 22194 - STOPPER, DELIVERY VALVE | ||||
| 22194-78030 |
1W..WU90..GEN |
4 | ||
| 22194-78030 |
1W..WU90..GEN |
4 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-78030 |
1W..WU90..GEN |
1 | ||
| 22195-78030 |
1W..WU90..GEN |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
1W..WU9#..GEN W(HAC) & W(POWER STEERING) |
5 | ||
| 22354-77050 |
1W..WU9#..GEN W(POWER STEERING) |
3 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
1W..WU9# |
3 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-78030 |
1W..WU90..GEN |
1 | ||
| 22611-78030 |
1W..WU90..GEN |
1 | ||
| Common parts | ||||
| 22196-46030 | ||||
| 90099-01501 | ||||
| 90099-01502 | ||||
| 90099-01504 | ||||
| 90099-04071 | ||||
| 90099-04564 | ||||
| 90099-18010 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2206 | ||||
(8808-9305)1W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-01501 | ||||
| 90099-01502 | ||||
| 90099-01504 | ||||
| 90099-04071 | ||||
| 90099-04564 | ||||
| 90099-18005 | ||||
| 90099-18010 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2206 | ||||
