WU90L-MDDT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

24V 25A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9010510041 9011908344 9017906158 9165140616 9331515012
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90105-10041
90119-08344
90179-06158
91651-40616
93315-15012

(8708- )

Click highlighted areas on diagram

12V 45A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9004179064 9009080509 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9010510041 9011908344 9017906158 9165140616 9331915008
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90090-80509
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90105-10041
90119-08344
90179-06158
91651-40616
93319-15008

(8708- )1W

Click highlighted areas on diagram

24V 30A

diagram 1905 27020 27113 2714778010 2715178010 2716178010 27310 27310C 27312 2731278010 27313 27316 27330 27350 27350B 27353A 27356A 27370A 27371 27372 27373 2737878010 2737878020 2738378010 2738778010 2738978010 27410 27411 27412A 27412A 27441 27700A 2790078010 9010110110 9011910305 9017906158 9020110048 9411071000 9451101000 9461111001 9461111001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27040-78030

1W..WU9#

12V 40A

 1
27040-78020

1W..WU90..LHD

24V 30A,CHINA SPEC

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27135-78010

1W..WU90..LHD

CHINA SPEC

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-78010

1W..WU9#

 2
27310-78020

1W..WU90..LHD

CHINA SPEC

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
27315-78010

1W..WU90..LHD

CHINA SPEC

 1
27312 - PLATE, RETAINER
27312-57060

1W..WU9#

 1
27312-78020

1W..WU90..LHD

CHINA SPEC,NO.2

 1
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

1W..WU9#

 1
27313-78010

1W..WU90..LHD

CHINA SPEC

 1
27316 - PACKING, RETAINER PLATE, ALTERNATOR
27316-78010

1W..WU90..LHD

CHINA SPEC

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-78010

1W..WU9#

 1
27330-78030

1W..WU90..LHD

CHINA SPEC

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56140

1W..WU9#

 1
27350-78010

1W..WU90..LHD

CHINA SPEC

 1
27350B - CONDENSER, ALTERNATOR
27355-78010

1W..WU90..LHD

CHINA SPEC

 1
90099-52066

1W..WU9#

 1
27353A - HOLDER, W/RECTIFIER
27353-78010

1W..WU9#

 1
27353-78020

1W..WU90..LHD

CHINA SPEC

 1
27356A - HOLDER SUB-ASSY, RECTIFIER
27356-78010

1W..WU90..LHD

CHINA SPEC

 1
27356-78020

1W..WU9#

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-78010

1W..WU90..LHD

CHINA SPEC

 1
27371 - BRUSH, ALTERNATOR
27373-78010

1W..WU90..LHD

CHINA SPEC

 2
27371-56070

1W..WU9#

 4
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

1W..WU9#

 2
27372-78010

1W..WU90..LHD

CHINA SPEC

 2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-57070

1W..WU9#

 1
27383-78020

1W..WU90..LHD

CHINA SPEC,NO.2

 1
27410 - STATOR ASSY, ALTERNATOR
27410-78030

1W..WU90..LHD

CHINA SPEC

 1
27410-78010

1W..WU9#

 1
27411 - PULLEY, ALTERNATOR
27430-78010

1W..WU9#

 1
27430-78020

1W..WU90..LHD

CHINA SPEC

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-78010

1W..WU90..LHD

CHINA SPEC

 2
27412-57060

1W..WU9#

 2
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-78010

1W..WU90..LHD

CHINA SPEC

 2
27412-57060

1W..WU9#

 2
27441 - FAN, ALTERNATOR
27441-78010

1W..WU90..LHD

CHINA SPEC

 1
27441-56090

1W..WU9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-57060

1W..WU9#

 1
27700-78010

1W..WU90..LHD

CHINA SPEC

 1
Common parts
27147-78010
27151-78010
27161-78010
27312-78010
27378-78010
27378-78020
27383-78010
27387-78010
27389-78010
27900-78010
90101-10110
90119-10305
90179-06158
90201-10048
94110-71000
94511-01000
94611-11001
Linked diagrams
1905

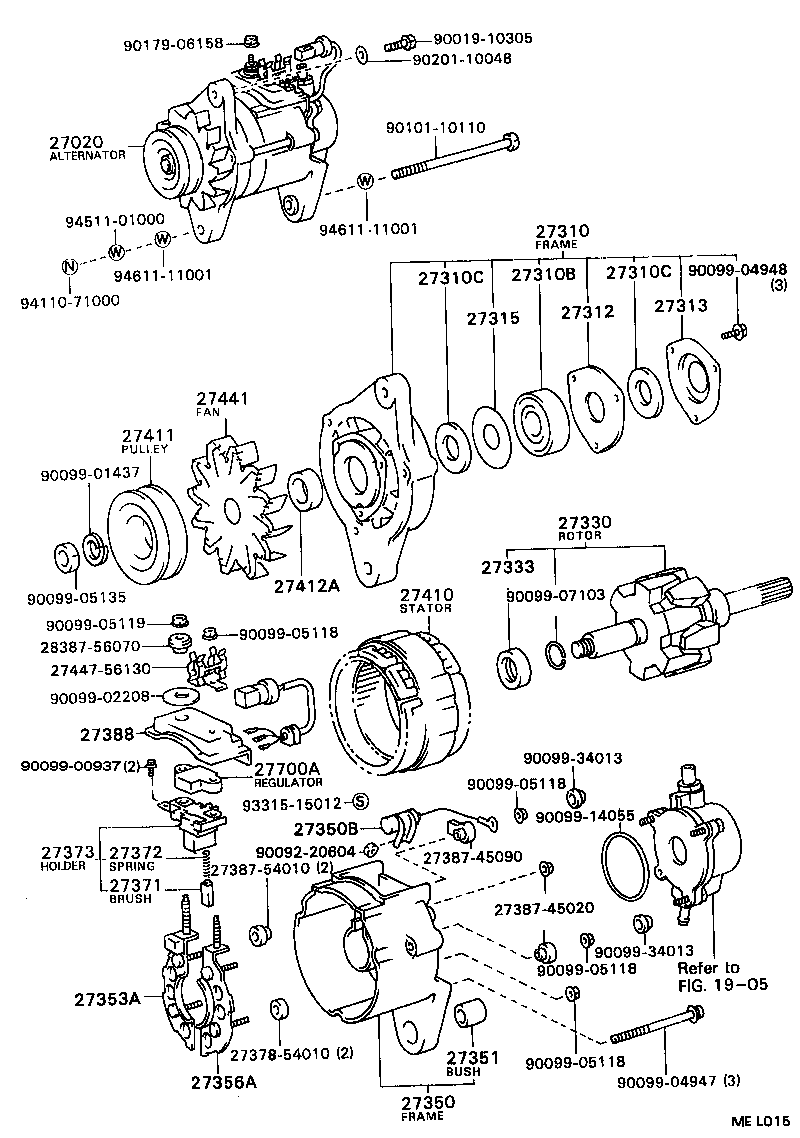

(8708- )1W

Click highlighted areas on diagram

12V 40A

diagram 1905 27020 27310 27310B 27310C 27310C 27312 27313 27315 27330 27330B 27333 27350 27350B 27351 27353A 27356A 27371 27372 27373 2737845020 2737854010 2738745090 2738754010 27388 27410 27411 27412A 27441 2744756130 27700A 2838756070 9009900937 9009901437 9009902208 9009904947 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9009914055 9009920604 9009934013 9009934013 9010110110 9011910305 9017906158 9020110048 9331515012 9411071000 9451101000 9461111001 9461111001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27040-78030

1W..WU9#

12V 40A

 1
27040-78020

1W..WU90..LHD

24V 30A,CHINA SPEC

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-78010

1W..WU9#

 2
27310-78020

1W..WU90..LHD

CHINA SPEC

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

1W..WU9#

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
27315-78010

1W..WU90..LHD

CHINA SPEC

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
27315-78010

1W..WU90..LHD

CHINA SPEC

 1
27312 - PLATE, RETAINER
27312-57060

1W..WU9#

 1
27312-78020

1W..WU90..LHD

CHINA SPEC,NO.2

 1
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

1W..WU9#

 1
27313-78010

1W..WU90..LHD

CHINA SPEC

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

1W..WU9#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-78010

1W..WU9#

 1
27330-78030

1W..WU90..LHD

CHINA SPEC

 1
27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

1W..WU9#

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56140

1W..WU9#

 1
27350-78010

1W..WU90..LHD

CHINA SPEC

 1
27350B - CONDENSER, ALTERNATOR
27355-78010

1W..WU90..LHD

CHINA SPEC

 1
90099-52066

1W..WU9#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

1W..WU9#

 2
27353A - HOLDER, W/RECTIFIER
27353-78010

1W..WU9#

 1
27353-78020

1W..WU90..LHD

CHINA SPEC

 1
27356A - HOLDER SUB-ASSY, RECTIFIER
27356-78010

1W..WU90..LHD

CHINA SPEC

 1
27356-78020

1W..WU9#

 1
27371 - BRUSH, ALTERNATOR
27373-78010

1W..WU90..LHD

CHINA SPEC

 2
27371-56070

1W..WU9#

 4
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

1W..WU9#

 2
27372-78010

1W..WU90..LHD

CHINA SPEC

 2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-57070

1W..WU9#

 1
27383-78020

1W..WU90..LHD

CHINA SPEC,NO.2

 1
27388 - COVER, ALTERNATOR BRUSH
27388-54070

1W..WU9#

 1
27410 - STATOR ASSY, ALTERNATOR
27410-78030

1W..WU90..LHD

CHINA SPEC

 1
27410-78010

1W..WU9#

 1
27411 - PULLEY, ALTERNATOR
27430-78010

1W..WU9#

 1
27430-78020

1W..WU90..LHD

CHINA SPEC

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-78010

1W..WU90..LHD

CHINA SPEC

 2
27412-57060

1W..WU9#

 2
27441 - FAN, ALTERNATOR
27441-78010

1W..WU90..LHD

CHINA SPEC

 1
27441-56090

1W..WU9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-57060

1W..WU9#

 1
27700-78010

1W..WU90..LHD

CHINA SPEC

 1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27447-56130
28387-56070
90099-00937
90099-01437
90099-02208
90099-04947
90099-04948
90099-05118
90099-05119
90099-05135
90099-14055
90099-20604
90099-34013
90101-10110
90119-10305
90179-06158
90201-10048
93315-15012
94110-71000
94511-01000
94611-11001
Linked diagrams
1905

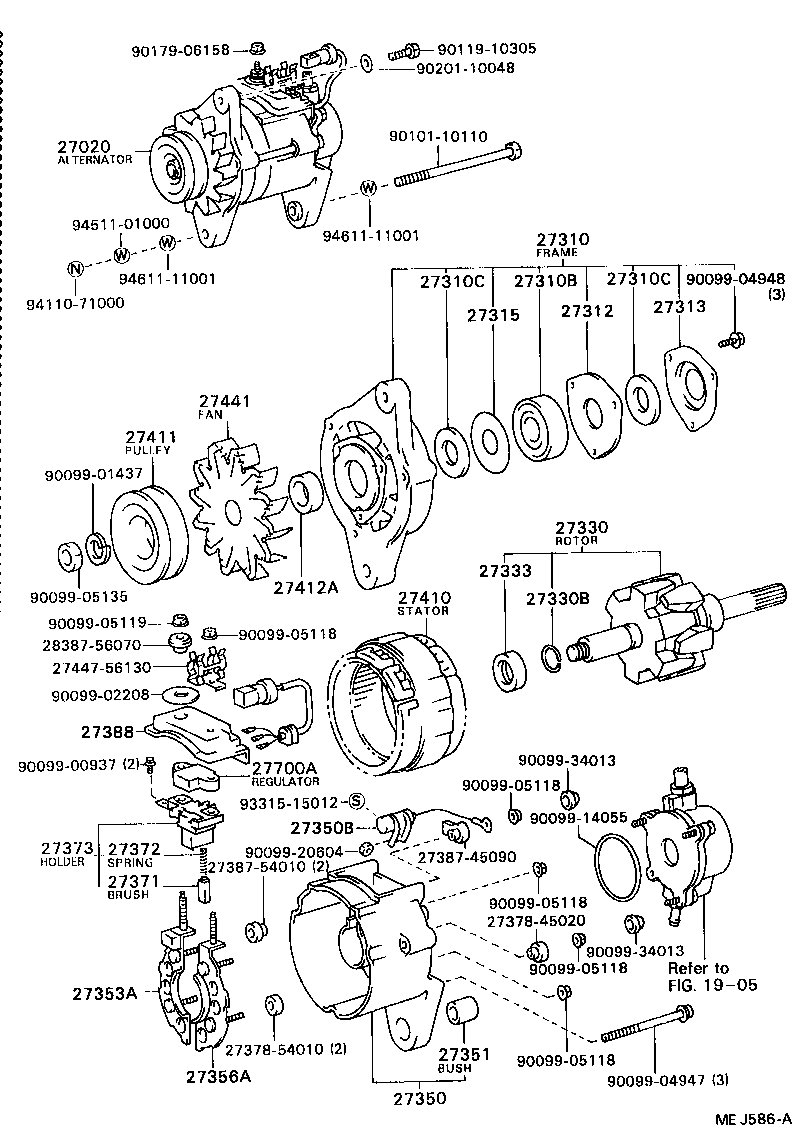

(8808-9106)1W
