WU90L-MDDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )RU85,WU9#..LHD

Click highlighted areas on diagram

diagram 38901D 38902B 38902C 38908A 38974 9161160816 9411041000 9451101000
Part # Description Qty Price
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-93105

WU9#..LHD;RU85..GEN..IV3

 1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-93105

WU9#..LHD;RU85..GEN..IV3

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90389-16001

WU9#..LHD;RU85..GEN..IV3

 1
38908A - KNOB SUB-ASSY, CONTROL LEVER
38908-93104

WU9#..LHD;RU85..GEN..IV3

 1
38974 - SHAFT, POWER TAKE-OFF CONTROL ARM
38974-93100

WU9#..LHD;RU85..GEN..IV3

 1
Common parts
91611-60816
94110-41000
94511-01000

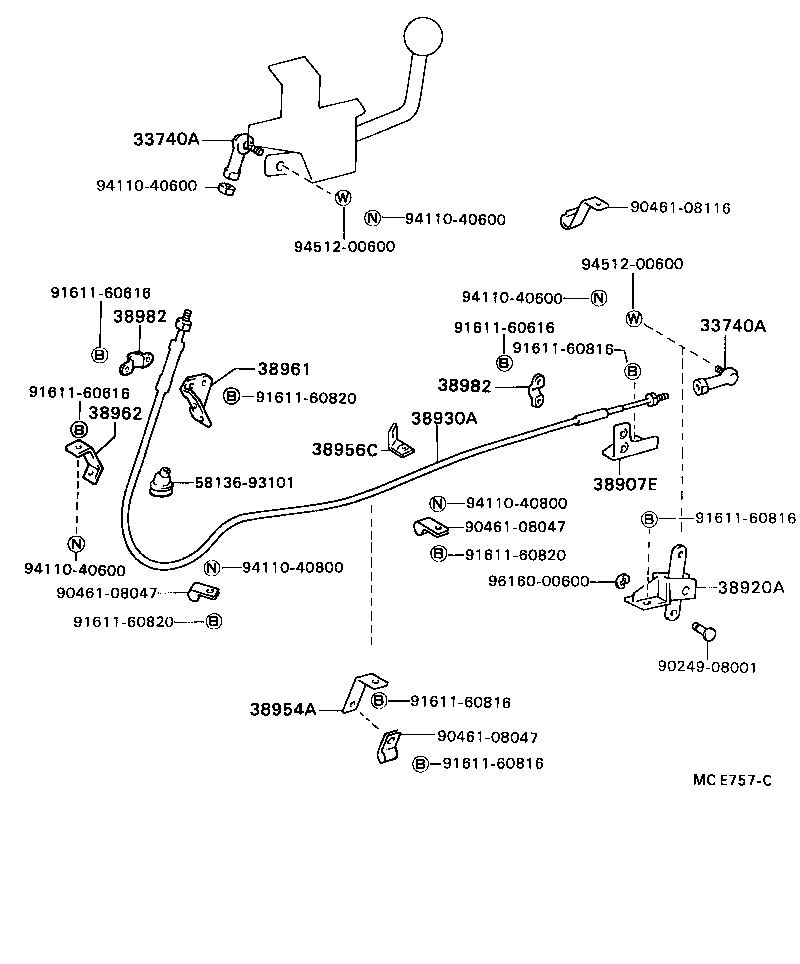

ILLUST NO. 2 OF 2(8708- )RU85,WU9#..LHD

Click highlighted areas on diagram

diagram 33740A 33740A 38907E 38920A 38930A 38954A 38956C 38961 38962 38982 38982 5813693101 9024908001 9046108047 9046108047 9046108047 9046108116 9161160616 9161160616 9161160616 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9411040600 9411040800 9411040800 9451200600 9451200600 9616000600
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

RU85..GEN..IV3;WU9#,YU62,81..WT..(ARL,GEN)

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

RU85..GEN..IV3;WU9#,YU62,81..WT..(ARL,GEN)

 2
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93110

WU9#..LHD

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93101

WU9#..LHD

 1
38930A - CABLE ASSY, PUSH PULL
38930-93120

WU9#..LHD;RU85..GEN..IV3

 1
38961 - BRACKET, CABLE CLAMP, NO.1
38961-93105

WU9#..LHD;RU85..GEN..IV3

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-93100

WU9#..LHD;RU85..GEN..IV3

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

RU85..GEN..IV3;WU9#,YU62,81..WT..(ARL,GEN)

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

RU85..GEN..IV3;WU9#,YU62,81..WT..(ARL,GEN)

 2
Common parts
58136-93101
90249-08001
90461-08047
90461-08116
91611-60616
91611-60816
91611-60820
94110-40600
94110-40800
94512-00600
96160-00600
