WU90L-MDDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

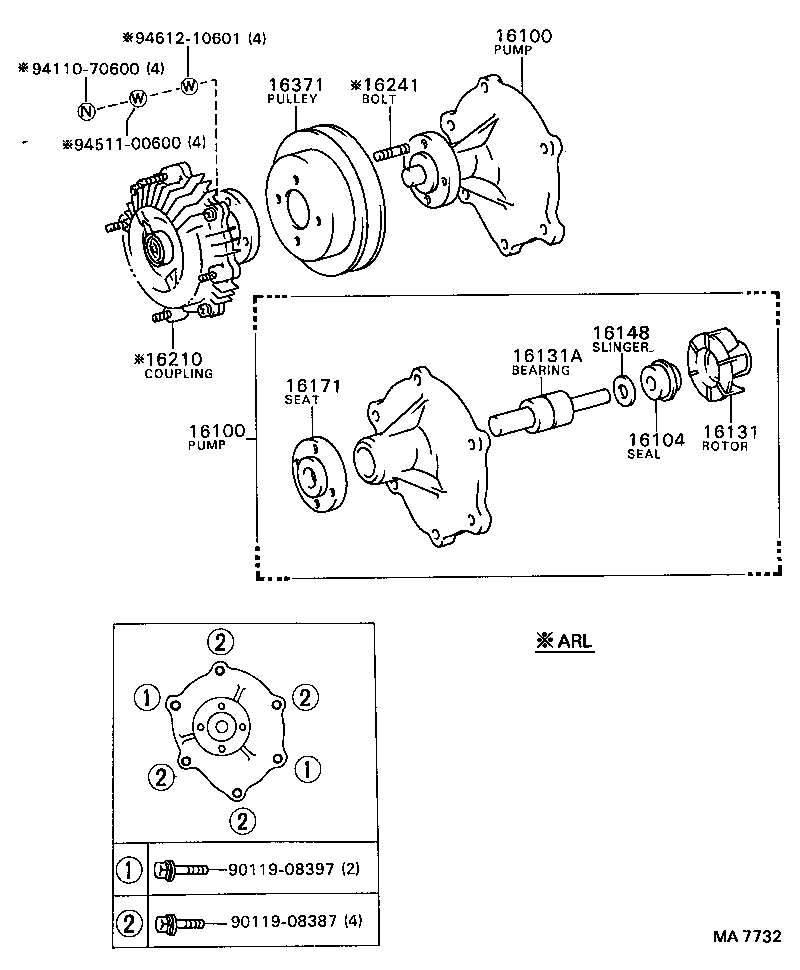

(8708- )1W

Click highlighted areas on diagram

diagram 16100 16100 16104 16131 16131A 16148 16171 16210 16241 16371 9011908387 9011908397 9411070600 9451100600 9461210601
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-78010

1W..WU9#

 1
16100 - PUMP ASSY, ENGINE WATER
16100-78010

1W..WU9#

 1
16104 - SEAL SET, WATER PUMP
16104-78010

1W..WU9#

 1
16131 - ROTOR, WATER PUMP
16131-78010

1W..WU9#

 1
16131A - BEARING, WATER PUMP
90369-30050

1W..WU9#

 1
16148 - SLINGER, WATER PUMP
16148-78010

1W..WU9#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-78010

1W..WU9#

 1
16371 - PULLEY, FAN
16173-78010

1W..WU9#

 1
Common parts
90119-08387
90119-08397
94110-70600
94511-00600
94612-10601

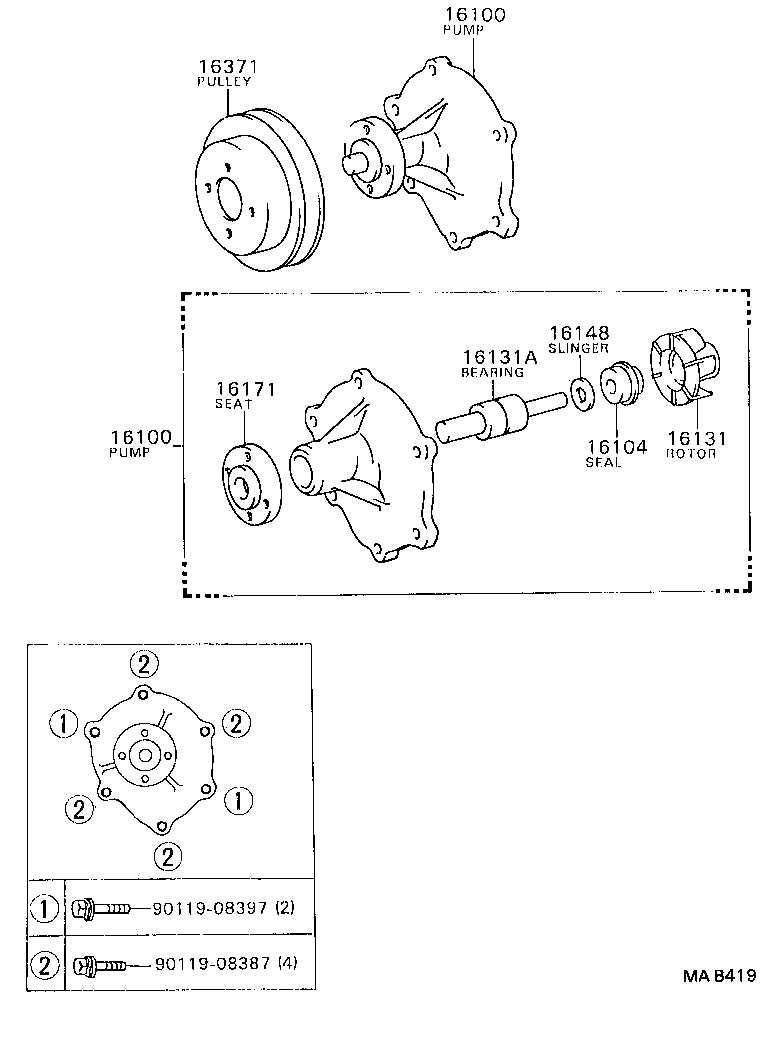

(8808-9305)1W

Click highlighted areas on diagram

diagram 16100 16100 16104 16131 16131A 16148 16171 16371 9011908387 9011908397
Part # Description Qty Price
Common parts
90119-08387
90119-08397
