WU90L-MDDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 1W
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15115 15121 15121 15122 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908088 9017908088 9166160816 9212260832 9212260832 9322016012 9322016012
Part # Description Qty Price
Common parts
90179-08088
91661-60816
92122-60832
93220-16012

(8708- )1W

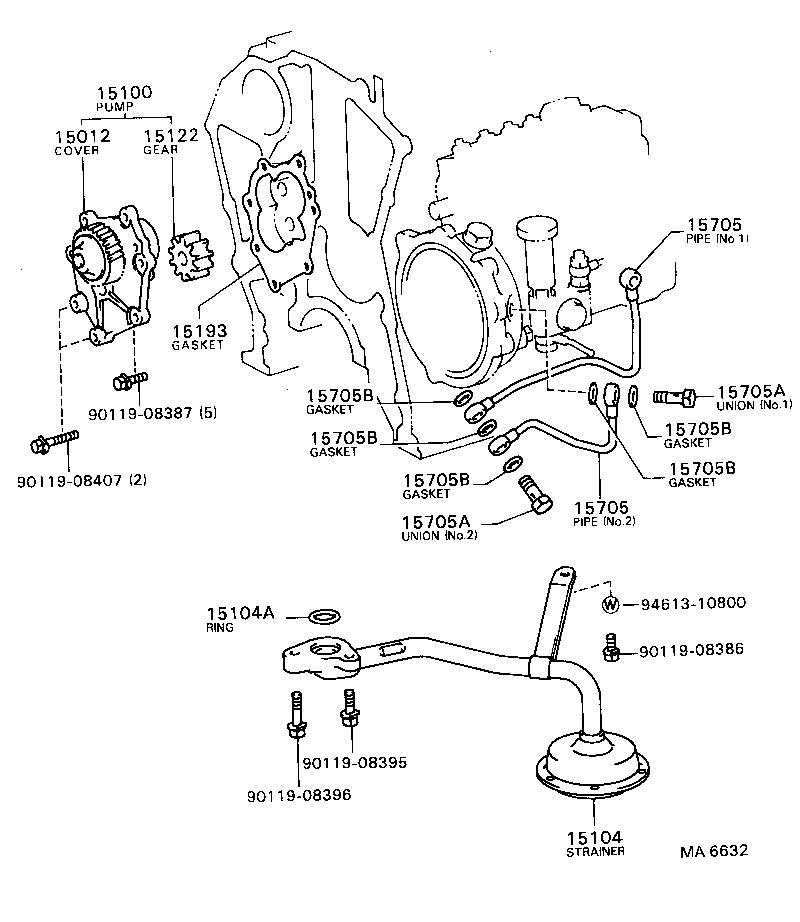

Click highlighted areas on diagram

diagram 15012 15100 15104 15104A 15122 15193 15705 15705 15705A 15705A 15705B 15705B 15705B 15705B 15705B 9011908386 9011908387 9011908395 9011908396 9011908407 9461310800
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-78010

1W..WU9#

 1
15100 - PUMP ASSY, OIL
15110-78010

1W..WU9#

 1
15104 - STRAINER SUB-ASSY, OIL
15401-78010

1W..WU9#

 1
15104A - RING, O(FOR OIL STRAINER)
90301-21003

1W..WU9#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-78010

1W..WU9#

 1
15193 - GASKET, OIL PUMP
15193-78010

1W..WU9#

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
15772-78010

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15771-78010

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
15772-78010

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15771-78010

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10016

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
90401-10017

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10016

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
90401-10017

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
Common parts
90119-08386
90119-08387
90119-08395
90119-08396
90119-08407
94613-10800

(8808-8910)1W

Click highlighted areas on diagram

diagram 15012 15100 15104 15104A 15122 15193 15705 15705 15705A 15705A 15705B 15705B 15705B 15705B 15705B 9011908386 9011908387 9011908395 9011908396 9011908407 9461310800
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-78010

1W..WU9#

 1
15100 - PUMP ASSY, OIL
15110-78010

1W..WU9#

 1
15104 - STRAINER SUB-ASSY, OIL
15401-78010

1W..WU9#

 1
15104A - RING, O(FOR OIL STRAINER)
90301-21003

1W..WU9#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-78010

1W..WU9#

 1
15193 - GASKET, OIL PUMP
15193-78010

1W..WU9#

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
15772-78010

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15771-78010

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
15772-78010

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15771-78010

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10016

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
90401-10017

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10016

1W..WU90..GEN

NO.1,W(HAC OR POWER STEERING)

 1
90401-10017

1W..WU90..GEN

NO.2,W(HAC OR POWER STEERING)

 1
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90202-10011

1W..WU90..GEN

 5
Common parts
90119-08386
90119-08387
90119-08395
90119-08396
90119-08407
94613-10800
