RU85R-MDDHTN3 (1988)
Toyota Dyna 200
ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-3618001 |
RU85,YU62,82..RHD BLACK,TRIM4# |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
RU85,YU62,8#..RHD |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-25010 |
RU85,YU62,82..RHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46114A - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
RU85,YU62,8#..RHD |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10004 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-35024 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 91111-71070 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36350 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-36290 |
RU85,YU85..SA |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-36290 |
RU85,YU85..SA |
1 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-25026 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-36160 |
WU9#;RU85,YU85..SA |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-36160 |
WU9#;RU85,YU85..SA |
1 | ||
| Common parts | ||||
| 90119-08704 | ||||
| 90170-08204 | ||||
| 90179-08123 | ||||
| 90461-08225 | ||||
| 90468-08001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94120-40600 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||

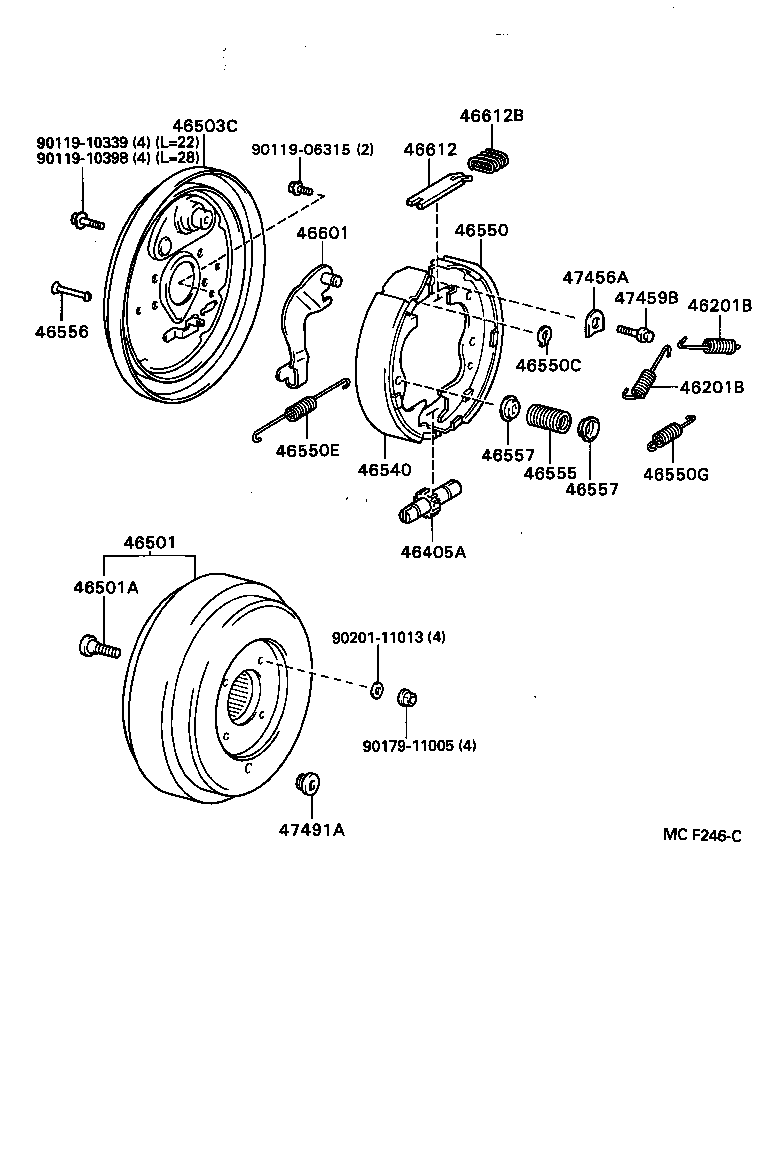

ILLUST NO. 3 OF 3(8808- )WU9# ; (8808- )RU85..SA ; (9403-)YU85
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
WU9#;RU85,YU85..SA PRIMARY |
1 | ||
| 90507-20020 |
WU9#;RU85,YU85..SA SECONDARY |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
WU9#;RU85,YU85..SA PRIMARY |
1 | ||
| 90507-20020 |
WU9#;RU85,YU85..SA SECONDARY |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
WU9#;RU85,YU85..SA |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36150 |
WU9#;RU85..SA |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36060 |
WU9#;RU85,YU85..SA |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-36020 |
WU9#;RU85..SA |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-36020 |
WU9#;RU85..SA |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06013 |
YU82..SA;RU85,WU9# |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
WU9#;RU85,YU85..SA |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14055 |
WU9#;RU85,YU85..SA |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
WU9#;RU85,YU85..SA |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
WU9#;RU85,YU85..SA |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
YU82..SA;RU85,WU9#,YU85 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
YU82..SA;RU85,WU9#,YU85 |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36050 |
WU9#;RU85..SA |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36050 |
WU9#;RU85,YU85..SA |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
WU9#;RU85,YU85..SA |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
WU9#;RU85,YU85..SA |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
WU9#;RU85,YU85..SA |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 47491-22020 |
WU9#;RU85,YU85..SA |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-10339 | ||||
| 90119-10398 | ||||
| 90179-11005 | ||||
| 90201-11013 | ||||

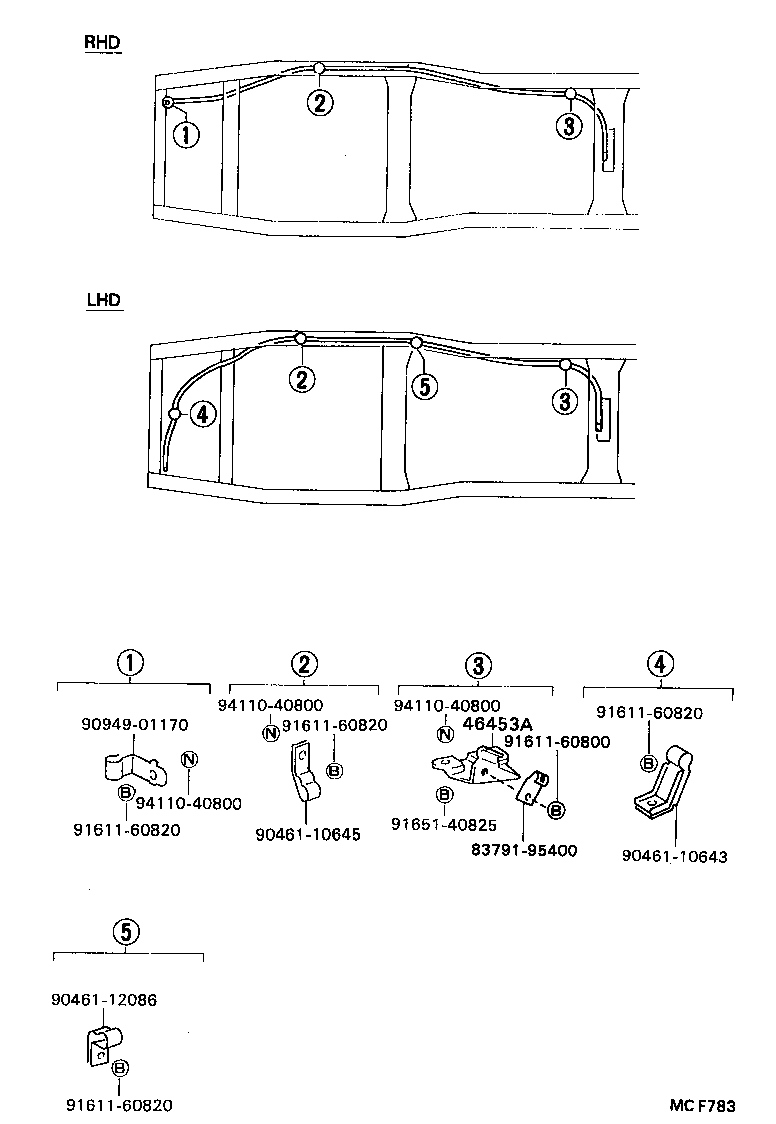

ILLUST NO. 2 OF 3(8808- )RU85,WU9# ; (9403- )YU85
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-36030 |
RU85,WU9#,YU85 |
1 | ||
| Common parts | ||||
| 83791-95400 | ||||
| 90461-10643 | ||||
| 90461-10645 | ||||
| 90461-12086 | ||||
| 90949-01170 | ||||
| 91611-60800 | ||||
| 91611-60820 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-3618001 |
RU85,YU62,82..RHD BLACK,TRIM4# |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
RU85,YU62,8#..RHD |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-25010 |
RU85,YU62,82..RHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46114A - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
RU85,YU62,8#..RHD |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10004 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-35024 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 91111-71070 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36350 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-36290 |
RU85,YU85..SA |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-36290 |
RU85,YU85..SA |
1 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-25026 |
RU85,WU9#,YU6#,71,8# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-36160 |
WU9#;RU85,YU85..SA |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-36160 |
WU9#;RU85,YU85..SA |
1 | ||
| Common parts | ||||
| 90119-08704 | ||||
| 90170-08204 | ||||
| 90179-08123 | ||||
| 90461-08225 | ||||
| 90468-08001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94120-40600 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||
