RU85L-MDDHT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 22R
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

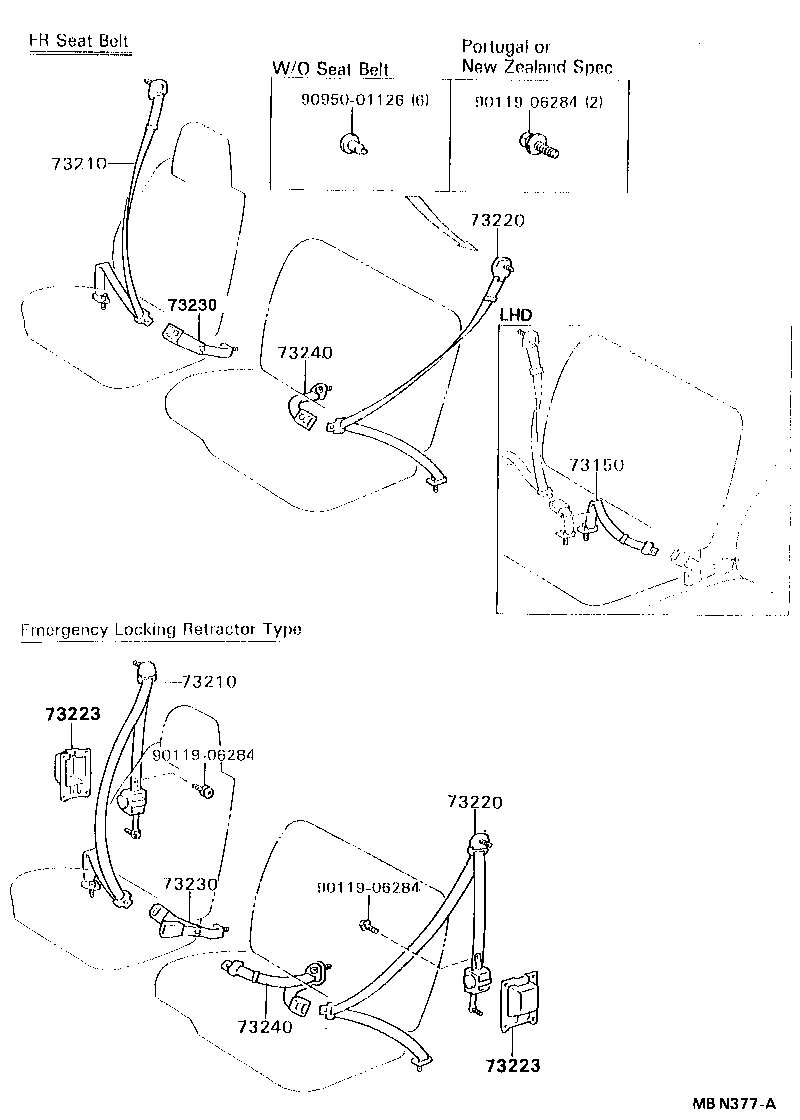

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 73150 73210 73210 73220 73220 73223 73223 73230 73230 73240 73240 9011906284 9011906284 9011906284 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9541606

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
73230-95A0006

RU85,WU9#,YU6#,71,81..LHD

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9541606

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
73230-95A0006

RU85,WU9#,YU6#,71,81..LHD

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9542606

RU85,WU9#..GEN

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73240-9541506

RU85,WU9#,YU6#,71,81..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9542606

RU85,WU9#..GEN

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73240-9541506

RU85,WU9#,YU6#,71,81..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
Common parts
90119-06284
90950-01126

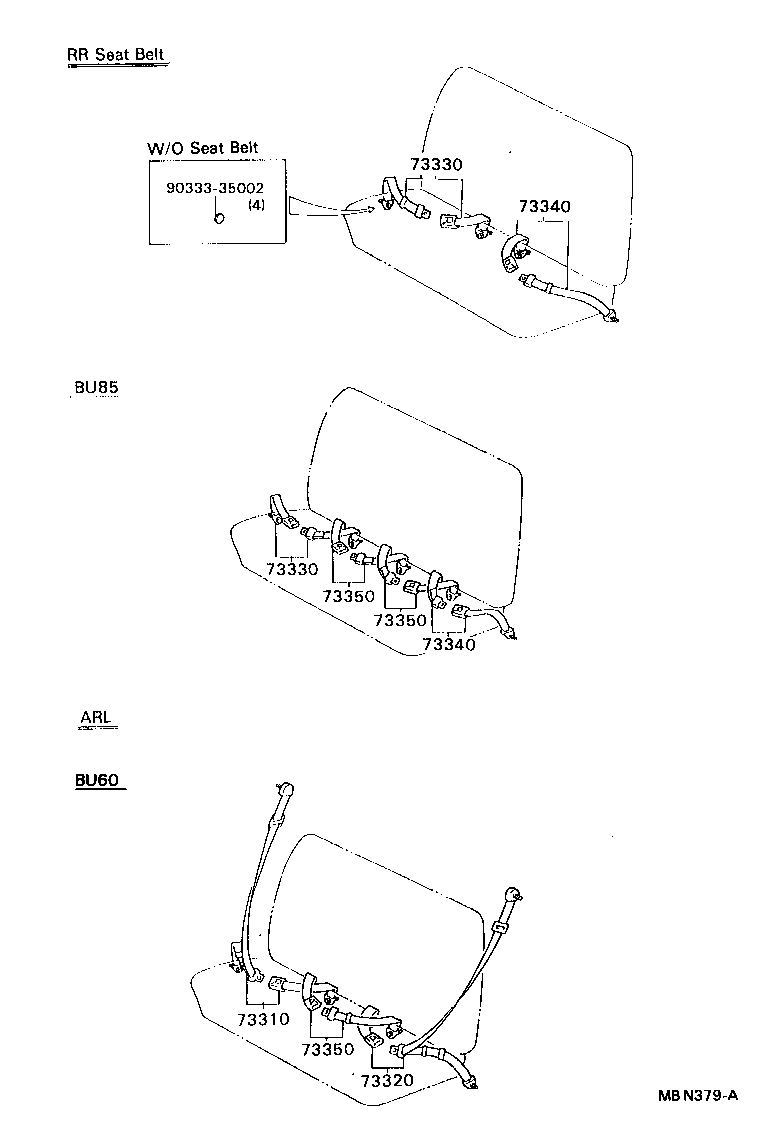

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 73310 73320 73330 73330 73340 73340 73350 73350 73350 9033335002
Part # Description Qty Price
Common parts
90333-35002

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 73150 73210 73210 73220 73220 73223 73223 73230 73230 73240 73240 9011906284 9011906284 9011906284 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9541506

RU85,WU9#..LHD

BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9541606

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
73230-95A0006

RU85,WU9#,YU6#,71,81..LHD

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9541606

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
73230-95A0006

RU85,WU9#,YU6#,71,81..LHD

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9542606

RU85,WU9#..GEN

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73240-9541506

RU85,WU9#,YU6#,71,81..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9542606

RU85,WU9#..GEN

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
73240-9541506

RU85,WU9#,YU6#,71,81..LHD

SAUDI ARBIA & GULF SPEC,BROWN,TRIM4#

 1
Common parts
90119-06284
90950-01126

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 73310 73320 73330 73330 73340 73340 73350 73350 73350 9033335002
Part # Description Qty Price
Common parts
90333-35002
