RU85L-MDDHT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 22R
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

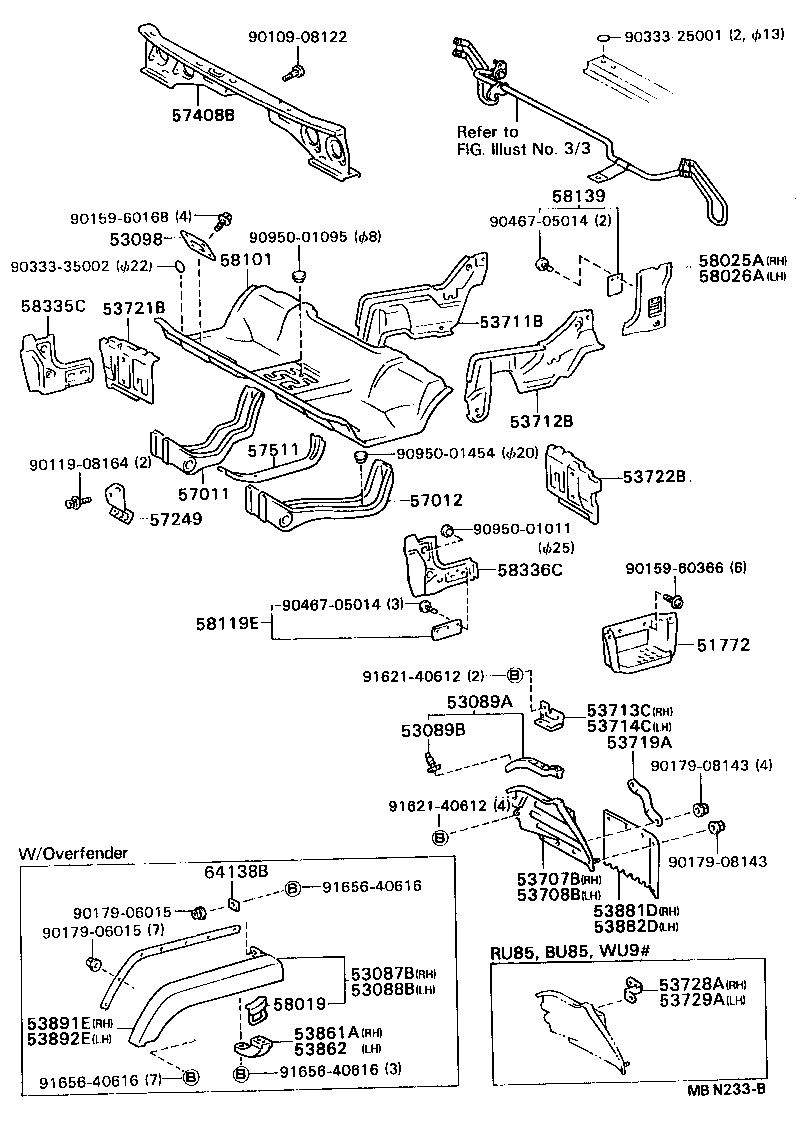

ILLUST NO. 1 OF 3(8708- )BU60,85..T3 ; (8708- )BU61,62,65,80,81,82,93

Click highlighted areas on diagram

diagram 51772 53087B 53088B 53089A 53089B 53098 53707B 53708B 53711B 53712B 53713C 53714C 53719A 53721B 53722B 53728A 53729A 53861A 53862 53881D 53882D 53891E 53892E 57011 57012 57249 57408B 57511 58019 58025A 58026A 58101 58119E 58139 58335C 58336C 64138B 9010908122 9011908164 9015960168 9015960366 9017906015 9017906015 9017908143 9017908143 9033325001 9033335002 9046705014 9046705014 9095001011 9095001095 9095001454 9162140612 9162140612 9165640616 9165640616 9165640616
Part # Description Qty Price
51772 - PLATE, STEP
51771-95406

RU85,WU9#,YU6#,71,81

RH

 1
51772-95406

RU85,WU9#,YU6#,71,81

LH

 1
53089A - MUDGUARD SUB-ASSY, FRONT
53089-95400

RU85,WU9#,YU6#,81..L1,L2,T3

 2
53089B - CLIP, FRONT MUDGUARD
67868-95401

RU85,WU9#,YU6#,81..L1,L2,T3

 12
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-95403

RU85,WU9#

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-95403

RU85,WU9#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-95411

RU85,WU9#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-95415

RU85,WU9#

 1
53719A - BRACE, FENDER APRON
53719-95403

RU85,WU9#,YU63;YU62,81..T3..GEN

 1
53721B - APRON SUB-ASSY, FENDER SIDE, RH
53707-95400

RU85,WU9#

 1
53722B - APRON SUB-ASSY, FENDER SIDE, LH
53708-95400

RU85,WU9#

 1
53728A - BRACKET, FENDER APRON, RH
53728-95400

RU85,WU9#

 1
53729A - BRACKET, FENDER APRON, LH
53729-95400

RU85,WU9#

 1
53881D - MUDGUARD, FRONT RH
53881-95402

RU85,WU9#

 1
53882D - MUDGUARD, FRONT LH
53881-95402

RU85,WU9#

 1
57011 - MEMBER SUB-ASSY, FLOOR, RH
57011-95400

RU85,WU9#,YU6#,71,81

 1
57012 - MENBER SUB-ASSY
57012-95404

RU85,WU9#

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95401

RU85,WU9#,YU6#,71,81..LHD

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-95408

RU85,WU9#..LHD

 1
57408-95412

WU9#..LHD..CBU;RU85..GEN..IV3

W(AIR CONDITIONER)

 1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58271-95401

RU85,WU9#

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58272-95403

RU85,WU9#

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95452

WU9#..LHD..CBU;RU85..GEN..IV3

W(P.T.0)

 1
58101-95454

RU85,WU9#..LHD

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400

RU85,WU9#,YU6#,71,81

 2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95402

RU85,WU9#,YU6#,71,81

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95402

RU85,WU9#,YU6#,71,81

 1
Common parts
90109-08122
90119-08164
90159-60168
90159-60366
90179-06015
90179-08143
90333-25001
90333-35002
90467-05014
90950-01011
90950-01095
90950-01454
91621-40612
91656-40616

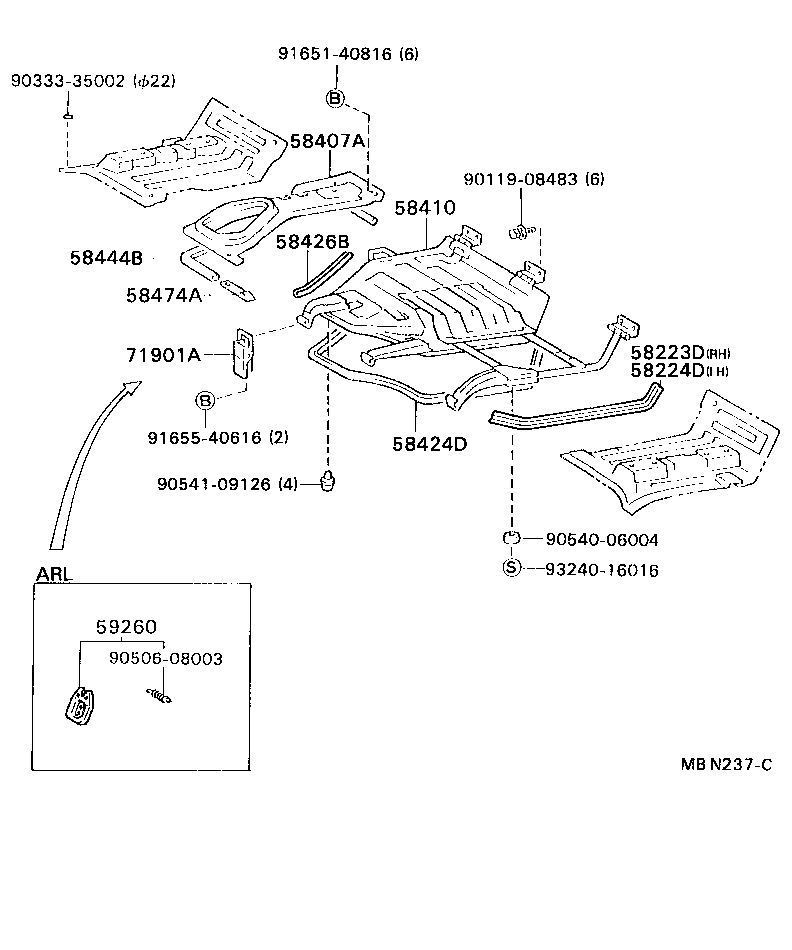

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 58223D 58224D 58407A 58410 58424D 58426B 58444B 58474A 59260 71901A 9011908483 9033335002 9050608003 9054006004 9054109126 9165140816 9165540616 9324016016
Part # Description Qty Price
58223D - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-95404

RU85,WU9#..LHD

 1
58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB
58407-95422

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC

 1
58407-95421

RU85,WU9#..LHD

 1
58410 - COVER, ENGINE SERVICE HOLE
59208-95406

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC

 1
59208-95405

RU85,WU9#..LHD

 1
58424D - PACKING, ENGINE COVER
58424-95405

RU85,WU9#,YU6#,71,81

 1
58426B - PROTECTOR, ENGINE SUB COVER
58426-95405

RU85,WU9#,YU6#,71,81

 1
58444B - PACKING, ENGINE SUB COVER
58444-95402

RU85,WU9#,YU6#,71,81

 1
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-95401

RU85,WU9#,YU6#,71,81

 1
71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT
71901-9570403

RU85,WU9#..GEN,SA

SHADOW GRAY,TRIM4#,SIDE

 2
71902-9540003

RU85,WU9#

SHADOW GRAY,TRIM4#,CENTER

 1
Common parts
90119-08483
90333-35002
90506-08003
90540-06004
90541-09126
91651-40816
91655-40616
93240-16016

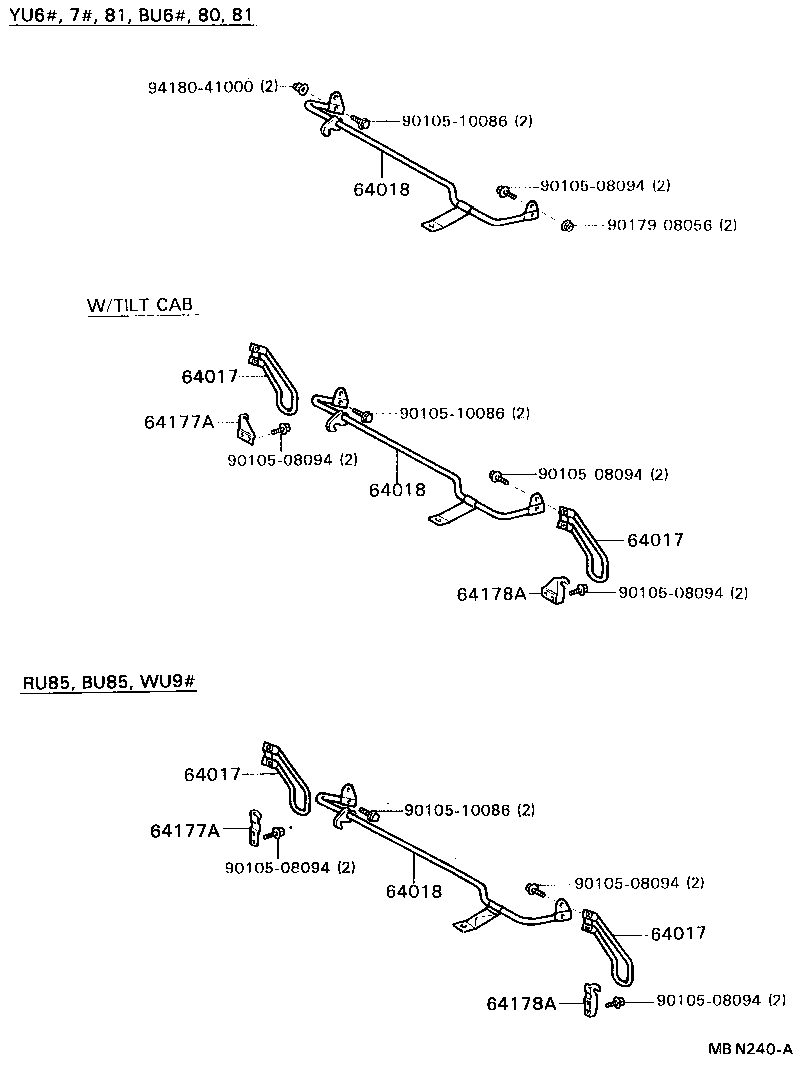

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

diagram 64017 64017 64017 64017 64018 64018 64018 64177A 64177A 64178A 64178A 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010510086 9010510086 9010510086 9017908056 9418041000
Part # Description Qty Price
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64018 - BAR SUB-ASSY, BODY
64018-95408

RU85,WU9#..LHD

 1
64018 - BAR SUB-ASSY, BODY
64018-95408

RU85,WU9#..LHD

 1
64018 - BAR SUB-ASSY, BODY
64018-95408

RU85,WU9#..LHD

 1
64177A - STOPPER, REAR MOUNTING BRACKET, RH
64177-95403

RU85,WU9#..LHD

 1
64177A - STOPPER, REAR MOUNTING BRACKET, RH
64177-95403

RU85,WU9#..LHD

 1
64178A - STOPPER, REAR MOUNTING BRACKET, LH
64178-95405

RU85,WU9#..LHD

 1
64178A - STOPPER, REAR MOUNTING BRACKET, LH
64178-95405

RU85,WU9#..LHD

 1
Common parts
90105-08094
90105-10086
90179-08056
94180-41000

ILLUST NO. 1 OF 3(8708- )L1,L2,T3

Click highlighted areas on diagram

diagram 51772 53087B 53088B 53089A 53089B 53098 53707B 53708B 53711B 53712B 53713C 53714C 53719A 53721B 53722B 53728A 53729A 53861A 53862 53881D 53882D 53891E 53892E 57011 57012 57249 57408B 57511 58019 58025A 58026A 58101 58119E 58139 58335C 58336C 64138B 9010908122 9011908164 9015960168 9015960366 9017906015 9017906015 9017908143 9017908143 9033325001 9033335002 9046705014 9046705014 9095001011 9095001095 9095001454 9162140612 9162140612 9165640616 9165640616 9165640616
Part # Description Qty Price
51772 - PLATE, STEP
51771-95406

RU85,WU9#,YU6#,71,81

RH

 1
51772-95406

RU85,WU9#,YU6#,71,81

LH

 1
53089A - MUDGUARD SUB-ASSY, FRONT
53089-95400

RU85,WU9#,YU6#,81..L1,L2,T3

 2
53089B - CLIP, FRONT MUDGUARD
67868-95401

RU85,WU9#,YU6#,81..L1,L2,T3

 12
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-95403

RU85,WU9#

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-95403

RU85,WU9#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-95411

RU85,WU9#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-95415

RU85,WU9#

 1
53719A - BRACE, FENDER APRON
53719-95403

RU85,WU9#,YU63;YU62,81..T3..GEN

 1
53721B - APRON SUB-ASSY, FENDER SIDE, RH
53707-95400

RU85,WU9#

 1
53722B - APRON SUB-ASSY, FENDER SIDE, LH
53708-95400

RU85,WU9#

 1
53728A - BRACKET, FENDER APRON, RH
53728-95400

RU85,WU9#

 1
53729A - BRACKET, FENDER APRON, LH
53729-95400

RU85,WU9#

 1
53881D - MUDGUARD, FRONT RH
53881-95402

RU85,WU9#

 1
53882D - MUDGUARD, FRONT LH
53881-95402

RU85,WU9#

 1
57011 - MEMBER SUB-ASSY, FLOOR, RH
57011-95400

RU85,WU9#,YU6#,71,81

 1
57012 - MENBER SUB-ASSY
57012-95404

RU85,WU9#

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95401

RU85,WU9#,YU6#,71,81..LHD

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-95408

RU85,WU9#..LHD

 1
57408-95412

WU9#..LHD..CBU;RU85..GEN..IV3

W(AIR CONDITIONER)

 1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58271-95401

RU85,WU9#

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58272-95403

RU85,WU9#

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95452

WU9#..LHD..CBU;RU85..GEN..IV3

W(P.T.0)

 1
58101-95454

RU85,WU9#..LHD

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400

RU85,WU9#,YU6#,71,81

 2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95402

RU85,WU9#,YU6#,71,81

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95402

RU85,WU9#,YU6#,71,81

 1
Common parts
90109-08122
90119-08164
90159-60168
90159-60366
90179-06015
90179-08143
90333-25001
90333-35002
90467-05014
90950-01011
90950-01095
90950-01454
91621-40612
91656-40616

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 58223D 58224D 58407A 58410 58424D 58426B 58444B 58474A 59260 71901A 9011908483 9033335002 9050608003 9054006004 9054109126 9165140816 9165540616 9324016016
Part # Description Qty Price
58223D - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-95404

RU85,WU9#..LHD

 1
58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB
58407-95422

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC

 1
58407-95421

RU85,WU9#..LHD

 1
58410 - COVER, ENGINE SERVICE HOLE
59208-95406

RU85,WU9#..LHD

SAUDI ARBIA & GULF SPEC

 1
59208-95405

RU85,WU9#..LHD

 1
58424D - PACKING, ENGINE COVER
58424-95405

RU85,WU9#,YU6#,71,81

 1
58426B - PROTECTOR, ENGINE SUB COVER
58426-95405

RU85,WU9#,YU6#,71,81

 1
58444B - PACKING, ENGINE SUB COVER
58444-95402

RU85,WU9#,YU6#,71,81

 1
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-95401

RU85,WU9#,YU6#,71,81

 1
71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT
71901-9570403

RU85,WU9#..GEN,SA

SHADOW GRAY,TRIM4#,SIDE

 2
71902-9540003

RU85,WU9#

SHADOW GRAY,TRIM4#,CENTER

 1
Common parts
90119-08483
90333-35002
90506-08003
90540-06004
90541-09126
91651-40816
91655-40616
93240-16016

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

diagram 64017 64017 64017 64017 64018 64018 64018 64177A 64177A 64178A 64178A 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010510086 9010510086 9010510086 9017908056 9418041000
Part # Description Qty Price
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET
64017-95403

RU85,WU9#..LHD

 2
64018 - BAR SUB-ASSY, BODY
64018-95408

RU85,WU9#..LHD

 1
64018 - BAR SUB-ASSY, BODY
64018-95408

RU85,WU9#..LHD

 1
64018 - BAR SUB-ASSY, BODY
64018-95408

RU85,WU9#..LHD

 1
64177A - STOPPER, REAR MOUNTING BRACKET, RH
64177-95403

RU85,WU9#..LHD

 1
64177A - STOPPER, REAR MOUNTING BRACKET, RH
64177-95403

RU85,WU9#..LHD

 1
64178A - STOPPER, REAR MOUNTING BRACKET, LH
64178-95405

RU85,WU9#..LHD

 1
64178A - STOPPER, REAR MOUNTING BRACKET, LH
64178-95405

RU85,WU9#..LHD

 1
Common parts
90105-08094
90105-10086
90179-08056
94180-41000
