RU85L-MDDHT (1988)
Toyota Dyna 200

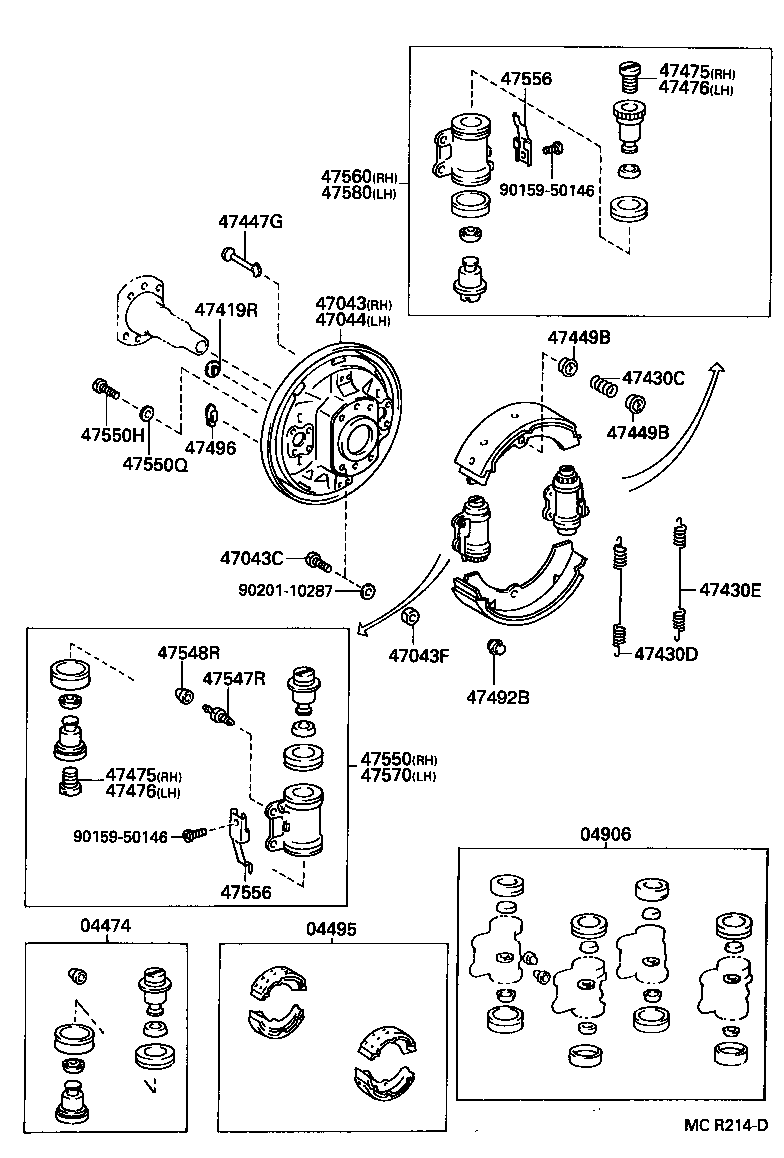

(8808- )BU6#,70,8#,94
CYLINDER CUP:PLATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
RU85,YU6#,71,8# |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
RU85,YU82 |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
RU85,YU82 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36130 |
RU85,YU82 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36130 |
RU85,YU82 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||

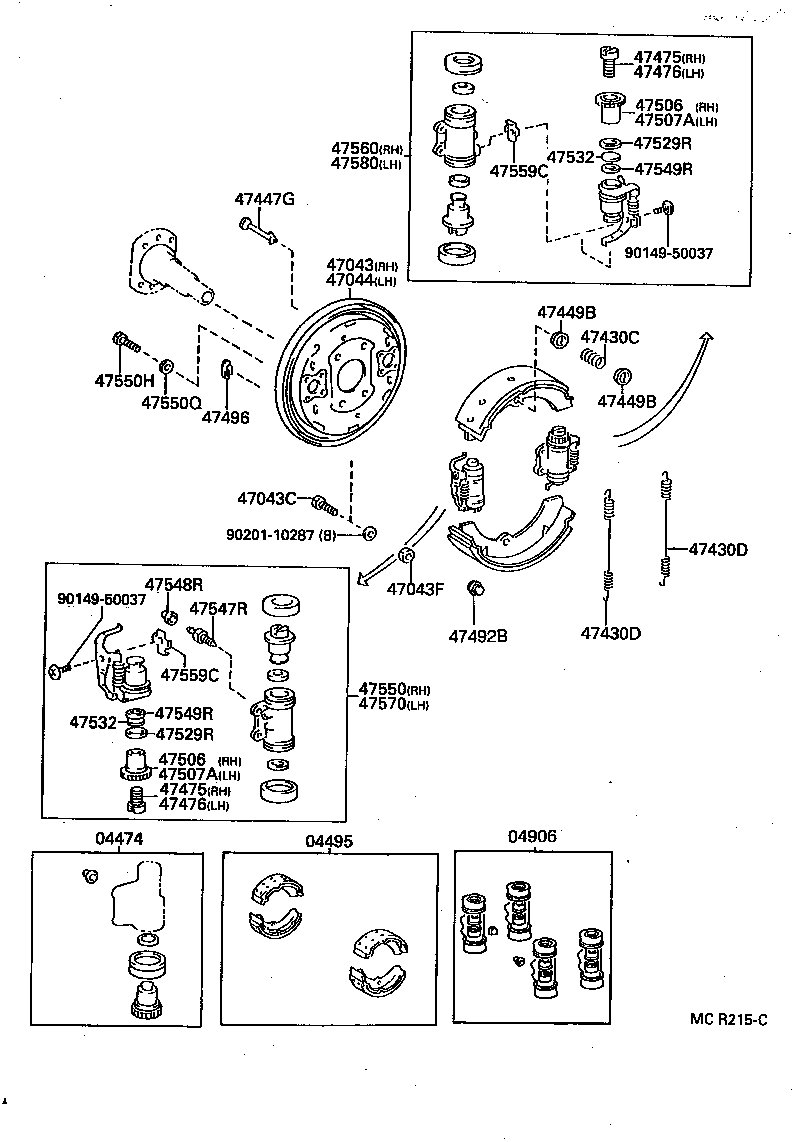

(8808-9303)BU6#,8#
W(AUTO ADJUSTER),CYLINDER CUP:PLATE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47501A - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, RH | ||||
| 47501-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47501-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47501A - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, RH | ||||
| 47501-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47501-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, LH | ||||
| 47502-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, LH | ||||
| 47502-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(9303- )BU60,8#,94
CYLINDER CUP:RING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36120 |
RU85,YU8# RH |
2 | ||
| 04474-36140 |
RU85,YU82..GEN W(AUTO ADJUSTER),RH |
2 | ||
| 04474-36150 |
RU85,YU82..GEN W(AUTO ADJUSTER),LH |
2 | ||
| 04474-36130 |
RU85,YU8# LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
RU85,YU6#,71,8# |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(9303- )BU60,61,65,66,8#
W(AUTO ADJUSTER),CYLINDER CUP:RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36120 |
RU85,YU8# RH |
2 | ||
| 04474-36140 |
RU85,YU82..GEN W(AUTO ADJUSTER),RH |
2 | ||
| 04474-36150 |
RU85,YU82..GEN W(AUTO ADJUSTER),LH |
2 | ||
| 04474-36130 |
RU85,YU8# LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(8808- )RU85,YU6#,71,82
CYLINDER CUP:PLATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
RU85,YU6#,71,8# |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
RU85,YU82 |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
RU85,YU82 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36130 |
RU85,YU82 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36130 |
RU85,YU82 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(8808-9303)RU85,YU62,82
W(AUTO ADJUSTER),CYLINDER CUP:PLATE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47501A - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, RH | ||||
| 47501-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47501-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47501A - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, RH | ||||
| 47501-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47501-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, LH | ||||
| 47502-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, LH | ||||
| 47502-36041 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47502-36021 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
RU85,YU82 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
RU85,YU82 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
RU85,YU82 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36120 |
RU85,YU6#,82..WT |
2 | ||
| 47655-36040 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(9303- )RU85,YU82 ; (9403- )YU85
CYLINDER CUP:RING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36120 |
RU85,YU8# RH |
2 | ||
| 04474-36140 |
RU85,YU82..GEN W(AUTO ADJUSTER),RH |
2 | ||
| 04474-36150 |
RU85,YU82..GEN W(AUTO ADJUSTER),LH |
2 | ||
| 04474-36130 |
RU85,YU8# LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
RU85,YU6#,71,8# |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
RU85,YU6#,71,8# |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(9303- )RU85,YU62,82
W(AUTO ADJUSTER),CYLINDER CUP:RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36120 |
RU85,YU8# RH |
2 | ||
| 04474-36140 |
RU85,YU82..GEN W(AUTO ADJUSTER),RH |
2 | ||
| 04474-36150 |
RU85,YU82..GEN W(AUTO ADJUSTER),LH |
2 | ||
| 04474-36130 |
RU85,YU8# LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04495-36110 |
RU85,YU6#,8#..WT |
1 | ||
| 04495-36070 |
RU85,YU6#,82..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
RU85,YU82 |
1 | ||
| 04906-36120 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 04906-36170 |
RU85,YU8# |
1 | ||
| 04906-36180 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47043-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
RU85,YU6#,71,8# *10-1.25PX31-21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
RU85,YU6#,71,8# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36140 |
RU85,YU6#,8#..WT |
1 | ||
| 47044-36110 |
RU85,YU6#,82..WT |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
RU85,WU9#,YU6#,8#..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
RU85,WU9#,YU6#,8#..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
RU85,WU9#,YU6#,71,8# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47553-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
RU85,YU6#,8#..WT |
2 | ||
| 47554-36070 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
RU85,YU6#,8#..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
RU85,WU9#,YU6#,71,8# |
4 | ||
| 47491-36010 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
8 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
2 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RU85,WU9#,YU6#,71,8# |
2 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36120 |
RU85,YU82 |
1 | ||
| 47550-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47550-36230 |
RU85,YU8# |
1 | ||
| 47550-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
RU85,WU9#,YU6#,8#..WT |
16 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
RU85,YU62,82..WT..(ARL,GEN) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36120 |
RU85,YU82 |
1 | ||
| 47560-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47560-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47560-36230 |
RU85,YU8# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| 47570-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47570-36120 |
RU85,YU82 |
1 | ||
| 47570-36230 |
RU85,YU8# |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36150 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36120 |
RU85,YU82 |
1 | ||
| 47580-36230 |
RU85,YU8# |
1 | ||
| 47580-36140 |
RU85,YU62,82..WT..(ARL,GEN) W(AUTO ADJUSTER) |
1 | ||
| 47580-36240 |
RU85,YU62,82..WT..GEN W(AUTO ADJUSTER) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
