RU85L-MDDHT (1988)
Toyota Dyna 200
(8808- )BU6#,8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44037 - COVER SUB-ASSY, OIL RESERVOIR | ||||
| 44037-36080 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90405-16014 |
RU85..GEN |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90405-16014 |
RU85..GEN |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-36130 |
RU85..GEN |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44429B - BOLT, UNION(FOR RESERVOIR TO OIL PUMP UNION) | ||||
| 90401-22003 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44429C - GASKET(FOR RESERVOIR TO OIL PUMP UNION) | ||||
| 90430-22001 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
2 | ||
| 44429C - GASKET(FOR RESERVOIR TO OIL PUMP UNION) | ||||
| 90430-22001 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
2 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90029-20701 | ||||
| 91611-60612 | ||||
(8808- )BU6#,8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36070 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 04446-36030 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36030 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44033-36060 |
RU85,YU6#,82..L2,T3 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36170 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20003 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 90029-21004 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36170 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-36100 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36004 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-36150 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) L=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36090 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) ONE GROOVE |
1 | ||
| 44330-36100 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) NO GROOVE |
1 | ||
| 44330-36080 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) TWO GROOVE |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36090 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) ONE GROOVE |
1 | ||
| 44330-36100 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) NO GROOVE |
1 | ||
| 44330-36080 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44336A - RETAINER, VANE PUMP OIL SEAL | ||||
| 44336-89101 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-89102 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
| 91611-61035 | ||||
| 96150-01700 | ||||

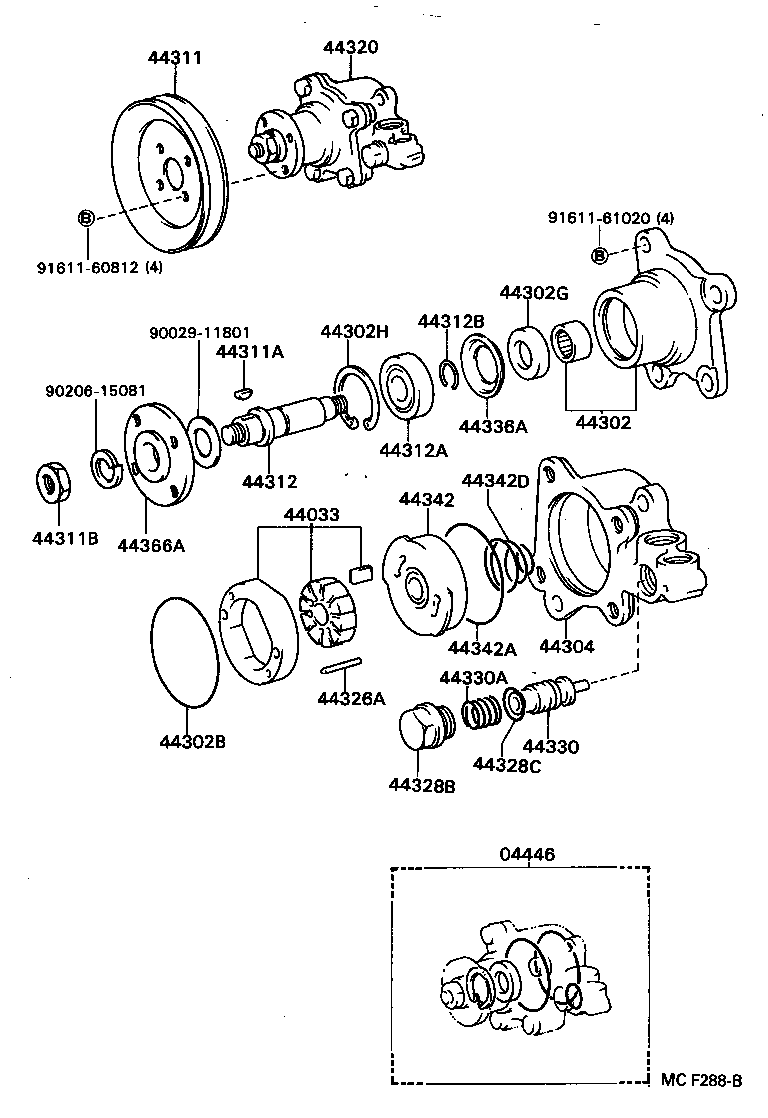

ILLUST NO. 1 OF 2(8808- )RU85,YU6#,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36070 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 04446-36030 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36030 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44033-36060 |
RU85,YU6#,82..L2,T3 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36170 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20003 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 90029-21004 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36170 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-36030 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90029-07001 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-36100 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36004 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-36150 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) L=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36090 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) ONE GROOVE |
1 | ||
| 44330-36100 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) NO GROOVE |
1 | ||
| 44330-36080 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44336A - RETAINER, VANE PUMP OIL SEAL | ||||
| 44336-89101 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-89102 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44366A - SEAT, PUMP PULLEY | ||||
| 44366-36021 |
RU85,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90029-11801 | ||||
| 90206-15081 | ||||
| 91611-60812 | ||||
| 91611-61020 | ||||
ILLUST NO. 2 OF 2(8808- )RU85,YU6#,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44037 - COVER SUB-ASSY, OIL RESERVOIR | ||||
| 44037-36080 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90405-16014 |
RU85..GEN |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-36130 |
RU85..GEN |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44429B - BOLT, UNION(FOR RESERVOIR TO OIL PUMP UNION) | ||||
| 90401-22003 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
1 | ||
| 44429C - GASKET(FOR RESERVOIR TO OIL PUMP UNION) | ||||
| 90430-22001 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
2 | ||
| 44429C - GASKET(FOR RESERVOIR TO OIL PUMP UNION) | ||||
| 90430-22001 |
RU85,WU9#,YU6#,82..(L2,T3)..(ARL,GEN) |
2 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90029-20701 | ||||
