BU96R-MDDT3 (1988)
Toyota Dyna 200
Production
Aug 1988
-
May 1995
Engine
14B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )BU91,96

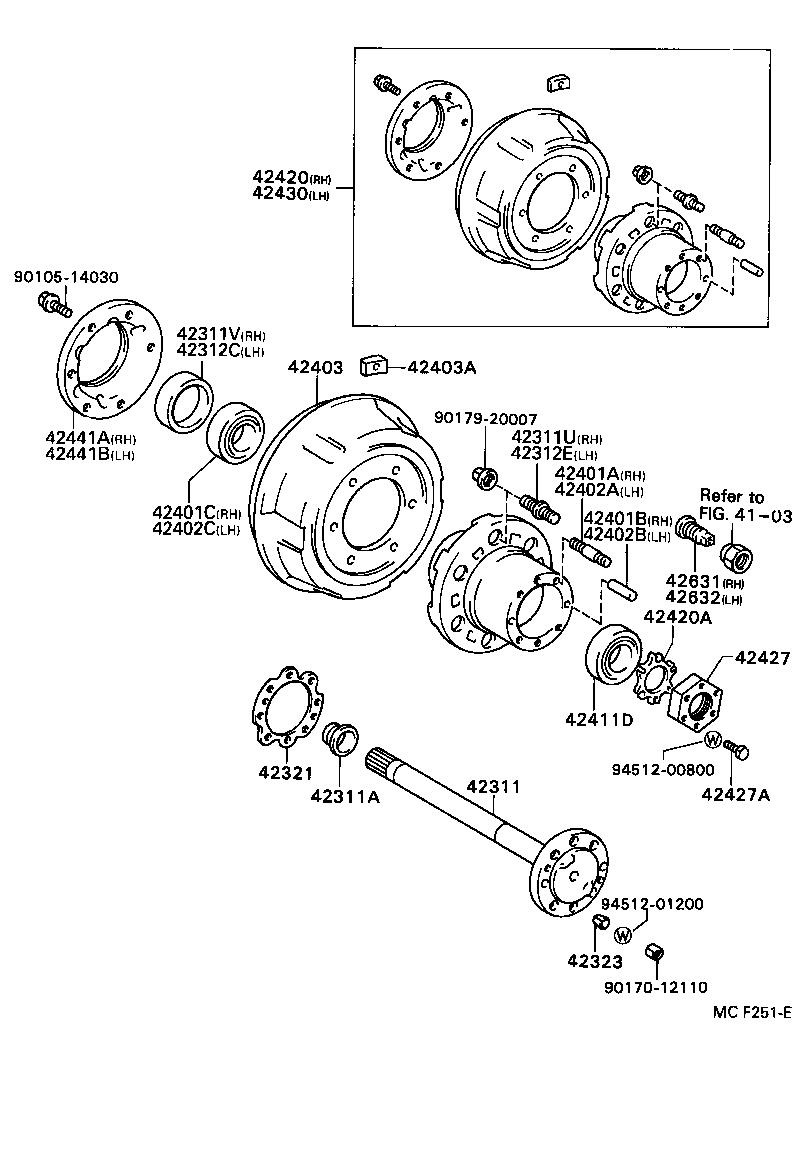

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36131 |
BU91,96 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-41001 |
BU91,96 |
2 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
BU6#,8#,91,96..WT..DSL..(CBU,IV3) |
5 | ||
| 90942-02045 |
BU91,96 |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-88102 |
BU91,96 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-88102 |
BU91,96 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
BU66..T3..WT;BU60,61,65,67,8#,91,96..WT..(CBU,IV3) |
5 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36020 |
BU91,96 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36020 |
BU91,96 |
12 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-12009 |
BU91,96 |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-13066 |
BU91,96 |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90368-66006 |
BU91,96 |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-12009 |
BU91,96 |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-13066 |
BU91,96 |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90368-66006 |
BU91,96 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36110 |
BU91,96..DSL |
2 | ||
| 42431-36130 |
BU91,96 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
BU91,96 20G |
1 | ||
| 90937-01122 |
BU66..T3..WT;BU60,61,65,67,8#,9#..WT 60G |
1 | ||
| 90937-01120 |
BU91,96 40G |
1 | ||
| 90937-01119 |
BU91,96 30G |
1 | ||
| 90937-01117 |
BU91,96 10G |
1 | ||
| 90937-01121 |
BU91,96 50G |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-57046 |
BU91,96 |
2 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36120 |
BU91,96..DSL |
1 | ||
| 42420-36170 |
BU91,96 |
1 | ||
| 42420A - WASHER, CLAW (FOR REAR AXLE SHAFT) | ||||
| 90214-57002 |
BU91,96 |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36020 |
BU91,96 |
2 | ||
| 42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET) | ||||
| 90109-08015 |
BU91,96 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36120 |
BU91,96..DSL |
1 | ||
| 42430-36170 |
BU91,96 |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-36040 |
BU91,96 |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-36040 |
BU91,96 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU91,96 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU91,96 |
6 | ||
| Common parts | ||||
| 90105-14030 | ||||
| 90170-12110 | ||||
| 90179-20007 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
