BU96L-MDDT (1988)
Toyota Dyna 200
(8808- )BU88,91,96..LHD

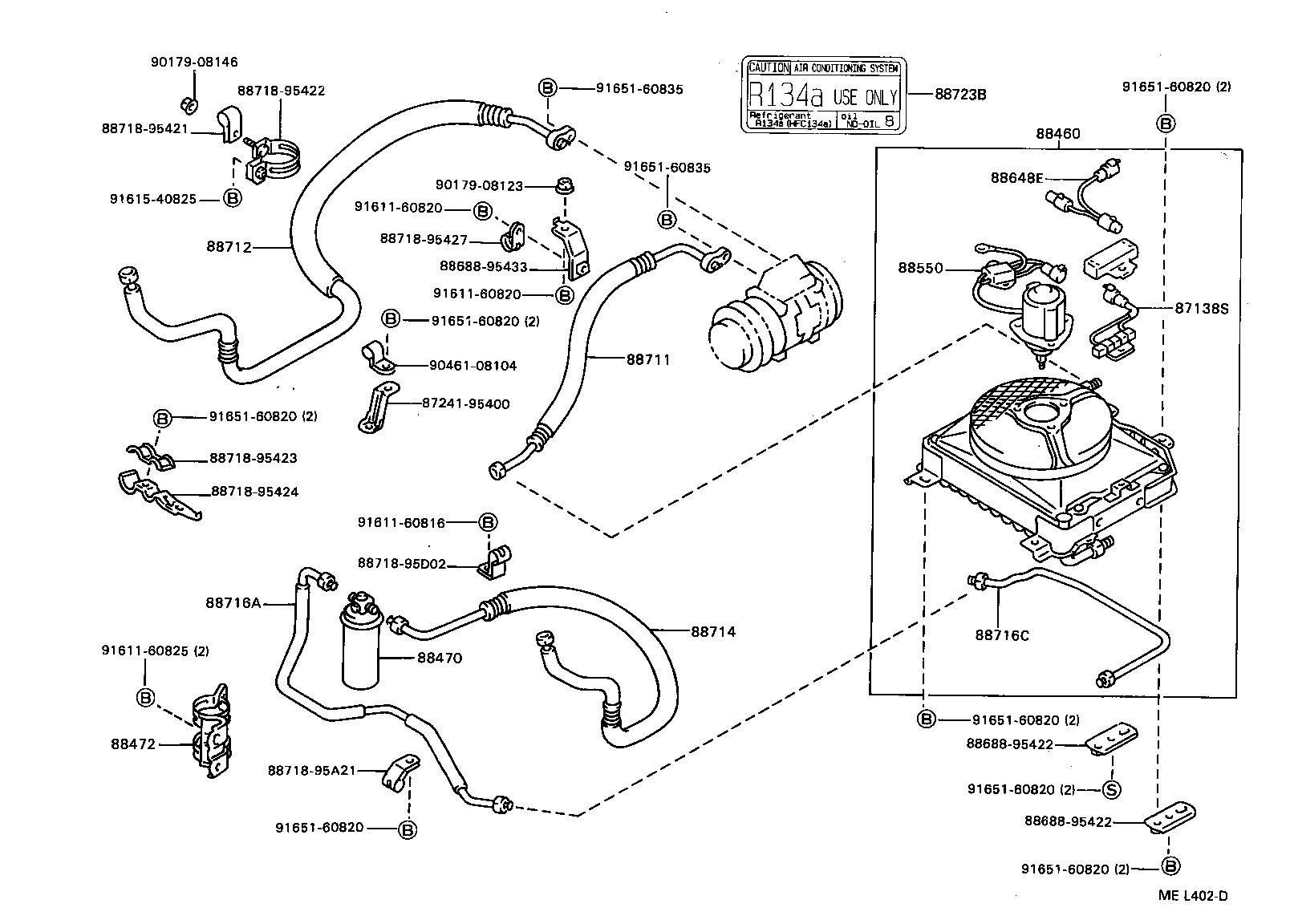

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95410 |
BU61..CBU;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..DSL..GEN;BU66,70,84,87,94..5F;BU60,65,83,88..RHD..(GEN,GHD) |
1 | ||
| 87138-95410 |
BU60,83..RHD;BU60..T3..ST;BU70,84,87,94;BU61..ST..IV3;BU61..LHD..IV3;BU88..RHD..GEN;BU91..RHD..CBU;BU61,65..GEN..CBU;BU66,96..T3..TB..DSL..GEN |
1 | ||
| 87138-95410 |
BU96..GEN;BU61..CBU;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,70,84,94..5F;BU60,65,83,88..RHD..(GEN,GHD) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95410 |
BU91..TD;BU96..LHD |
1 | ||
| 88460-37050 |
BU96..CBU |
1 | ||
| 88460-95410 |
BU96..LHD..DSL |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95400 |
BU91..TD;BU96..GEN;BU88..IV1;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88471-95400 |
BU91..TD;BU96..LHD;BU88..IV1;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88471-95400 |
BU91..TD;BU96..LHD;BU88..IV1;BU66,84,87;BU60..T3..ST;BU60,83..RHD;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88471-95400 |
BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..LHD..DSL;BU60,83,87..RHD;BU66,84..T3..TB;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88471-95400 |
BU66,84;BU88..IV1;BU96..GEN;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95407 |
BU91..TD;BU96..LHD |
1 | ||
| 88472-95407 |
BU96..LHD..DSL |
1 | ||
| 88472-37040 |
BU96..CBU |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95406 |
BU61..CBU;BU60..T3..ST;BU70,84,87,94;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,96..T3..TB..DSL..GEN;BU60,65,83,88..RHD..(GEN,GHD) |
1 | ||
| 87104-95406 |
BU96..GEN;BU61..CBU;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,70,84,94..5F;BU60,65,83,88..RHD..(GEN,GHD) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95419 |
BU60..T3..ST;BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..DSL..GEN;BU66,70,84,87,94..5F;BU60,65,83,88..RHD..(GEN,GHD) |
1 | ||
| 88648-95419 |
BU60,83..RHD;BU60..T3..ST;BU70,84,87,94;BU61..ST..IV3;BU61..LHD..IV3;BU88..RHD..GEN;BU91..RHD..CBU;BU61,65..GEN..(CBU,IV1);BU66,96..T3..TB..DSL..GEN |
1 | ||
| 88648-95419 |
BU96..GEN;BU60..T3..ST;BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,70,84,94..5F;BU60,65,83,88..RHD..(GEN,GHD) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95423 |
BU91..TD;BU91..ARL;BU96..GEN;BU88,94..RHD;BU91..RHD..CBU |
1 | ||
| 88711-95423 |
BU91..TD;BU91..ARL;BU96..LHD;BU88,94..RHD;BU91..RHD..CBU |
1 | ||
| 88711-36190 |
BU88,94..IV1;BU91..RHD..CBU;BU96..LHD..DSL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95425 |
BU91..TD;BU96..LHD |
1 | ||
| 88712-37070 |
BU96..CBU |
1 | ||
| 88712-95425 |
BU96..LHD..DSL |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95410 |
BU91..TD;BU96..LHD |
1 | ||
| 88721-36130 |
BU96..LHD..DSL |
1 | ||
| 88721-37070 |
BU96..CBU |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95411 |
BU91..TD;BU96..LHD |
1 | ||
| 88716-37070 |
BU96..CBU |
1 | ||
| 88716-95411 |
BU96..LHD..DSL |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95409 |
BU61..IV1;BU60..T3..ST;BU66..T3..TB..GEN;BU61,70,84,96..LHD..DSL |
1 | ||
| 88716-37010 |
BU60..T3..ST;BU61,67,70,84,96..LHD |
1 | ||
| Common parts | ||||
| 87241-95400 | ||||
| 88688-95422 | ||||
| 88688-95433 | ||||
| 88718-95421 | ||||
| 88718-95422 | ||||
| 88718-95423 | ||||
| 88718-95424 | ||||
| 88718-95427 | ||||
| 88718-95A21 | ||||
| 88718-95D02 | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 90461-08104 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91615-40825 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
