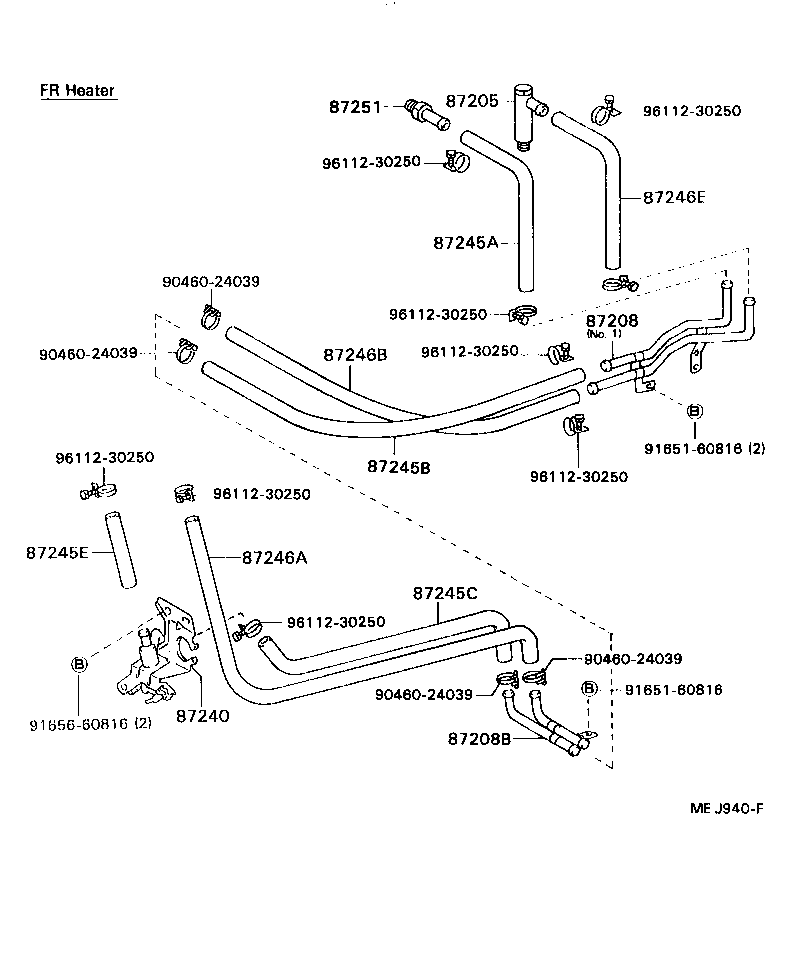

Toyota Dyna 200 BU96 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400	BU6#,70,8#,94;BU91,96..ARL,GEN	08/1988 - 12/1991	1
87251-95400	BU96..LHD;BU91..ARL;BU91..CBU;BU6#,70,8#,94;BU91..LHD..IV3	12/1991 - 01/1993	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95402	BU88,91,96..LHD	04/1990 - 08/1990	1
87208-95402	BU88,94;BU96..LHD;BU91..ARL;BU91..CBU;BU91..LHD..IV3	12/1991 - 01/1993	1
87208-95402	BU88,9#..ARL,GEN NO.1	08/1988 - 04/1990	1
87208-95402	BU88,9#..ARL,GEN	08/1990 - 12/1991	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95406	BU88,9#	08/1988 - 12/1991	1
87208-95406	BU88,94;BU91..CBU;BU96..LHD;BU91..LHD..IV3;BU91,96..ARL,SA	12/1991 - 01/1993	1
87240 - VALVE ASSY, HEATER WATER
87240-95410	BU6#,70,83,84,88,91,96..LHD	08/1988 - 01/1993	1
87240-95410	BU6#,70,83,84,88,91,96..LHD..DSL	01/1993 - 05/1995	1
87245A - HOSE, HEATER WATER, INLET A
87245-95480	BU88,9#..ARL,GEN L=430	08/1988 - 12/1991	1
87245-95480	BU88,94;BU96..LHD;BU91..ARL;BU91..CBU;BU91..LHD..IV3 L=430	12/1991 - 01/1993	1
87245B - HOSE, HEATER WATER, INLET B
87245-95465	BU88,91,96..LHD	08/1988 - 01/1993	1
87245-95465	BU88,91,96..LHD..DSL	01/1993 - 05/1995	1
87245C - HOSE, HEATER WATER ,INLET C
99556-30500	BU88,9# L=500	08/1988 - 12/1991	1
99556-30500	BU88,94;BU91..CBU;BU96..LHD;BU91..LHD..IV3;BU91,96..ARL,SA L=500	12/1991 - 01/1993	1
87245E - HOSE, HEATER WATER, INLET E
99556-30135	BU6#,70,8#,9# *H,L=135	08/1988 - 12/1991	1
99556-30135	BU91..CBU;BU96..LHD;BU6#,70,8#,94;BU91..LHD..IV3;BU91,96..ARL,SA *H,L=135	12/1991 - 01/1993	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700	BU88,94;BU91..CBU;BU96..LHD;BU91..LHD..IV3;BU91,96..ARL,SA L=700	12/1991 - 01/1993	1
99556-30700	BU88,9# L=700	08/1988 - 12/1991	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-95464	BU88,91,96..LHD..DSL	01/1993 - 05/1995	1
87245-95464	BU88,91,96..LHD	08/1988 - 01/1993	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95467	BU88,94;BU96..LHD;BU91..ARL;BU91..CBU;BU91..LHD..IV3	12/1991 - 01/1993	1
87245-95467	BU88,9#..ARL,GEN	08/1988 - 12/1991	1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200	BU60..RHD;BU91..ARL;BU91..CBU;BU91..LHD..IV3;BU60,96..LHD..T3;BU61,65,66,67,70,8#,94	12/1991 - 01/1993	1
87251-20160	BU60..RHD;BU60..LHD..T3;BU91,96..ARL,GEN;BU61,65,66,67,70,8#,94	08/1988 - 09/1990	1
87251-30200	BU60..RHD;BU60..LHD..T3;BU91,96..ARL,GEN;BU61,65,66,67,70,8#,94	09/1990 - 12/1991	1
Common parts
90460-24039
91651-60816
91656-60816
96112-30250

BU96L-MDDT (1988)

(8808- )BU88,9#
