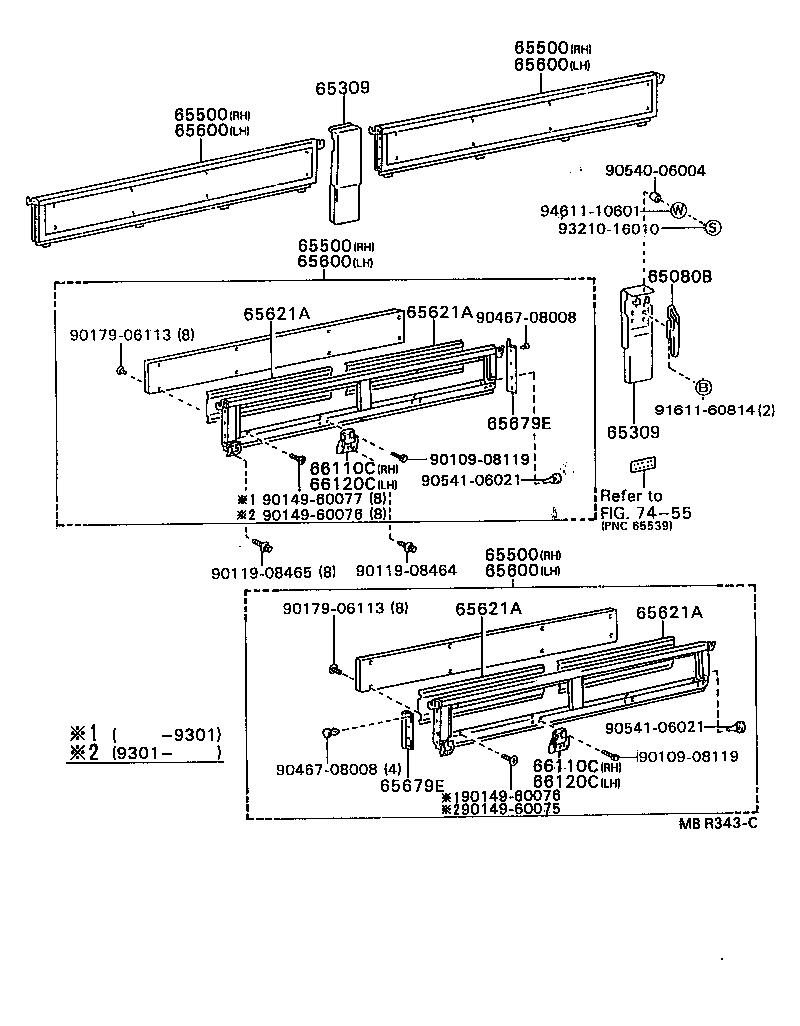

BU96L-MDDT (1988)
Toyota Dyna 200
(8808- )BU96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65080B - HANDLE ASSY, SIDE GATE LATCH | ||||
| 65080-92701 |
BU96..CBU |
2 | ||
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92800 |
BU96..CBU |
1 | ||
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92800 |
BU96..CBU |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU96..CBU FRONT |
1 | ||
| 65660-92804 |
BU96..CBU |
1 | ||
| 65660-92804 |
BU96..CBU REAR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU96..CBU FRONT |
1 | ||
| 65660-92804 |
BU96..CBU |
1 | ||
| 65660-92804 |
BU96..CBU REAR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU96..CBU FRONT |
1 | ||
| 65660-92804 |
BU96..CBU |
1 | ||
| 65660-92804 |
BU96..CBU REAR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU96..CBU FRONT |
1 | ||
| 65660-92804 |
BU96..CBU |
1 | ||
| 65660-92804 |
BU96..CBU REAR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65670-92804 |
BU96..CBU REAR |
1 | ||
| 65600-92856 |
BU96..CBU FRONT |
1 | ||
| 65670-92804 |
BU96..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65670-92804 |
BU96..CBU REAR |
1 | ||
| 65600-92856 |
BU96..CBU FRONT |
1 | ||
| 65670-92804 |
BU96..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65670-92804 |
BU96..CBU REAR |
1 | ||
| 65600-92856 |
BU96..CBU FRONT |
1 | ||
| 65670-92804 |
BU96..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65670-92804 |
BU96..CBU REAR |
1 | ||
| 65600-92856 |
BU96..CBU FRONT |
1 | ||
| 65670-92804 |
BU96..CBU |
1 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92829 |
BU96..CBU L=1076(RH-FR,LH-RR) |
2 | ||
| 65621-92828 |
BU96..CBU L=1076(RH-RR,LH-FR) |
2 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92829 |
BU96..CBU L=1076(RH-FR,LH-RR) |
2 | ||
| 65621-92828 |
BU96..CBU L=1076(RH-RR,LH-FR) |
2 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92829 |
BU96..CBU L=1076(RH-FR,LH-RR) |
2 | ||
| 65621-92828 |
BU96..CBU L=1076(RH-RR,LH-FR) |
2 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92829 |
BU96..CBU L=1076(RH-FR,LH-RR) |
2 | ||
| 65621-92828 |
BU96..CBU L=1076(RH-RR,LH-FR) |
2 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-92706 |
BU96..CBU FRONT |
1 | ||
| 65679-92801 |
BU96..CBU CENTER,REAR |
1 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-92706 |
BU96..CBU FRONT |
1 | ||
| 65679-92801 |
BU96..CBU CENTER,REAR |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65050-92703 |
BU96..CBU 1ST,4TH |
4 | ||
| 65050-37020 |
BU96..CBU 1ST,4TH |
2 | ||
| 65010-92702 |
BU96..CBU 2ND,3RD |
4 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65050-92703 |
BU96..CBU 1ST,4TH |
4 | ||
| 65050-37020 |
BU96..CBU 1ST,4TH |
2 | ||
| 65010-92702 |
BU96..CBU 2ND,3RD |
4 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92700 |
BU96..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65020-92700 |
BU96..CBU 2ND,3RD,6TH,7TH |
4 | ||
| 65060-37020 |
BU96..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92700 |
BU96..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65020-92700 |
BU96..CBU 2ND,3RD,6TH,7TH |
4 | ||
| 65060-37020 |
BU96..CBU 1ST,4TH,5TH,8TH |
4 | ||
| Common parts | ||||
| 90109-08119 | ||||
| 90119-08464 | ||||
| 90119-08465 | ||||
| 90149-60075 | ||||
| 90149-60076 | ||||
| 90149-60077 | ||||
| 90179-06113 | ||||
| 90467-08008 | ||||
| 90540-06004 | ||||
| 90541-06021 | ||||
| 91611-60814 | ||||
| 93210-16010 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 7455 | ||||
