BU96L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU88,9#

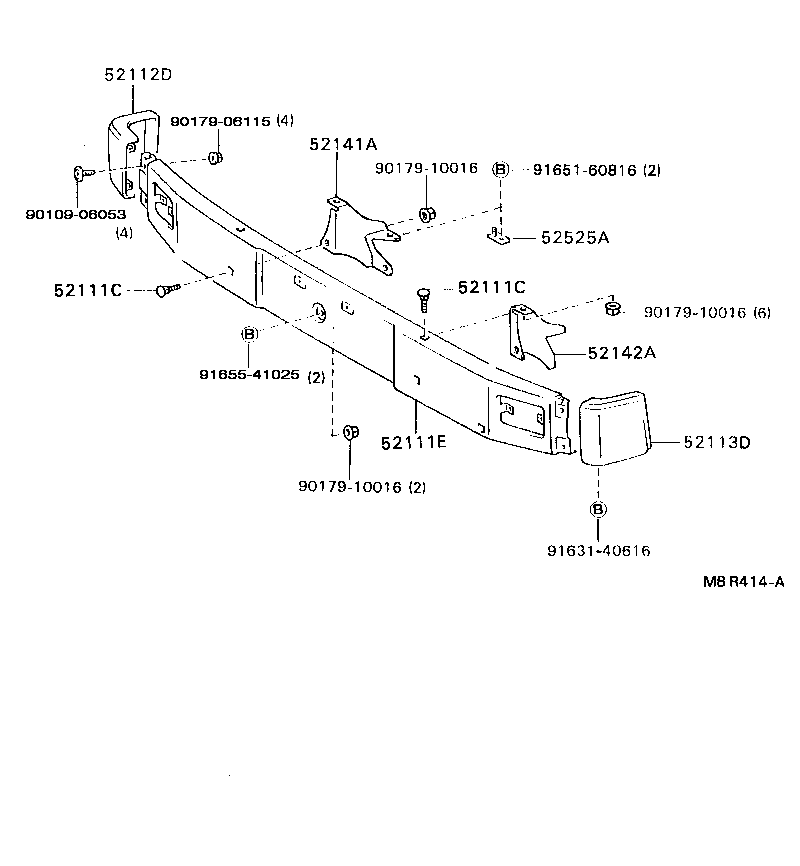

Click highlighted areas on diagram

diagram 52111C 52111C 52111E 52112D 52113D 52141A 52142A 52525A 9010906053 9017906115 9017910016 9017910016 9017910016 9163140616 9165160816 9165541025
Part # Description Qty Price
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU6#,70,8#,9#

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU6#,70,8#,9#

 4
52111E - BAR, FRONT BUMPER
52101-9540705

BU88,91,96..DSL..(GEN,SA)..(CBU,IV3)

W(FOG LAMP),BEIGE M,048

 1
52101-95407J0

BU88,91,96..DSL..(GEN,SA)..(CBU,IV3)

W(FOG LAMP),BLUE,8E5

 1
52101-9540703

BU88,91,96..DSL..(GEN,SA)..(CBU,IV3)

W(FOG LAMP),SILVER M,TRIM1#&048 ,391 ,541 ,6A9 ,8E5

 1
52111-9544403

BU88,9#..DSL

GRAY M,048 ,391 ,541 ,6A9 ,8E5

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

BU6#,70,8#,9#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

BU6#,70,8#,9#

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95404

BU88,9#

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95404

BU88,9#

 1
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

BU88,9#

 2
Common parts
90109-06053
90179-06115
90179-10016
91631-40616
91651-60816
91655-41025
