BU96L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

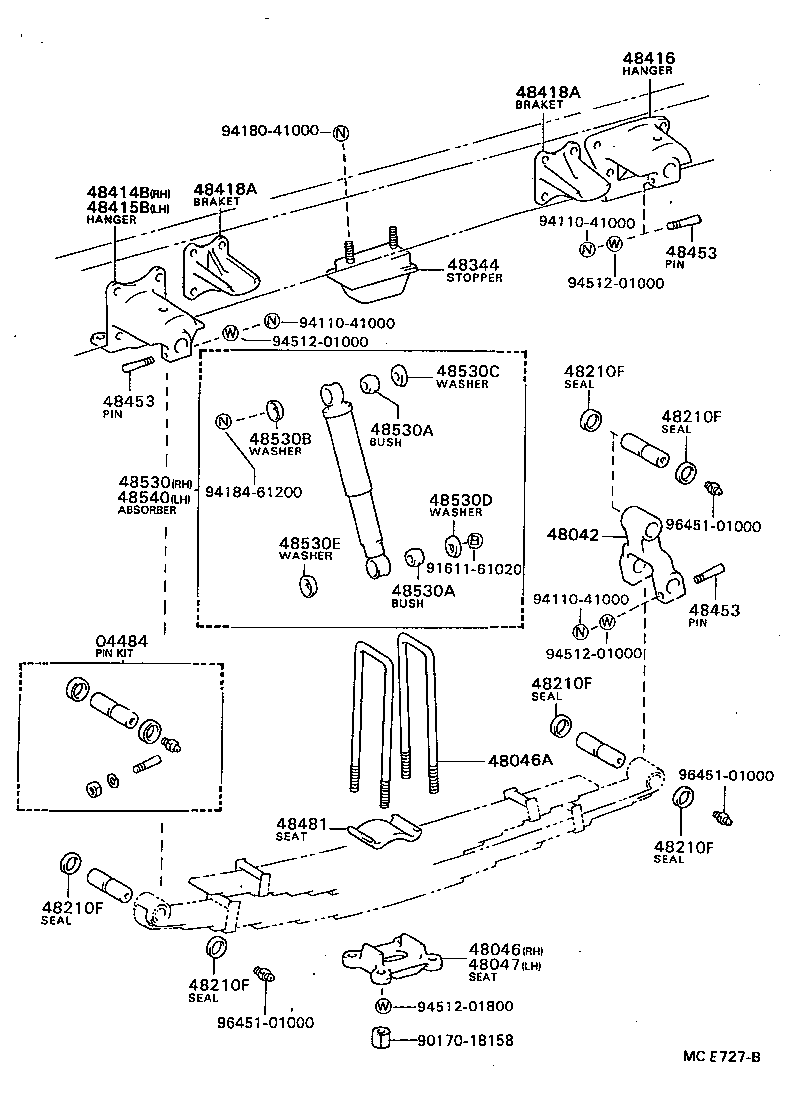

ILLUST NO. 1 OF 2(8808- )BU91,96

Click highlighted areas on diagram

diagram 04484 48042 48046 48046A 48047 48210F 48210F 48210F 48210F 48210F 48210F 48344 48414B 48415B 48416 48418A 48418A 48453 48453 48453 48481 48530 48530A 48530A 48530B 48530C 48530D 48530E 48540 9017018158 9161161020 9411041000 9411041000 9411041000 9418041000 9418461200 9451201000 9451201000 9451201000 9451201800 9645101000 9645101000 9645101000
Part # Description Qty Price
04484 - PIN KIT, REAR SPRING
04484-36030

BU91,96

 6
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37901

BU91,96

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
42152-36030

BU91,96

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-18005

BU91,96..DSL..(ARL,GEN)

L=350,HEVY DUTY SPEC

 4
90117-18002

BU91,96

L=330

 4
90117-18005

BU91..ARL;BU91..CBU;BU96..LHD..DSL;BU91..LHD..DSL..IV3

L=350,HEVY DUTY SPEC

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
42152-36030

BU91,96

 1
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48344 - STOPPER, BUMPER, REAR
48344-36190

BU83,84,87,91,96

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36150

BU91,96

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36150

BU91,96

 1
48416 - BRACKET, SPRING, NO.4
48416-36160

BU91,96

 2
48418A - BRACKET, HELPER SPRING, FRONT
48418-37010

BU91,96

 4
48418A - BRACKET, HELPER SPRING, FRONT
48418-37010

BU91,96

 4
48453 - PIN, REAR SPRING PIN LOCK
48453-55010

BU91,96

 6
48453 - PIN, REAR SPRING PIN LOCK
48453-55010

BU91,96

 6
48453 - PIN, REAR SPRING PIN LOCK
48453-55010

BU91,96

 6
48481 - SEAT, REAR SPRING, UPPER
48481-37011

BU91,96

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39725

BU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)

 1
48531-39726

BU60,61,66,83,84,91,96..T3..WT..(ARL,GEN,SA)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU6#,70,8#,9#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU6#,70,8#,9#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

BU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU6#,8#,9#..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

BU66..T3..WT;BU60,61,65,67,83,84,91,96..WT..(ARL,GEN,SA)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU6#,70,8#,9#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39725

BU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)

 1
48531-39726

BU60,61,66,83,84,91,96..T3..WT..(ARL,GEN,SA)

 1
Common parts
90170-18158
91611-61020
94110-41000
94180-41000
94184-61200
94512-01000
94512-01800
96451-01000

ILLUST NO. 1 OF 2(8808- )BU60,61,66,8#,9#..WT

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48344 48414B 48415B 48416 48418A 48418A 48422A 48435 48435 48475R 48481 48516 48517 48530 48530A 48530A 48530B 48530C 48530D 48530E 48540 48542 9010116018 9010116021 9010516021 9017016016 9017016016 9017016016 9017016139 9161161020 9161161030 9165160820 9418041000 9418041000 9418041000 9418461200 9418461600 9462111600 9462111600 9462111600 9462111600
Part # Description Qty Price
04484 - PIN KIT, REAR SPRING
04484-36030

BU91,96

 6
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
42152-36030

BU91,96

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-18005

BU91,96..DSL..(ARL,GEN)

L=350,HEVY DUTY SPEC

 4
90117-18002

BU91,96

L=330

 4
90117-18005

BU91..ARL;BU91..CBU;BU96..LHD..DSL;BU91..LHD..DSL..IV3

L=350,HEVY DUTY SPEC

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
42152-36030

BU91,96

 1
48344 - STOPPER, BUMPER, REAR
48344-36190

BU83,84,87,91,96

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36150

BU91,96

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36150

BU91,96

 1
48416 - BRACKET, SPRING, NO.4
48416-36160

BU91,96

 2
48418A - BRACKET, HELPER SPRING, FRONT
48418-37010

BU91,96

 4
48418A - BRACKET, HELPER SPRING, FRONT
48418-37010

BU91,96

 4
48481 - SEAT, REAR SPRING, UPPER
48481-37011

BU91,96

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39725

BU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)

 1
48531-39726

BU60,61,66,83,84,91,96..T3..WT..(ARL,GEN,SA)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU6#,70,8#,9#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU6#,70,8#,9#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

BU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU6#,8#,9#..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

BU66..T3..WT;BU60,61,65,67,83,84,91,96..WT..(ARL,GEN,SA)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU6#,70,8#,9#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39725

BU60,61,66,83,84,91,96..WT..(ARL,GEN,SA)

 1
48531-39726

BU60,61,66,83,84,91,96..T3..WT..(ARL,GEN,SA)

 1
Common parts
90101-16018
90101-16021
90105-16021
90170-16016
90170-16139
91611-61020
91611-61030
91651-60820
94180-41000
94184-61200
94184-61600
94621-11600

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48216 48220 48220 48246 48247 48247 48256 9411040800 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
Common parts
94110-40800
94110-51000

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 4819136130 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48220 48220 48246 48246 48247 48247 48253 48256 48256 48261 48261 48262 48262 48263 48263 48264 48264 48265 48265 9411040800 9411040800 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
Common parts
48191-36130
94110-40800
94110-51000

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48217 48220 48220 48247 48247 48261 48261 48262 48262 48263 48263 48264 48264 48265 48265 48266 48266 48267 48268 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48267 - LEAF, REAR HELPER SPRING, NO.7
48224-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
48268 - LEAF, REAR HELPER SPRING, NO.8
48225-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
Common parts
94110-51000

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48210F 48210F 48210F 48210F 48210F 48210F 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48216 48216 48220 48220 48220 48247 48247 48247 48253 48253 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48266 48266 48267 48267 48268 48268 48269 48269 48271 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48210F - SEAL, DUST(FOR REAR SPRING PIN)
90304-27009

BU91,96

 8
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48267 - LEAF, REAR HELPER SPRING, NO.7
48224-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
48267 - LEAF, REAR HELPER SPRING, NO.7
48224-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
48268 - LEAF, REAR HELPER SPRING, NO.8
48225-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
48268 - LEAF, REAR HELPER SPRING, NO.8
48225-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
48269 - LEAF, REAR HELPER SPRING, NO.9
48226-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
48269 - LEAF, REAR HELPER SPRING, NO.9
48226-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
Common parts
94110-51000

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48217 48218 48220 48220 48220 48247 48247 48247 48251 48251 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48266 48266 48267 48268 9411051000 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48266 - LEAF, REAR HELPER SPRING, NO.6
48223-3B300

BU91,96

 2
48223-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48223-3C110

BU91,96

LH

 1
48223-3B300

BU91,96

RH

 1
48267 - LEAF, REAR HELPER SPRING, NO.7
48224-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
48268 - LEAF, REAR HELPER SPRING, NO.8
48225-3B310

BU91..ARL;BU91..CBU;BU96..DSL..GEN;BU91..LHD..DSL..IV3

 2
Common parts
94110-51000

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48216 48220 48247 482533B691 482533B691 48254 48254 48254 48254 48254 48255 48255 48255 48255 48261 48262 48263 9030427009 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
Common parts
48253-3B691
90304-27009
94110-51000

ILLUST NO. 2 OF 2(9307- )

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48216 48217 48217 48220 48247 48253 48261 48262 48263 48264 48265 9418461000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28120

BU91,96

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48201-3B300

BU91,96

 2
48201-3C110

BU91,96

LH

 1
48201-3B300

BU91,96

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-3B300

BU91,96

 2
48212-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48212-3B300

BU91,96

RH

 1
48212-3C110

BU91,96

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48202-3B300

BU91,96

 2
48202-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48202-3B300

BU91,96

RH

 1
48202-3C110

BU91,96

LH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-3B300

BU91,96

 2
48214-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48214-3B300

BU91,96

RH

 1
48214-3C110

BU91,96

LH

 1
48215 - LEAF, REAR SPRING, NO.5
48215-3B300

BU91,96

 2
48215-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48215-3C110

BU91,96

LH

 1
48215-3B300

BU91,96

RH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48216 - LEAF, REAR SPRING, NO.6
48216-3B300

BU91,96

 2
48216-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48216-3B300

BU91,96

RH

 1
48216-3C110

BU91,96

LH

 1
48220 - SPRING ASSY, REAR LH
48210-3B300

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48210-3B310

BU91,96..DSL..(ARL,GEN)

MAIN 6+HELPER 9-LEAF,HEAVY DUTY SPEC

 1
48210-3C110

BU91,96

MAIN 6+HELPER 6-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3C110

BU91,96

LH

 1
48247-36630

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48247-36300

BU91,96

 2
48247-36300

BU91,96

RH

 1
48261 - LEAF, REAR HELPER SPRING, NO.1
48217-3B300

BU91,96

 2
48217-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48217-3B300

BU91,96

RH

 1
48217-3C110

BU91,96

LH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48218-3B300

BU91,96

 2
48218-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48218-3B300

BU91,96

RH

 1
48218-3C110

BU91,96

LH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-3B300

BU91,96

 2
48219-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48203-3B300

BU91,96

RH

 1
48203-3C110

BU91,96

LH

 1
48264 - LEAF, REAR HELPER SPRING, NO.4
48221-3B300

BU91,96

 2
48221-3B300

BU91,96

RH

 1
48203-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48221-3C110

BU91,96

LH

 1
48265 - LEAF, REAR HELPER SPRING, NO.5
48204-3B310

BU91,96..DSL..(ARL,GEN)

HEAVY DUTY SPEC

 2
48222-3B300

BU91,96

 2
48222-3C110

BU91,96

LH

 1
48222-3B300

BU91,96

RH

 1
Common parts
94184-61000
