BU96L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU88,91,96..LHD

Click highlighted areas on diagram

diagram 33740A 33740A 38907E 38920A 38930A 38954A 38956C 38961 38962 38982 38982 5813693101 9024908001 9046108047 9046108047 9046108047 9046108116 9161160616 9161160616 9161160616 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9411040600 9411040800 9411040800 9451200600 9451200600 9616000600
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740-96301

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740-96301

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93110

BU88,91,96..LHD

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93101

BU88,91,96..LHD

 1
38930A - CABLE ASSY, PUSH PULL
38930-93120

BU88,91,96..LHD

 1
38961 - BRACKET, CABLE CLAMP, NO.1
38961-93105

BU88,91,96..LHD

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-93100

BU88,91,96..LHD

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982-96302

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982-96302

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
Common parts
58136-93101
90249-08001
90461-08047
90461-08116
91611-60616
91611-60816
91611-60820
94110-40600
94110-40800
94512-00600
96160-00600

(8808- )BU88,91,96..LHD

Click highlighted areas on diagram

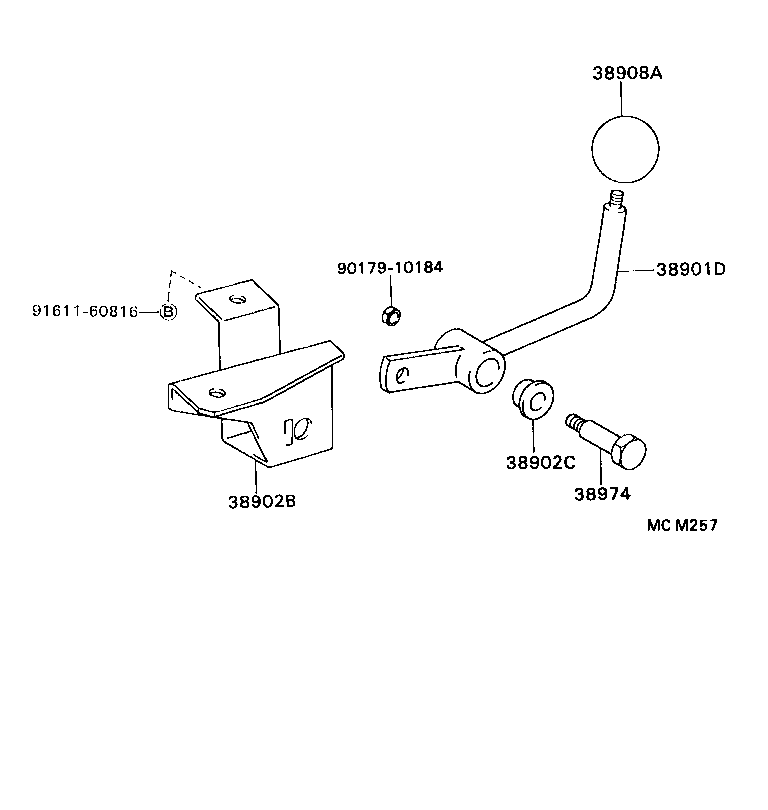

diagram 38901D 38902B 38902C 38908A 38974 9017910184 9161160816
Part # Description Qty Price
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-93105

BU88,91,96..LHD

 1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-93105

BU88,91,96..LHD

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90389-16001

BU88,91,96..LHD

 1
38908A - KNOB SUB-ASSY, CONTROL LEVER
38908-93104

BU88,91,96..LHD

 1
38974 - SHAFT, POWER TAKE-OFF CONTROL ARM
38974-93100

BU88,91,96..LHD

 1
Common parts
90179-10184
91611-60816
