BU96L-MDDT (1988)
Toyota Dyna 200

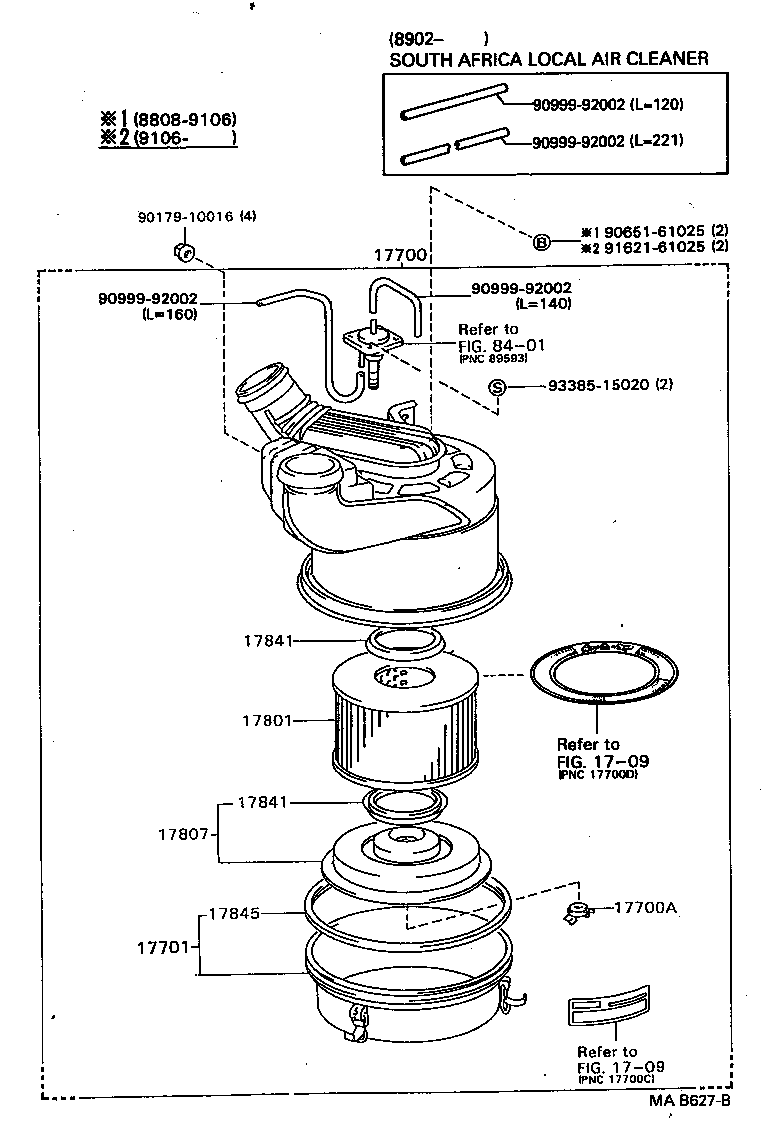

ILLUST NO. 1 OF 2(8808- )14B#..BU88,91,96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58280 |
14B..BU88,91,96..(GEN,SA)..(CBU,IV3) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
11B,14B..BU65,88,9#;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
11B,14B..BU65,88,9#;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58010 |
14B..BU88,9# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90179-10016 | ||||
| 90651-61025 | ||||
| 90999-92002 | ||||
| 91621-61025 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

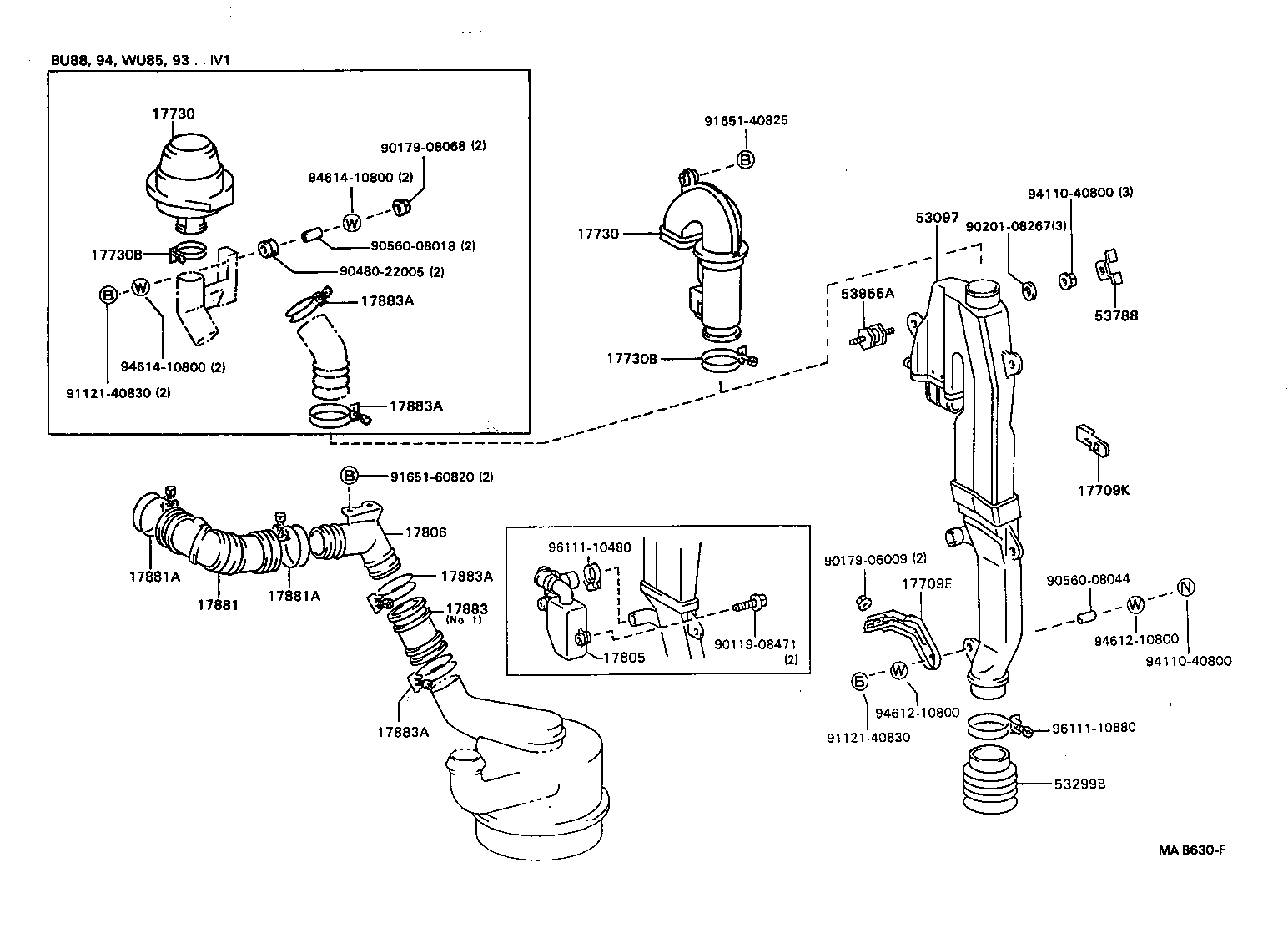

ILLUST NO. 2 OF 2(8808- )14B..BU88,91,96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95401 |
14B#..BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-95402 |
14B#..BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56030 |
14B..BU88,91,96..T3..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 17730-56030 |
14B..BU88,91,96..GEN..(CBU,IV3) |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56030 |
14B..BU88,91,96..T3..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 17730-56030 |
14B..BU88,91,96..GEN..(CBU,IV3) |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
14B..BU66;14B..BU91..GEN;11B,14B..BU61,65,96..WT..(ARL,GEN);B,11B,14B..BU60,70,8#..(GEN,GHD,SA)..(CBU,IV3) |
1 | ||
| 96111-10880 |
14B..BU66,88..T3..(CBU,IV3);11B,14B..BU61,65,91,96..WT..(ARL,GEN);B,11B,14B..BU60,67,70,83,84,87..GEN,GHD,SA |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
14B..BU66;14B..BU91..GEN;11B,14B..BU61,65,96..WT..(ARL,GEN);B,11B,14B..BU60,70,8#..(GEN,GHD,SA)..(CBU,IV3) |
1 | ||
| 96111-10880 |
14B..BU66,88..T3..(CBU,IV3);11B,14B..BU61,65,91,96..WT..(ARL,GEN);B,11B,14B..BU60,67,70,83,84,87..GEN,GHD,SA |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-58020 |
14B..BU88,9# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58150 |
14B..BU88,9# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-58040 |
14B..BU88,9# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
14B..BU88,9# PIPE SIDE |
1 | ||
| 96111-10930 |
14B..BU88,9# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
14B..BU88,9# PIPE SIDE |
1 | ||
| 96111-10930 |
14B..BU88,9# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
14B..BU88,9# PIPE SIDE |
1 | ||
| 96111-10930 |
14B..BU88,9# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
14B..BU88,9# PIPE SIDE |
1 | ||
| 96111-10930 |
14B..BU88,9# AIR CLEANER SIDE |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95418 |
BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 53097-95418 |
BU88,91,96..DSL..(GEN,SA)..(CBU,IV3) |
1 | ||
| 53097-95420 |
BU88..LHD;BU88..RHD..CBU;BU91,96..DSL..GEN AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-95401 |
BU88..LHD;BU91,96..GEN;BU88..RHD..CBU |
1 | ||
| 53788 - BRACKET, AIR CLEANER INLET, NO.6 | ||||
| 53788-95400 |
BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
BU88,91,96..T3..(CBU,IV3) |
3 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90179-06009 | ||||
| 90179-08068 | ||||
| 90201-08267 | ||||
| 90480-22005 | ||||
| 90560-08018 | ||||
| 90560-08044 | ||||
| 91121-40830 | ||||
| 91651-40825 | ||||
| 91651-60820 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
| 94614-10800 | ||||
| 96111-10480 | ||||
| 96111-10880 | ||||
ILLUST NO. 1 OF 2(8808- )
SCHNORKEL TYPE & W(PRECLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58280 |
14B..BU88,91,96..(GEN,SA)..(CBU,IV3) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
11B,14B..BU65,88,9#;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
11B,14B..BU65,88,9#;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58010 |
14B..BU88,9# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 90999-92002 | ||||
| 91651-61025 | ||||
| 91661-60825 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
