BU96L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )14B#..BU88,9#..GEN,SA

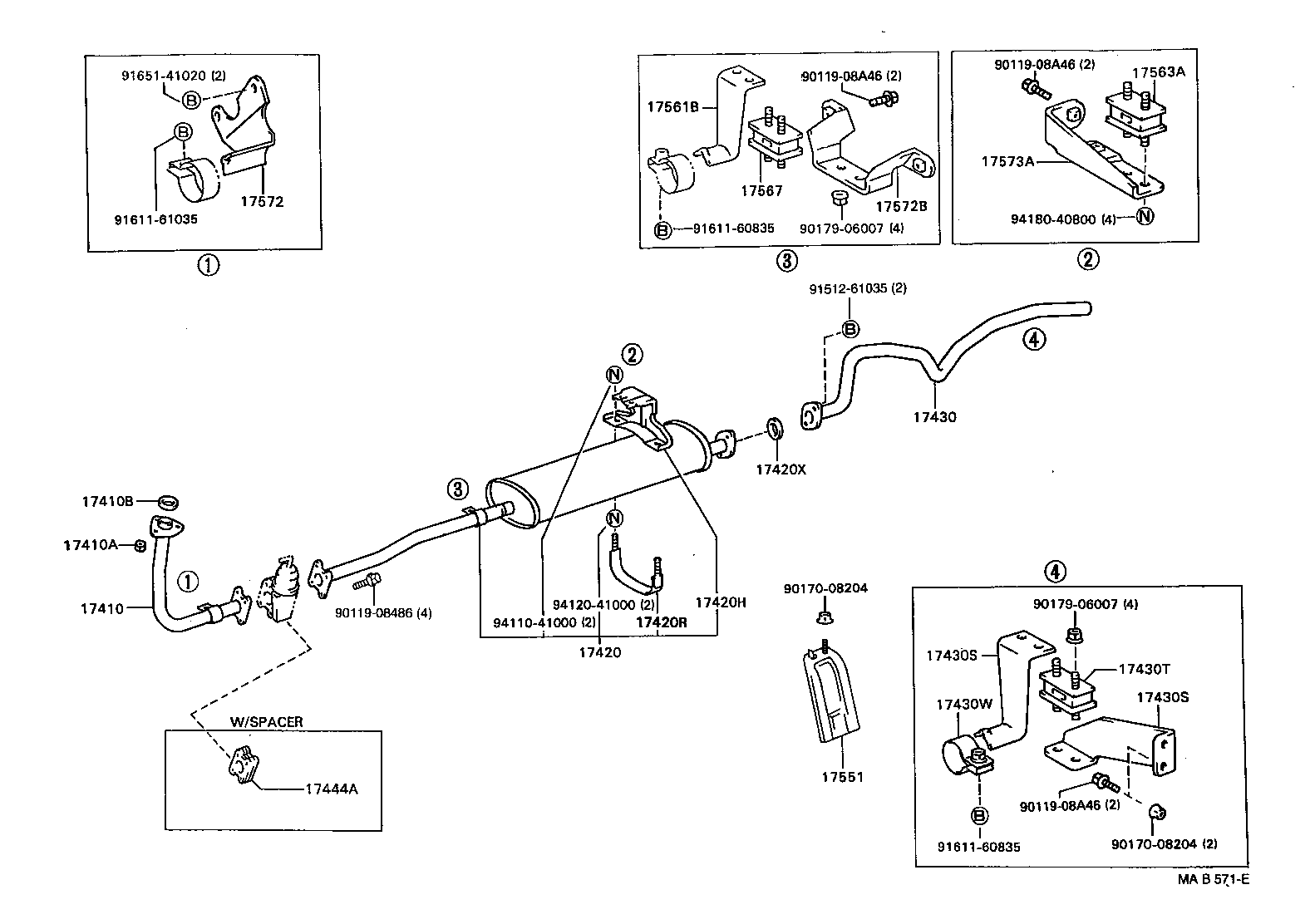

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420H 17420R 17420X 17430 17430S 17430S 17430T 17430W 17444A 17551 17561B 17563A 17567 17572 17572B 17573A 9011908486 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017906007 9017906007 9151261035 9161160835 9161160835 9161161035 9165141020 9411041000 9412041000 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58100

14B..BU88,9#..GEN,SA

 1
17401-58100

14B..BU88,9#..GEN,SA

 1
17401-58101

14B..BU88,9#..GEN,SA

 1
17401-58101

14B..BU88,9#..GEN,SA

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,14B#..BU6#,70,8#,9#

 3
90179-10070

B,11B,14B#..BU6#,70,8#,9#

 3
17410B - GASKET, EXHAUST PIPE
90917-06034

B,11B,14B#..BU6#,70,8#,9#

 1
90917-06034

B,11B,14B#..BU6#,70,8#,9#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58300

14B..BU94;14B..BU96..SA;14B#..BU96..LHD

 1
17420-58300

14B..BU94;14B..BU96..SA;14B#..BU96..LHD

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

14B#..BU88,9#

 1
17576-56040

14B#..BU88,9#

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

14B#..BU88,9#

 1
17504-56020

14B#..BU88,9#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06005

B,11B,14B#..BU6#,70,8#,9#

 1
90917-06005

B,11B,14B#..BU6#,70,8#,9#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58250

14B#..BU88,9#..GEN,SA

 1
17405-58250

14B#..BU88,9#..GEN,SA

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

14B#..BU88,91..GEN,SA;B,11B,14B#..BU60,61,66,83,84,87,94,96..WT

BODY SIDE

 1
17574-58040

14B#..BU88,91..GEN,SA;B,11B,14B#..BU60,61,66,83,84,87,94,96..WT

BODY SIDE

 1
17561-47010

14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9#

PIPE SIDE

 1
17561-47010

14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9#

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

14B#..BU88,91..GEN,SA;B,11B,14B#..BU60,61,66,83,84,87,94,96..WT

BODY SIDE

 1
17574-58040

14B#..BU88,91..GEN,SA;B,11B,14B#..BU60,61,66,83,84,87,94,96..WT

BODY SIDE

 1
17561-47010

14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9#

PIPE SIDE

 1
17561-47010

14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9#

PIPE SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

14B..BU88..T3;B,11B,14B#..BU6#,70,83,84,87,9#

 1
17567-61030

14B..BU88..T3;B,11B,14B#..BU6#,70,83,84,87,9#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

14B#..BU88,91..GEN,SA;B,11B,14B#..BU6#,70,83,84,87,94,96

 1
90461-32007

14B#..BU88,91..GEN,SA;B,11B,14B#..BU6#,70,83,84,87,94,96

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-47010

B,11B,14B#..BU8#,9#..GEN,GHD,SA

 1
17561-47010

B,11B,14B#..BU8#,9#..GEN,GHD,SA

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-58010

14B#..BU88,9#

 1
17567-58010

14B#..BU88,9#

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-61030

B,11B,14B#..BU8#,9#..GEN,GHD,SA

 1
17567-61030

B,11B,14B#..BU8#,9#..GEN,GHD,SA

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58170

14B#..BU88,9#..GEN,SA

 1
17571-58170

14B#..BU88,9#..GEN,SA

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-58030

14B#..BU88,9#..GEN,SA

 1
17572-58030

14B#..BU88,9#..GEN,SA

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58060

14B..BU88,9#..GEN,SA

 1
17573-58060

14B..BU88,9#..GEN,SA

 1
17573-58061

14B..BU88,9#..GEN,SA

 1
17573-58061

14B..BU88,9#..GEN,SA

 1
Common parts
90119-08486
90119-08A46
90170-08204
90179-06007
91512-61035
91611-60835
91611-61035
91651-41020
94110-41000
94120-41000
94180-40800
