BU94R-MDDHT1 (1988)

Toyota Dyna 200

Production Aug 1988 - Mar 1997
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU88,9#

Click highlighted areas on diagram

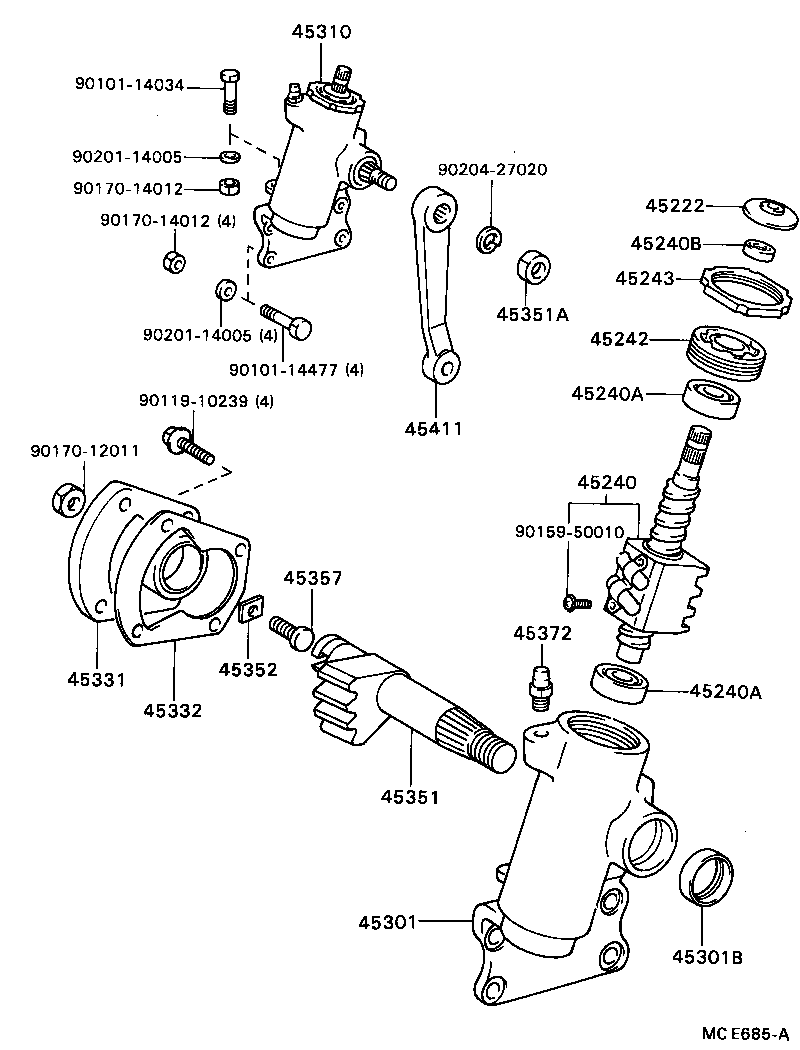

MANUAL STEERING

diagram 45222 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351 45351A 45352 45357 45372 45411 9010114034 9010114477 9011910239 9015950010 9017012011 9017014012 9017014012 9020114005 9020114005 9020427020
Part # Description Qty Price
45222 - COVER, STEERING GEAR DUST
45222-26010

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

 1
45222-26010

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 1
45240 - WORM ASSY, STEERING
45240-36170

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45240A - BEARING(FOR STEERING WORM)
90363-20024

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 2
90363-20024

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

 2
45240A - BEARING(FOR STEERING WORM)
90363-20024

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 2
90363-20024

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-18010

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-25010

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-60020

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-36230

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90311-38033

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-36250

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45310-36251

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45331 - COVER, SECTOR SHAFT END
45304-36060

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-36040

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45351 - SHAFT, STEERING SECTOR
45351-36050

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45351-36051

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-27033

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

 1
90170-27033

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 1
45352 - WASHER, SECTOR SHAFT THRUST
45353-37010

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

T=2.00

 1
45354-37010

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

T=2.05

 1
45352-37010

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

T=1.95

 1
45352-37010

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

T=1.95

 1
45353-37010

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

T=2.00

 1
45354-37010

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

T=2.05

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-36010

BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL

 1
45357-36010

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

BU88,94,96..DSL;BU91..DSL..(GEN,SA)

 1
45411 - ARM, PITMAN
45411-36490

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45411-36491

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
Common parts
90101-14034
90101-14477
90119-10239
90159-50010
90170-12011
90170-14012
90201-14005
90204-27020

(8808- )

Click highlighted areas on diagram

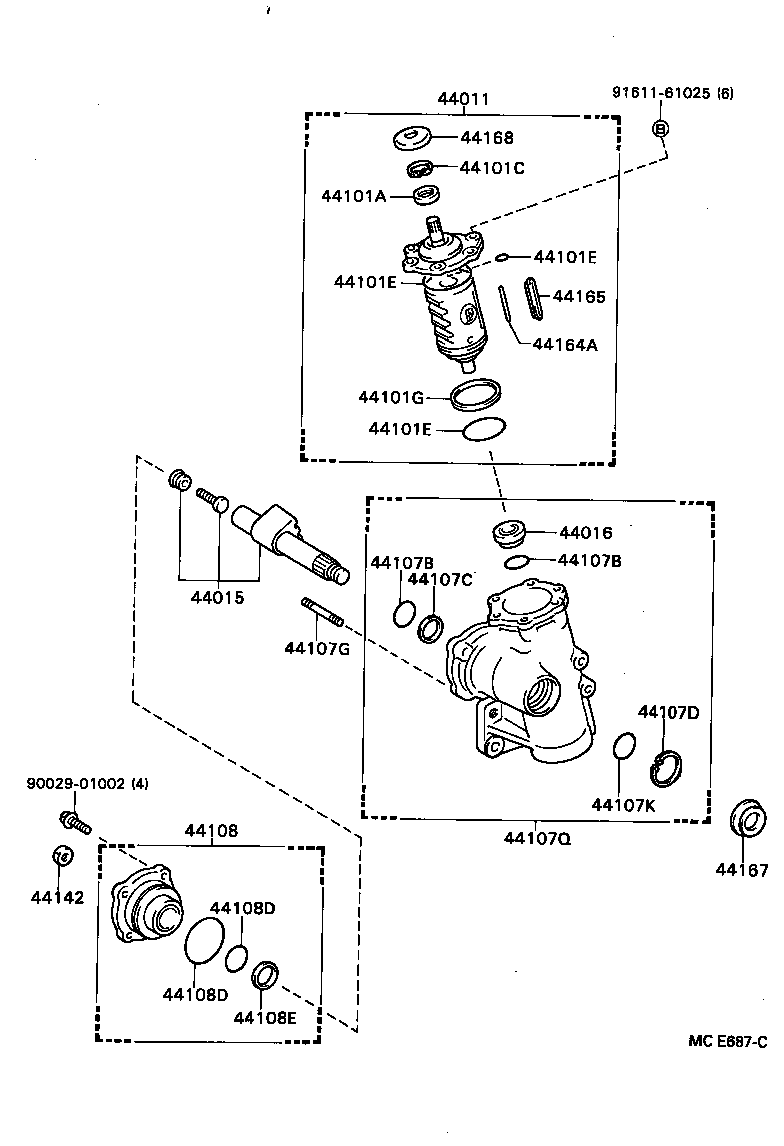

diagram 44011 44015 44016 44101A 44101C 44101E 44101E 44101E 44101G 44107B 44107B 44107C 44107D 44107G 44107K 44107Q 44108 44108D 44108D 44108E 44142 44164A 44165 44167 44168 9002901002 9161161025
Part # Description Qty Price
Common parts
90029-01002
91611-61025

(8808- )

Click highlighted areas on diagram

POWER STEERING

diagram 04445 04455A 44110 44110 44110D 44110D 44110D 44110D 44251A 44251A 44251D 44251D 45411 45411 9017014012 9017014012 9017014012 9017014012 9017014012 9020114005 9020114005 9020114005 9020114005 9020114005 9020114005
Part # Description Qty Price
45411 - ARM, PITMAN
45411-36490

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45411-36491

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45411 - ARM, PITMAN
45411-36490

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
45411-36491

BU88,94,96..RHD;BU91..RHD..(GEN,SA)

 1
Common parts
90170-14012
90201-14005

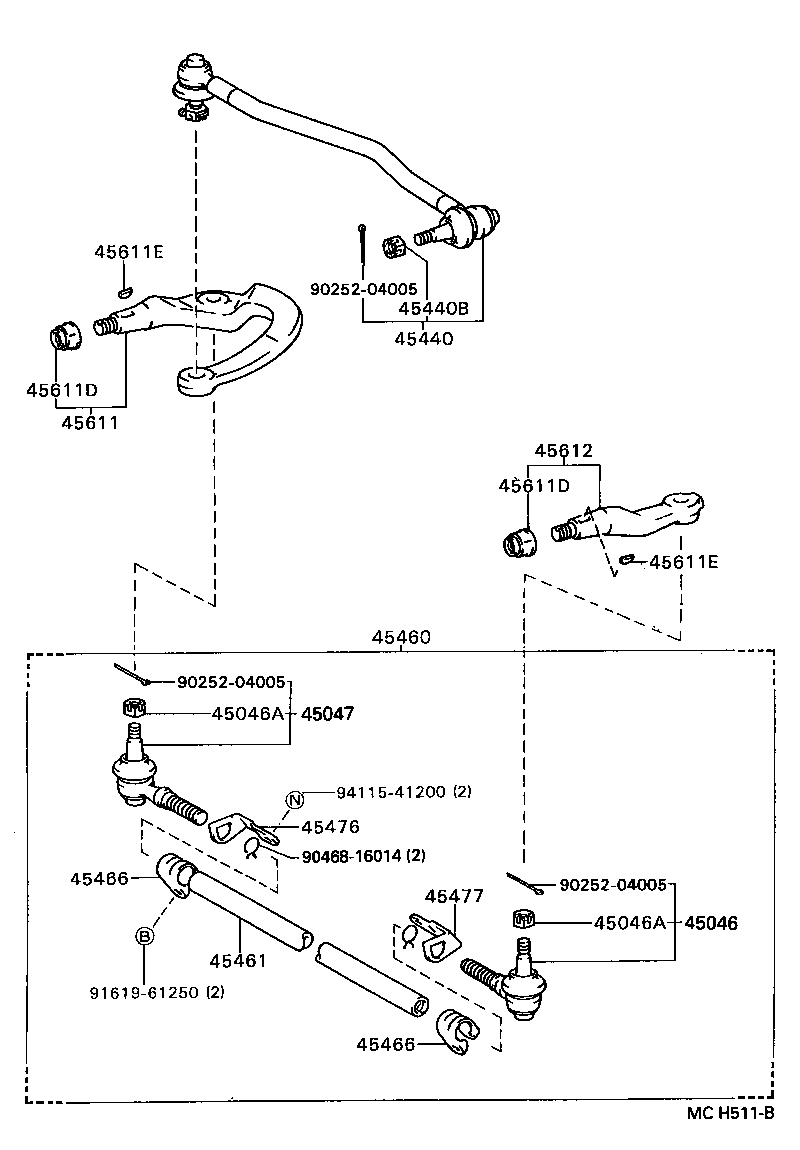

(8808- )BU88,9#
