BU94R-MDDHT1 (1988)

Toyota Dyna 200

Production Aug 1988 - Mar 1997
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

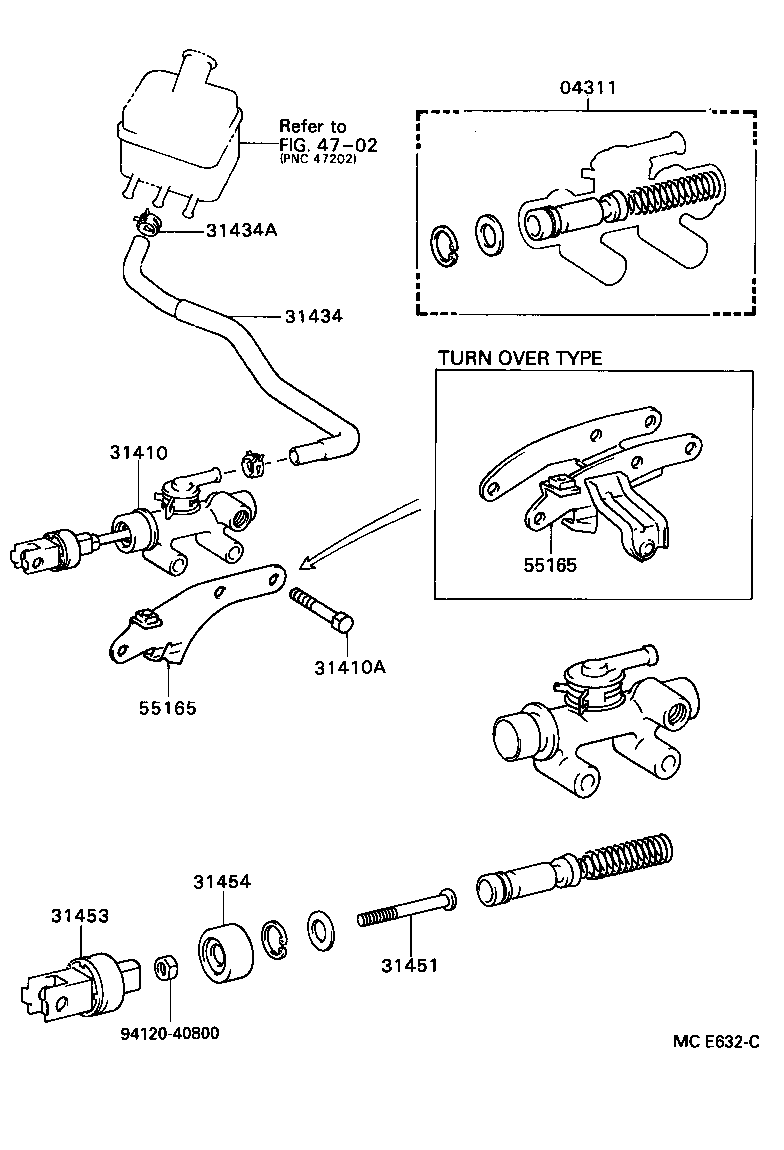

Click highlighted areas on diagram

diagram 04311 31410 31410A 31434 31434A 31451 31453 31454 4702 55165 55165 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-36080

BU6#,70,8#,9#..5F

 1
04311-36081

BU6#,70,8#,9#..5F..DSL

 1
04311-36082

BU60,61,65,67,70,8#,9#..DSL

 1
04311-36082

BU88,94

 1
04311-36180

BU88,94

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-36130

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91611-60865

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 2
31434 - TUBE, CLUTCH RESERVOIR
31434-36210

BU88,9#..RHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

BU6#,70,8#,9#..5F

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-36040

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-36020

BU6#,70,8#,9#..5F

 1
31404-36021

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
31404-35011

BU88,94

 1
31404-36021

BU88,94

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55165-95402

BU67,9#;BU66..TS;BU66..T2;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#..DSL;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#;BU88..IV1;BU84,88..ARL,SA

 1
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55165-95402

BU67,9#;BU66..TS;BU66..T2;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#..DSL;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#;BU88..IV1;BU84,88..ARL,SA

 1
Common parts
94120-40800
Linked diagrams
4702

(8808-8910)

Click highlighted areas on diagram

diagram 04311 31410 31410B 31410C 31410D 31410D 31434 31434A 31453 55165 9017908146 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-36080

BU6#,70,8#,9#..5F

 1
04311-36081

BU6#,70,8#,9#..5F..DSL

 1
04311-36082

BU60,61,65,67,70,8#,9#..DSL

 1
04311-36082

BU88,94

 1
04311-36180

BU88,94

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-36130

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-36210

BU88,9#..RHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

BU6#,70,8#,9#..5F

 2
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-36020

BU6#,70,8#,9#..5F

 1
31404-36021

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
31404-35011

BU88,94

 1
31404-36021

BU88,94

 1
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55165-95402

BU67,9#;BU66..TS;BU66..T2;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#..DSL;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#;BU88..IV1;BU84,88..ARL,SA

 1
Common parts
90179-08146
94120-40800

(8910- )

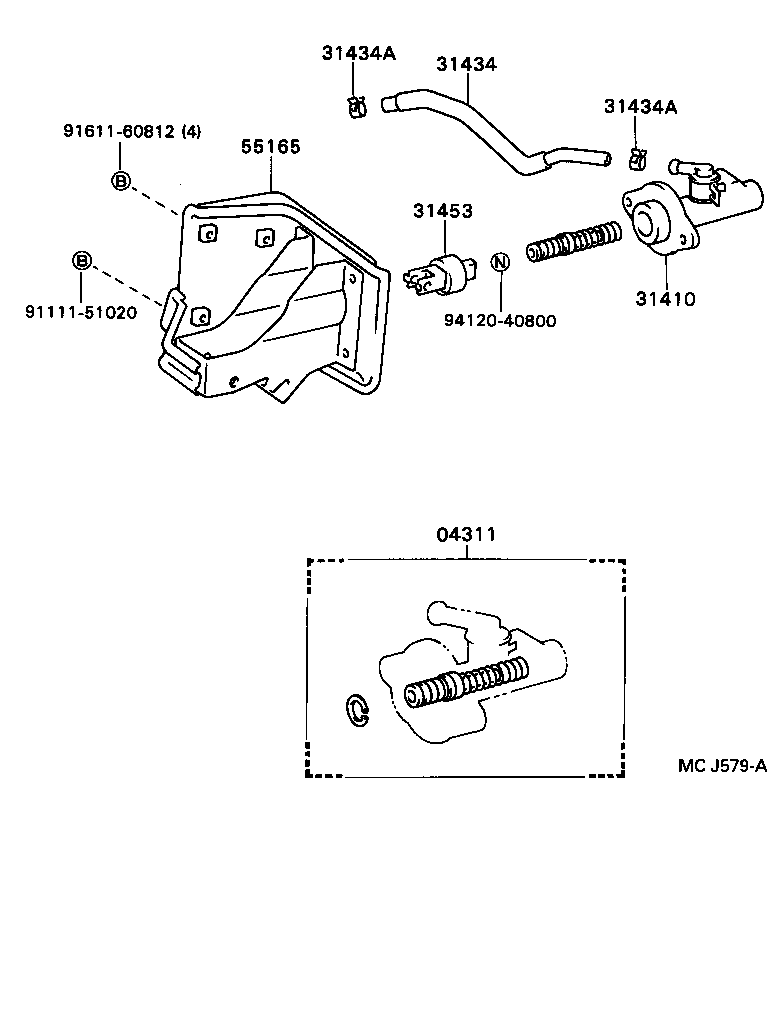

Click highlighted areas on diagram

diagram 04311 31410 31434 31434A 31434A 31453 55165 9111151020 9161160812 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-36080

BU6#,70,8#,9#..5F

 1
04311-36081

BU6#,70,8#,9#..5F..DSL

 1
04311-36082

BU60,61,65,67,70,8#,9#..DSL

 1
04311-36082

BU88,94

 1
04311-36180

BU88,94

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-36130

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-36210

BU88,9#..RHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

BU6#,70,8#,9#..5F

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

BU6#,70,8#,9#..5F

 2
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-36020

BU6#,70,8#,9#..5F

 1
31404-36021

BU66..GEN;BU60,61,65,67,70,8#,9#..DSL

 1
31404-35011

BU88,94

 1
31404-36021

BU88,94

 1
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55165-95402

BU67,9#;BU66..TS;BU66..T2;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#..DSL;BU88..IV1;BU84,88..ARL,SA

 1
55165-95402

BU9#;BU88..IV1;BU84,88..ARL,SA

 1
Common parts
91111-51020
91611-60812
94120-40800
