BU94R-MDDHT1 (1988)

Toyota Dyna 200

Production Aug 1988 - Mar 1997
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

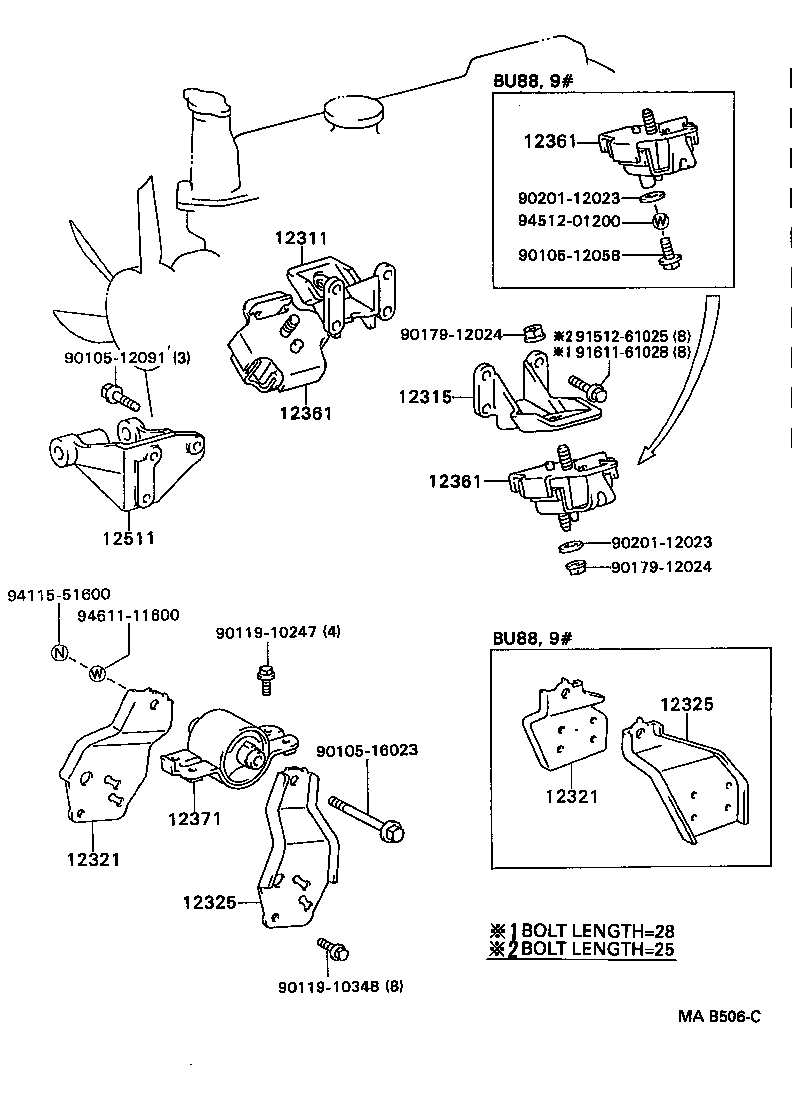

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12325 12325 12361 12361 12361 12371 12511 9010512058 9010512091 9010516023 9011910247 9011910348 9017912024 9017912024 9020112023 9020112023 9151261025 9161161028 9411551600 9451201200 9461111600
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-58021

14B#..BU88,9#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-58021

14B#..BU88,9#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-58050

14B#..BU88,94,96;14B#..BU91..GEN,SA

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-58050

14B#..BU88,94,96;14B#..BU91..GEN,SA

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-58050

14B#..BU88,94,96;14B#..BU91..GEN,SA

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-58050

14B#..BU88,94,96;14B#..BU91..GEN,SA

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58040

14B#..BU88,9#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58040

14B#..BU88,9#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58040

14B#..BU88,9#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-56041

14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-56010

B,11B,14B#..BU6#,70,8#,9#

 1
Common parts
90105-12058
90105-12091
90105-16023
90119-10247
90119-10348
90179-12024
90201-12023
91512-61025
91611-61028
94115-51600
94512-01200
94611-11600
