BU91R-MDDTQ3 (1988)
Toyota Dyna 200
(8808- )14B..BU88,91..ARL

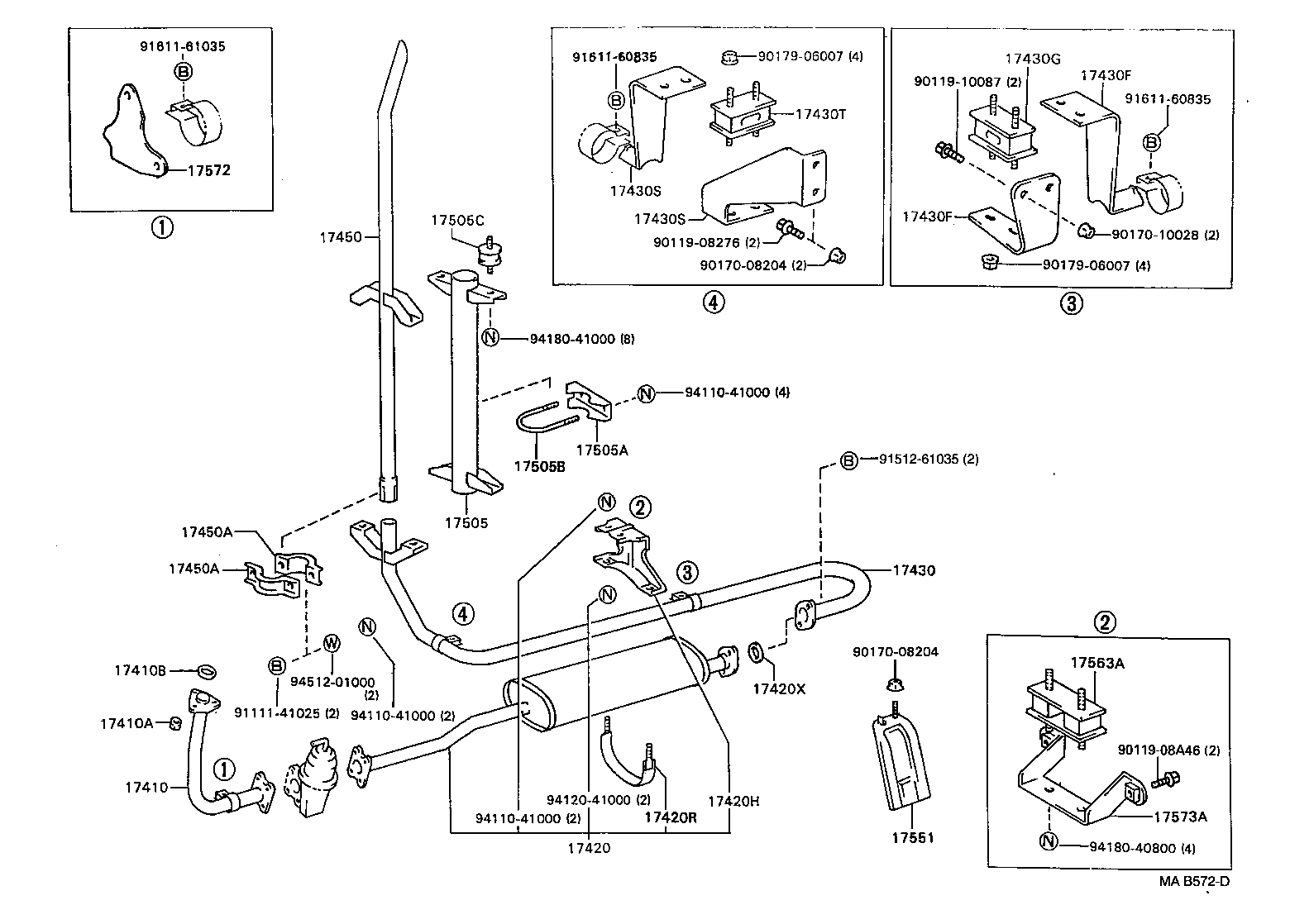

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58150 |
14B..BU88,91..ARL |
1 | ||
| 17401-58151 |
14B..BU88,91..ARL |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
B,11B,14B#..BU6#,70,8#,9# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06034 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58320 |
14B..BU91..ARL |
1 | ||
| 17420-58520 |
14B..BU91..ARL |
1 | ||
| 17420-58521 |
14B..BU91..ARL |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-56040 |
14B#..BU88,9# |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-56020 |
14B#..BU88,9# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06005 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58360 |
14B..BU88,91..T3..ARL |
1 | ||
| 17430-58310 |
14B..BU88,91..T3..ARL |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17561-47010 |
14B..BU88,91..ARL PIPE SIDE |
1 | ||
| 17574-58100 |
14B..BU88,91..ARL BODY SIDE |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17561-47010 |
14B..BU88,91..ARL PIPE SIDE |
1 | ||
| 17574-58100 |
14B..BU88,91..ARL BODY SIDE |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
14B..BU88,91..ARL |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58090 |
14B..BU88,91..T3..ARL BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9# PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58090 |
14B..BU88,91..T3..ARL BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9# PIPE SIDE |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
14B..BU88..T3;B,11B,14B#..BU6#,70,83,84,87,9# |
1 | ||
| 17450 - PIPE ASSY, EXHAUST, NO.5 | ||||
| 17450-58030 |
14B..BU88,91..ARL |
1 | ||
| 17450-58031 |
14B..BU88,91..ARL |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-47010 |
14B..BU88,91..ARL |
2 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-47010 |
14B..BU88,91..ARL |
2 | ||
| 17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1 | ||||
| 17505-77010 |
14B..BU88,91..ARL |
1 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-04029 |
14B..BU88,91..ARL |
2 | ||
| 17505B - BOLT, U(FOR HEAT INSULATOR CLAMP) | ||||
| 90117-10004 |
14B..BU88,91..ARL |
2 | ||
| 17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-08011 |
14B..BU88,91..ARL |
4 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-58020 |
14B#..BU91;14B..BU88,96..ARL,SA |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17567-58010 |
14B#..BU88,9# |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58190 |
14B..BU88,91..ARL |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-58070 |
14B..BU88,91..ARL |
1 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-08A46 | ||||
| 90119-10087 | ||||
| 90170-08204 | ||||
| 90170-10028 | ||||
| 90179-06007 | ||||
| 91111-41025 | ||||
| 91512-61035 | ||||
| 91611-60835 | ||||
| 91611-61035 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
| 94512-01000 | ||||
