BU91R-MDDTN3 (1988)
Toyota Dyna 200
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95426 |
BU84,91,96..SA |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95426 |
BU84,91,96..SA |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
BU65..CBU;BU60,61,66,67,70,8#,91,96..CBU,IV3 12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-23010 |
BU6#,70,8#,9# L=38.5 |
1 | ||
| 87828-32010 |
BU6#,70,8#,9# L=46.5 |
1 | ||
| 87828-30010 |
BU6#,70,8#,9# L=43.5 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-23010 |
BU6#,70,8#,9# L=38.5 |
1 | ||
| 87828-32010 |
BU6#,70,8#,9# L=46.5 |
1 | ||
| 87828-30010 |
BU6#,70,8#,9# L=43.5 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95701 |
BU6#,70,8#,9# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95701 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90152-60008 | ||||

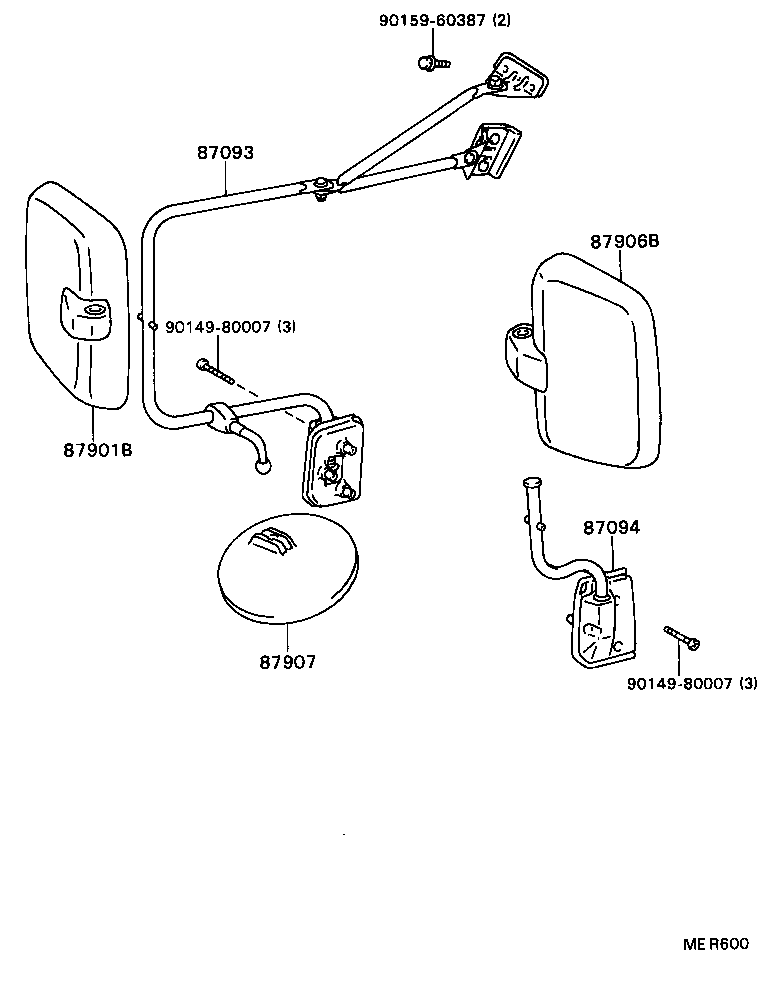

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH | ||||
| 87093-95402 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT..(GEN,GHD,SA) |
1 | ||
| 87093-37050 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT |
1 | ||
| 87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH | ||||
| 87093-95402 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT..(GEN,GHD,SA) |
1 | ||
| 87093-37050 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95403 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT..(GEN,GHD,SA) |
1 | ||
| 87094-37110 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95403 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT..(GEN,GHD,SA) |
1 | ||
| 87094-37110 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-95417 |
BU84,91,96..SA |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-95417 |
BU84,91,96..SA |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95417 |
BU84,91,96..SA |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95417 |
BU84,91,96..SA |
1 | ||
| Common parts | ||||
| 90149-80007 | ||||
ILLUST NO. 2 OF 2(9004- )
TAIWAN SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH | ||||
| 87093-95402 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT..(GEN,GHD,SA) |
1 | ||
| 87093-37050 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95403 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT..(GEN,GHD,SA) |
1 | ||
| 87094-37110 |
BU91,96..SA;BU60,61,83,84,87..RHD..WT |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-95417 |
BU84,91,96..SA |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95417 |
BU84,91,96..SA |
1 | ||
| Common parts | ||||
| 90149-80007 | ||||
| 90159-60387 | ||||
