BU91R-MDDT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

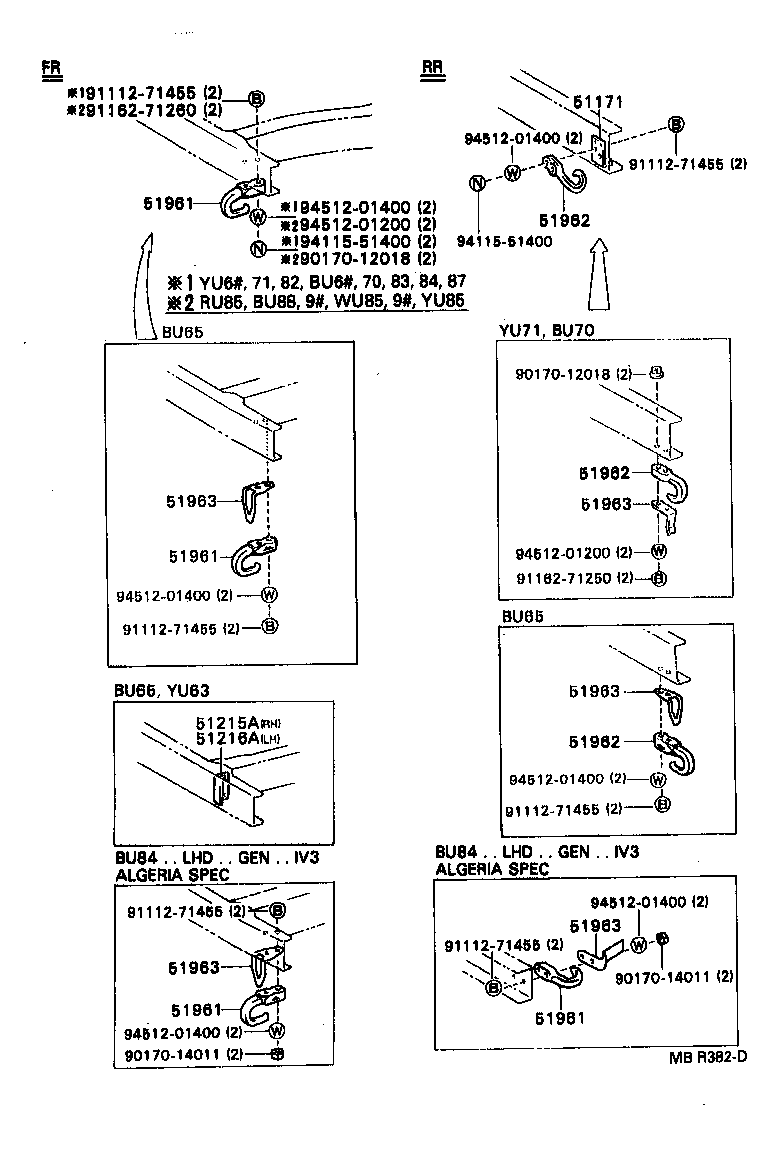

Click highlighted areas on diagram

diagram 51171 51215A 51216A 51961 51961 51961 51961 51962 51962 51962 51963 51963 51963 51963 51963 9017012018 9017012018 9017014011 9017014011 9111271455 9111271455 9111271455 9111271455 9111271455 9111271455 9116271250 9116271260 9411551400 9411551400 9451201200 9451201200 9451201400 9451201400 9451201400 9451201400 9451201400 9451201400
Part # Description Qty Price
51961 - HOOK, NO.1
51961-36030

BU88,9#

 1
51961 - HOOK, NO.1
51961-36030

BU88,9#

 1
51961 - HOOK, NO.1
51961-36030

BU88,9#

 1
51961 - HOOK, NO.1
51961-36030

BU88,9#

 1
51962 - HOOK, NO.2
51961-36020

BU8#,9#

 1
51962 - HOOK, NO.2
51961-36020

BU8#,9#

 1
51962 - HOOK, NO.2
51961-36020

BU8#,9#

 1
Common parts
90170-12018
90170-14011
91112-71455
91162-71250
91162-71260
94115-51400
94512-01200
94512-01400
