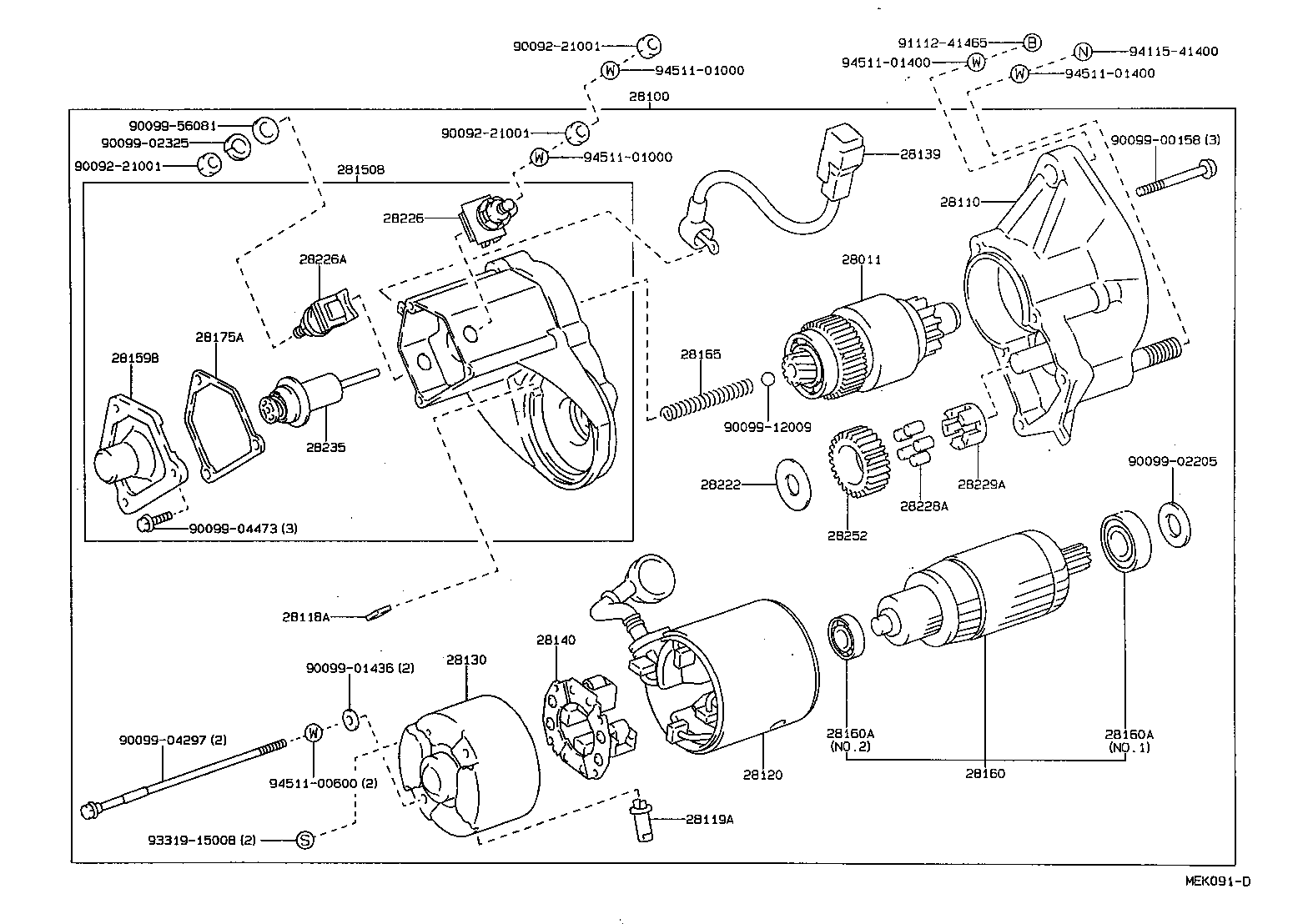

BU91R-MDDT (1988)
Toyota Dyna 200
(8808- )
12V 2.5KW,24V 4.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56231 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# 12V 2.5KW |
1 | ||
| 28100-56232 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# 12V 2.5KW |
1 | ||
| 28100-56250 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# 12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-56150 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28118A - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-77090 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56231 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-56080 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28130-56250 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-56250 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28139-56220 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28139-56230 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-56160 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-47040 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,11B,14B#..BU6#,70,8#,9# NO.1 |
1 | ||
| 90099-10107 |
B,11B,14B#..BU6#,70,8#,9# NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,11B,14B#..BU6#,70,8#,9# NO.1 |
1 | ||
| 90099-10107 |
B,11B,14B#..BU6#,70,8#,9# NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-56310 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54250 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28226-56260 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28226-54250 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 28226-54220 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
B,11B,14B#..BU6#,70,8#,9# |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-01436 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90099-56081 | ||||
| 91112-41465 | ||||
| 93319-15008 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
