BU91R-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

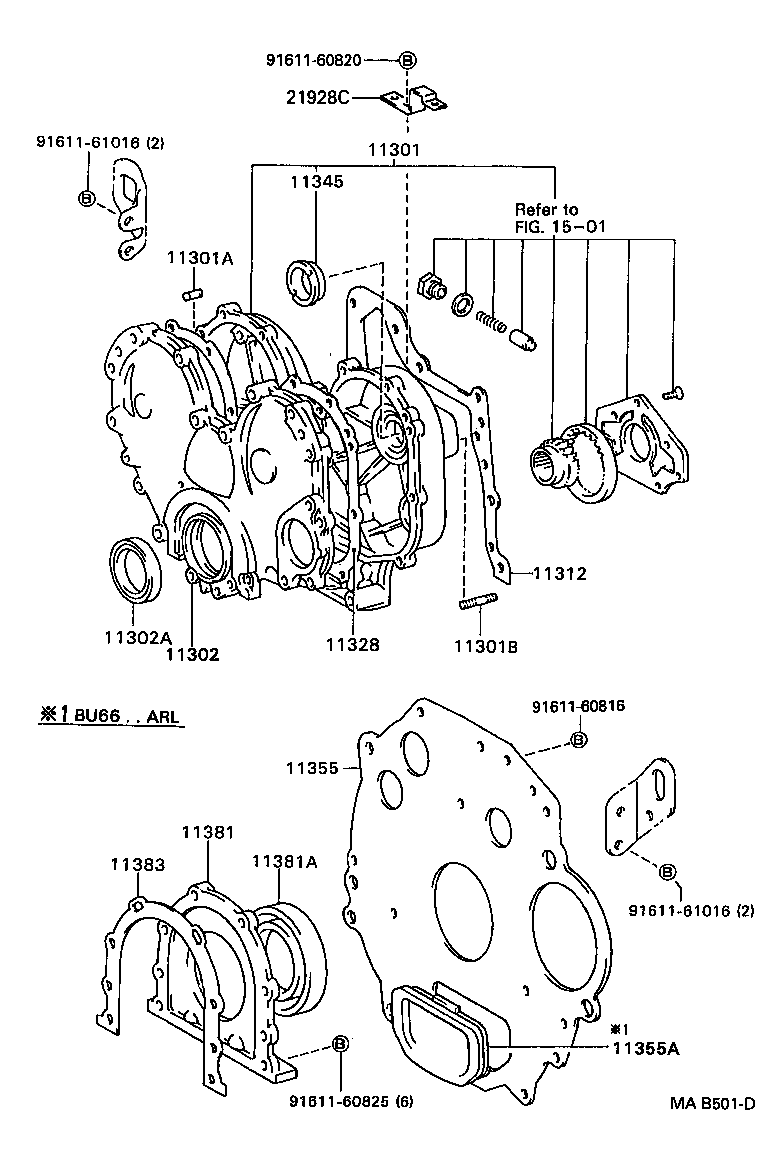

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11355A 11381 11381A 11383 1501 21928C 9161160816 9161160820 9161160825 9161161016 9161161016
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56080

B,11B,14B..BU6#,70,8#,9#

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,11B,14B#..BU6#,70,8#,9#

L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-08169

B,11B,14B#..BU6#,70,8#,9#

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-56060

14B..BU66,88,91,96..(ARL,GEN)..(CBU,IV3)

 1
11302-56070

14B..BU91..GEN,SA;B,11B,14B..BU6#,70,8#,94,96

 1
11302-56061

11B..BU65..ARL;14B..BU66..T3..TB;B,14B..BU60,91..T3..GEN;B,11B,14B..BU61,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)

W(POWER STEERING)

 1
11302-56071

14B..BU91..GEN,SA;14B..BU66..T3..TB;B,11B,14B..BU60,61,65,67,70,8#,94,96

 1
11302-56070

14B..BU91..GEN,SA;B,11B,14B..BU6#,70,8#,94,96

 1
11302-56060

11B..BU65..ARL;B,14B..BU60,91..T3..GEN;B,11B,14B..BU61,66,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)

W(POWER STEERING)

 1
11302-56060

11B..BU65..ARL;B,14B..BU60,91..T3..GEN;B,11B,14B..BU61,66,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)

W(POWER STEERING)

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50013

B,11B,14B#..BU6#,70,8#,9#

 1
11312 - GASKET, FRONT END PLATE
11312-56040

B,11B,14B#..BU6#,70,8#,9#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-56050

B,11B,14B#..BU6#,70,8#,9#

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B,11B,14B#..BU6#,70,8#,9#

 1
11355 - PLATE, REAR END
11355-56060

B,11B,14B..BU6#,70,8#,9#..5F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56032

B,11B,14B..BU6#,70,8#,9#

 1
11381-56033

B,11B,14B#..BU6#,70,8#,9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95008

B,11B,14B#..BU6#,70,8#,9#

 1
90311-95008

B,11B,14B..BU6#,70,8#,9#

 1
90311-95010

B,11B,14B#..BU6#,70,8#,9#

 1
90311-95005

B,11B,14B..BU6#,70,8#,9#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56040

B,11B,14B#..BU6#,70,8#,9#

 1
Common parts
91611-60816
91611-60820
91611-60825
91611-61016
Linked diagrams
1501

(8808- )

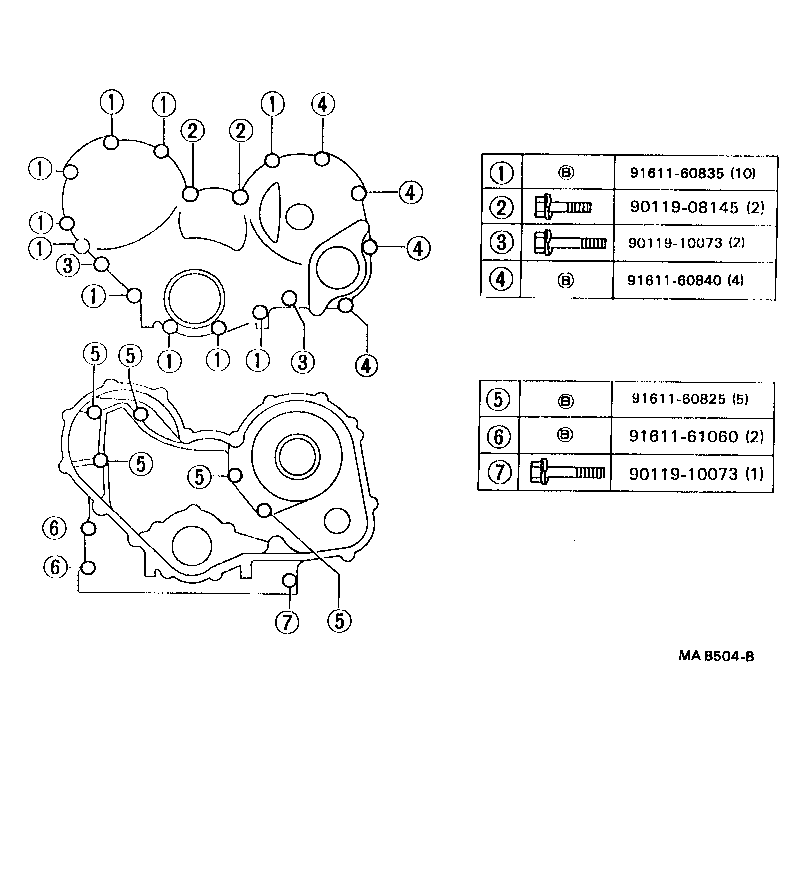

Click highlighted areas on diagram

diagram 9011908145 9011910073 9011910073 9161160825 9161160835 9161160840 9161161060
Part # Description Qty Price
Common parts
90119-08145
90119-10073
91611-60825
91611-60835
91611-60840
91611-61060
