BU91L-MDDTX3 (1990)
Toyota Dyna 200
Production
Apr 1990
-
May 1993
Engine
14BT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9004-9305)14BT

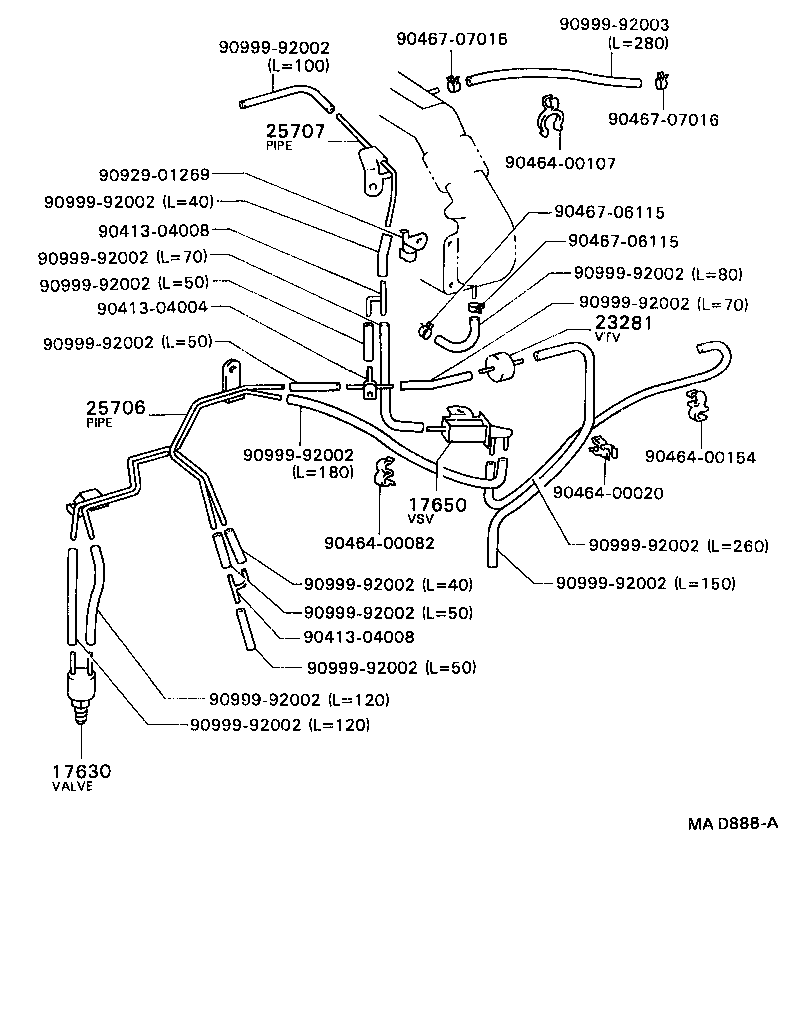

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
14BT..BU91,96 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12105 |
14BT..BU91,96 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
14BT..BU91,96 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-58030 |
14BT..BU91,96 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-58030 |
14BT..BU91,96 |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90464-00020 | ||||
| 90464-00082 | ||||
| 90464-00107 | ||||
| 90464-00154 | ||||
| 90467-06115 | ||||
| 90467-07016 | ||||
| 90929-01269 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
